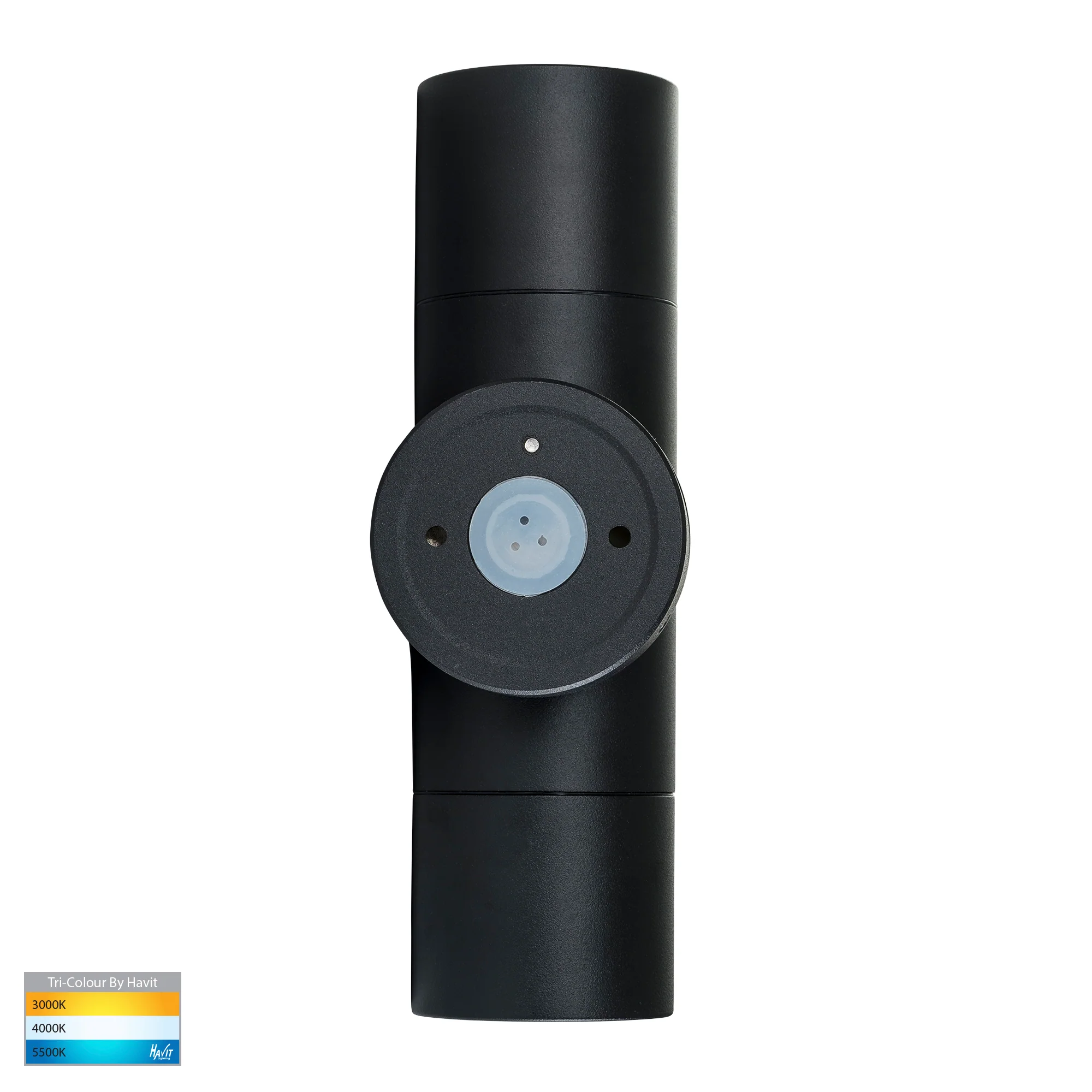

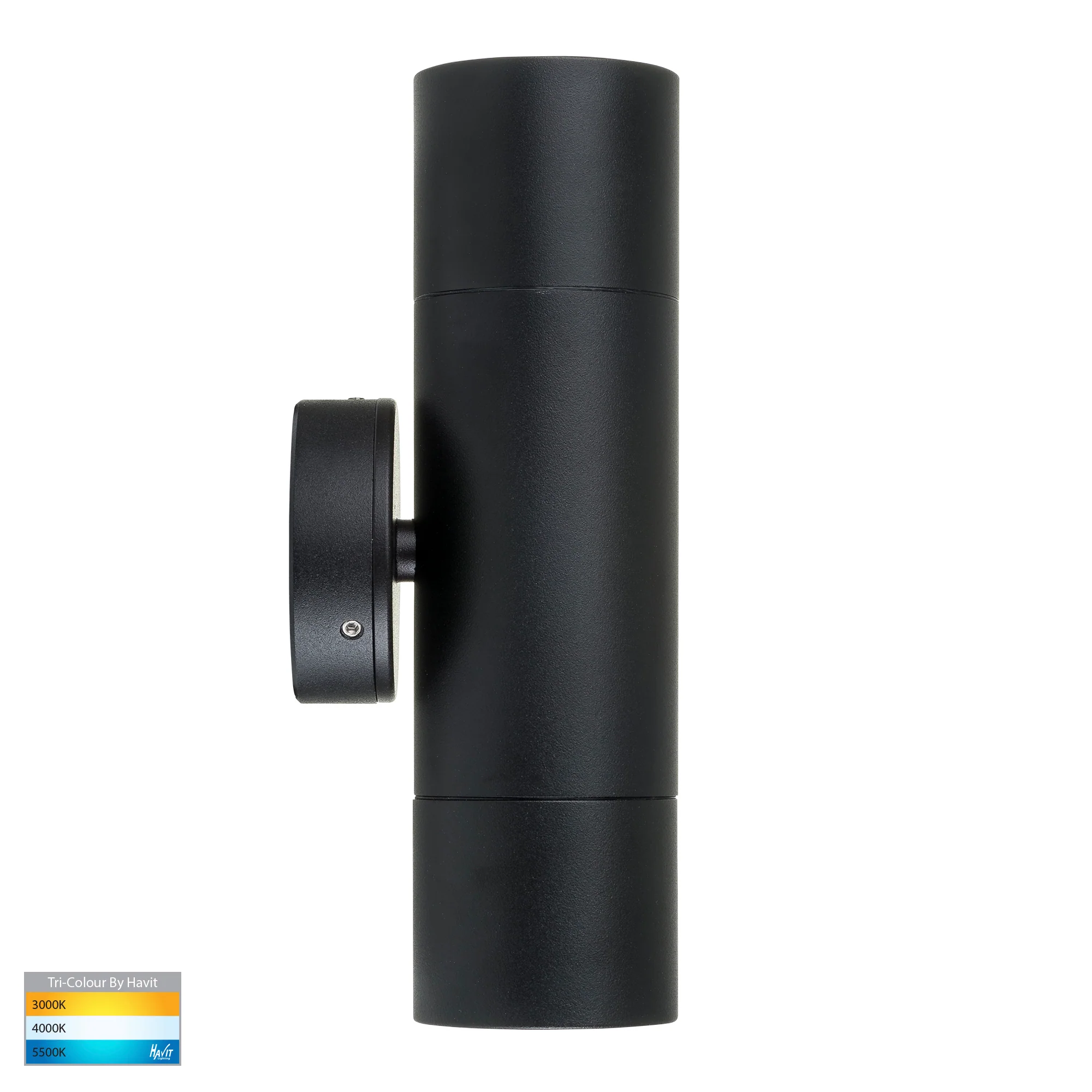

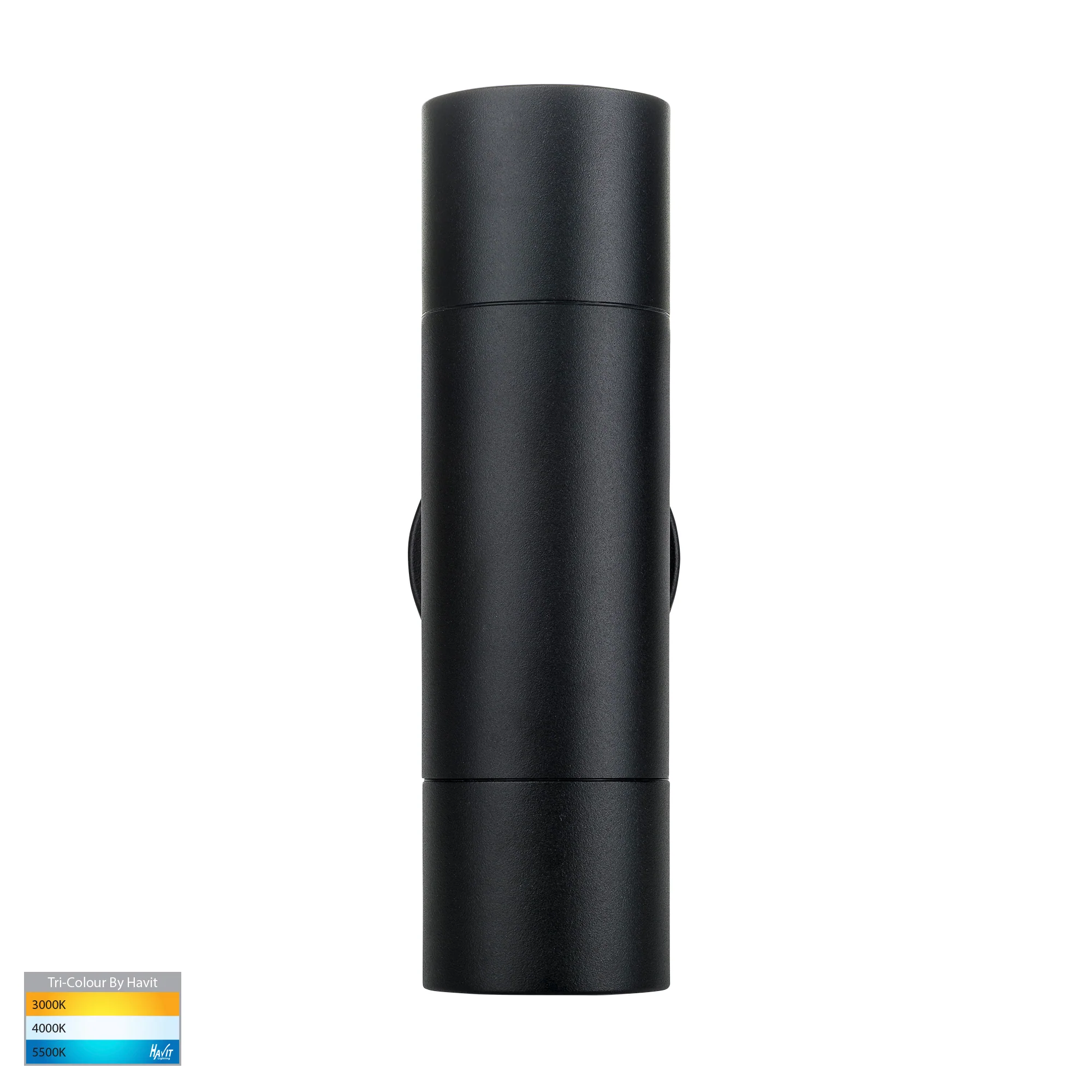

HV1025T-HV1027T - Tivah Black TRI Colour Up & Down Wall Pillar Lights

• Tivah Up & Down Wall Pillar Light
• Aluminium Poly Powder Coated Black

• Matching Backing Plate with Stainless Steel Grub Screws

• High Output Reflector To Maximise Light
• Triac Dimmable (HV1025T Only)
• TRI Colour - 3000k, 4000k + 5500k
• IP Rating: IP65
• Beam Angle (HV1025): 60 degrees
• Beam Angle (HV1027): 120 degrees
• Input Voltage: Available in either 240v AC or 12v DC
• 3 Years Replacement Warranty (items ordered after 01/01/22)

12v model must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV1025T	3000k 4000k 5500k	2x 240-560lm 2x 255-595lm 2x 270-630lm	2x 3/5/7w 240v GU10 LED	240v
HV1027GU10T	3000k 4000k 5500k	2x 270lm 2x 285lm 2x 300lm	2x 5w 240v GU10 LED	240v
HV1027MR16T	3000k 4000k 5500k	2x 270lm 2x 285lm 2x 300lm	2x 5w 12v DC MR16 LED	12v DC

Data Sheet

Data Sheet

IES Files

HV1025T IES Files

HV1027T IES Files

Install Sheet

HV1025T

HV1027GU10T

HV1027MR16T
