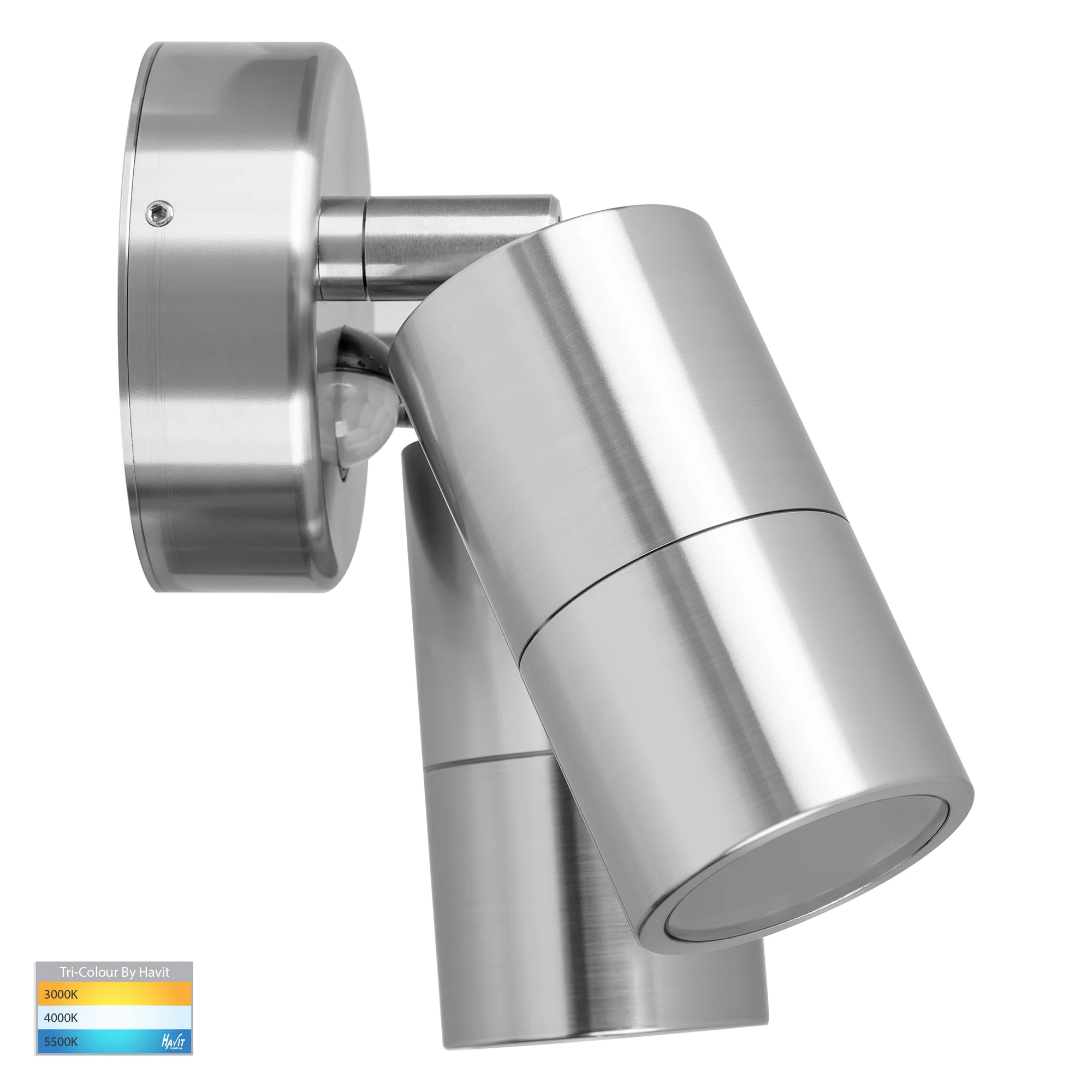

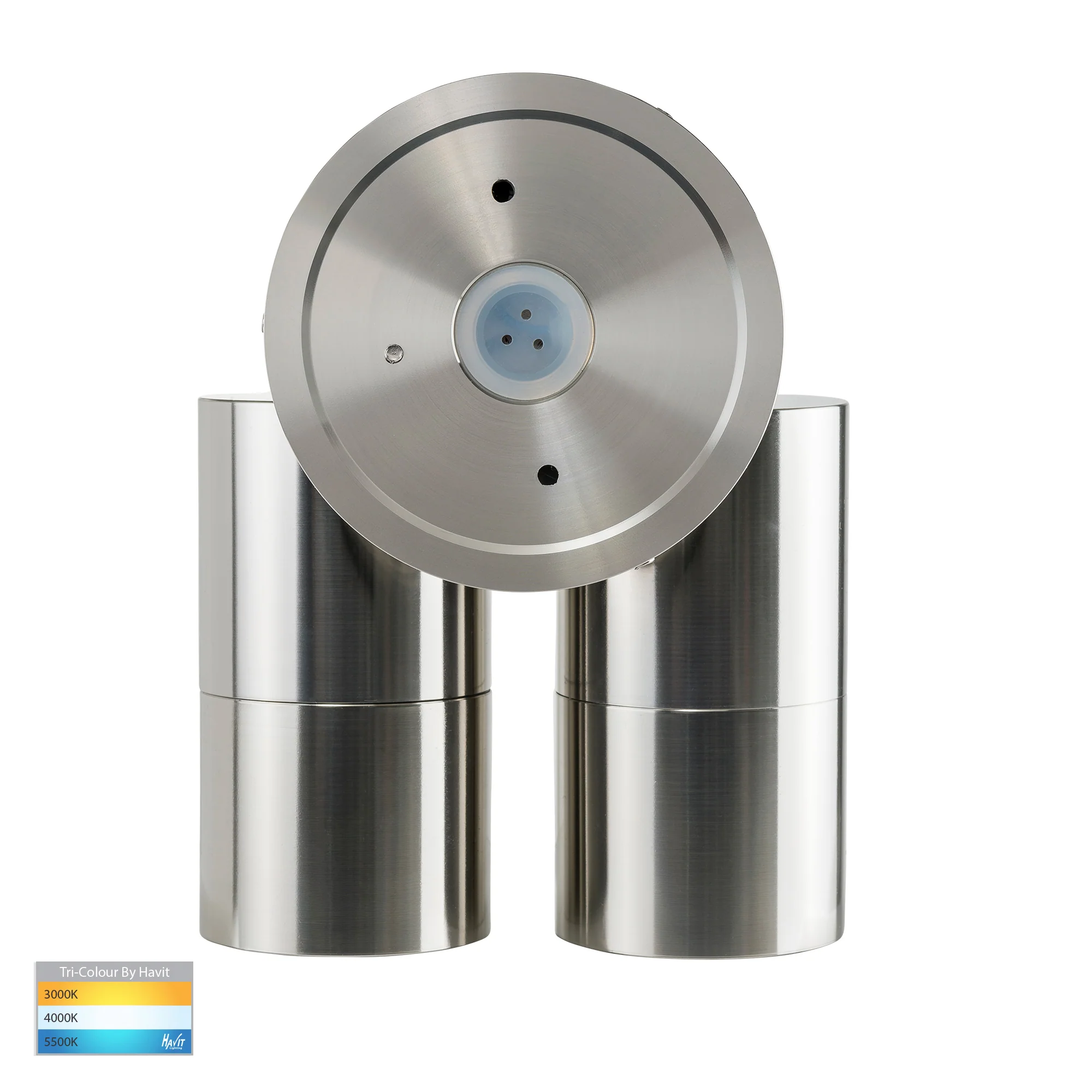

HV1305T-PIR | HV1306T-PIR - Tivah 316 Stainless Steel TRI Colour Double Adjustable Spot Lights with Sensor

• Tivah Double Adjustable Spot Lights with Sensor
• Stainless Steel 316 Marine Grade
• Matching Backing Plate with Stainless Steel Grub Screws

• 90° Tilt & 270° Swivel
• High Output Reflector To Maximise Light
• 120° Sensor Detection
• Up to 10m detection range
• Lux and time settings on sensor
• Manual override
• TRI Colour - 3000k, 4000k + 5500k
• IP Rating: IP65
• Input Voltage: 240v AC
• 3 Years Replacement Warranty (items ordered after 01/01/22)

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV1305T-PIR	3000k 4000k 5500k	2x 240-560lm 2x 255-595lm 2x 270-630lm	2x 3/5/7w 240v GU10 LED	240v
HV1306T-PIR	3000k 4000k 5500k	2x 1080lm 2x 1140lm 2x 1200lm	2x 12w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

HV1305T IES Files

HV1306T IES Files

Install Sheets

Installation Instructions

Sensor Instructions
