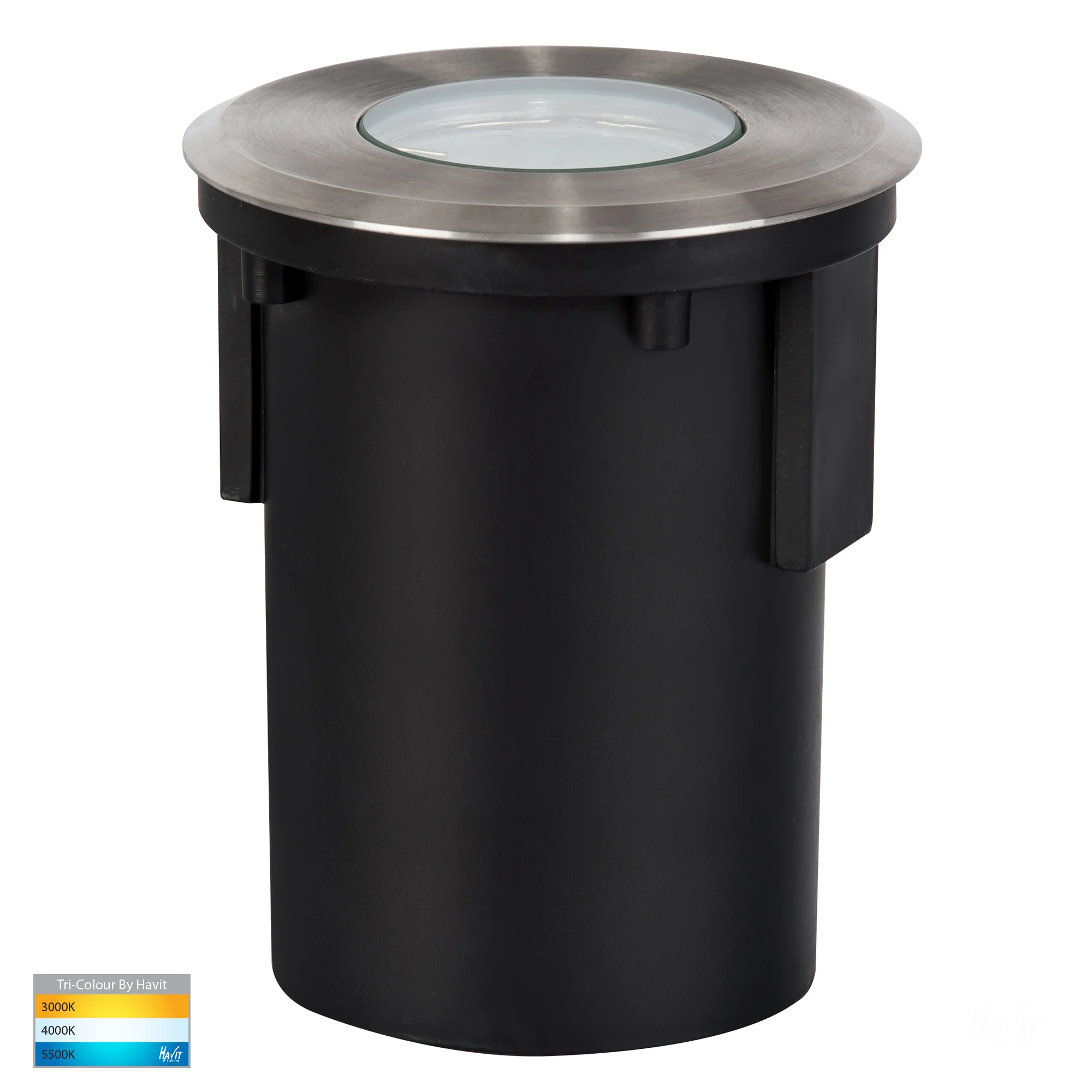

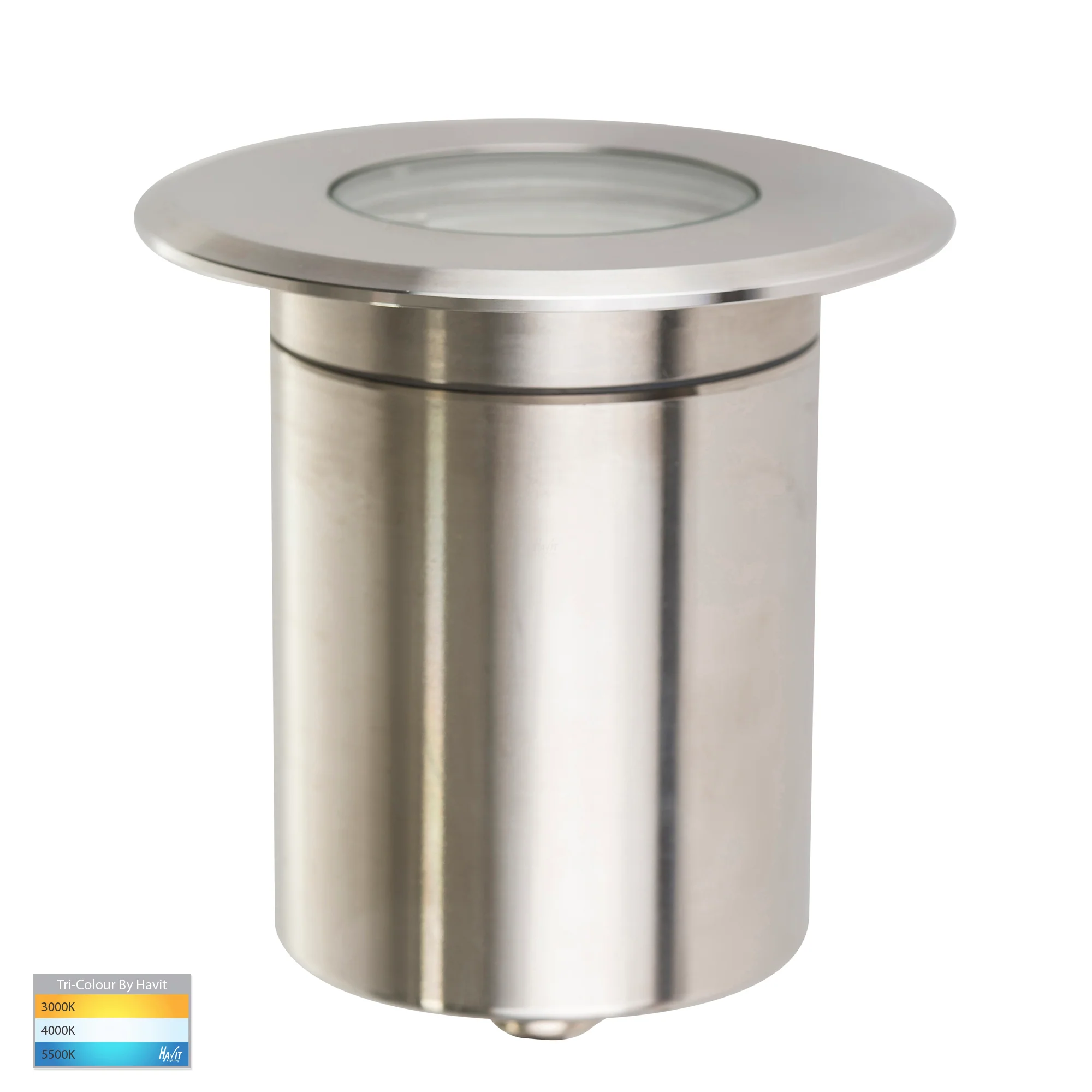

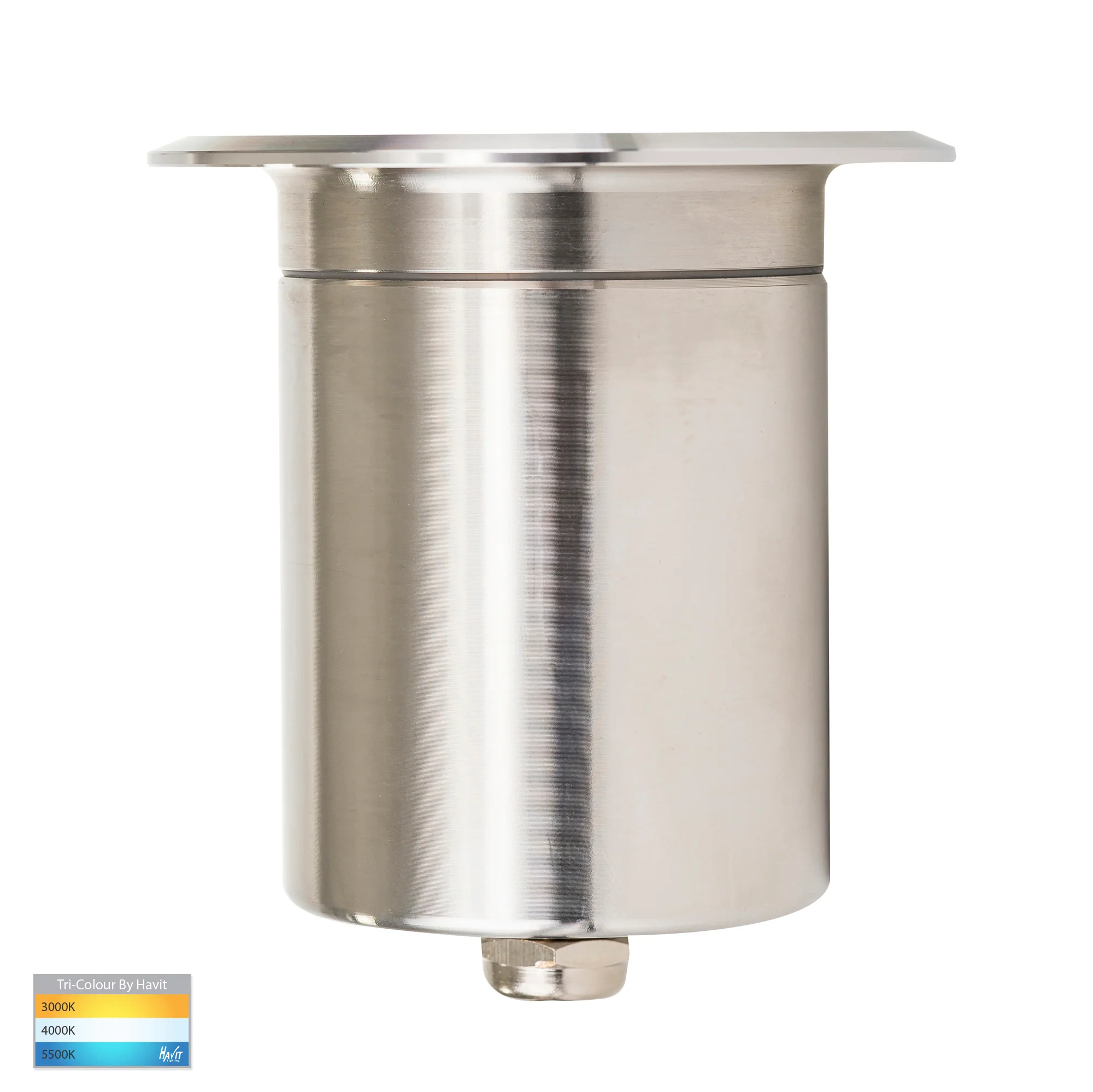

HV19022T-SS316 - HV19042T-SS316 - Ollo 316 Stainless Steel TRI Colour LED Step or Inground Light

• Recessed Wall or Inground Light
• 316 Stainless Steel Face
• Full Body Stainless Steel 316 Marine Grade

• Tempered Glass
• TRI Colour
• IP rating: IP65
• IK Rating: IK08
• Trafficable: 500kgs
• Installation Depth needed: 125mm
• Input Voltage: Available in either 240v AC or 12v DC
• 5w LED Globe
• 3 Years Replacement Warranty (items ordered after 01/01/22)

12V Models must be used with suitable 12v DC LED driver - View Here

Can be used with Honeycomb lens to achieve Anti Glare - View Here

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV19022T-SS316	3000k 4000k 5500k	270lm 285lm 300lm	5w 12v DC MR16 LED	12v DC
HV19042T-SS316	3000k 4000k 5500k	270lm 285lm 300lm	5w 240v GU10 LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
