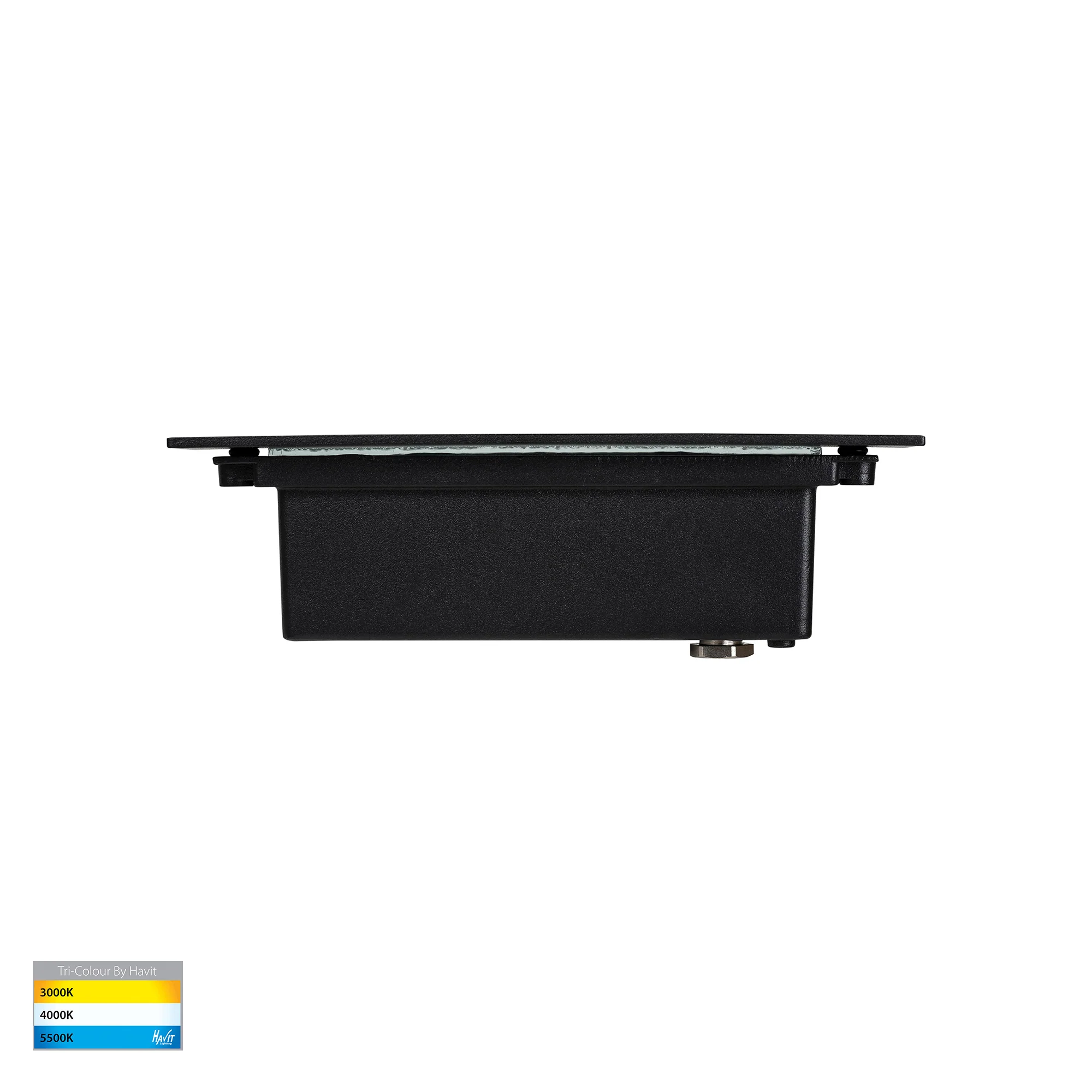

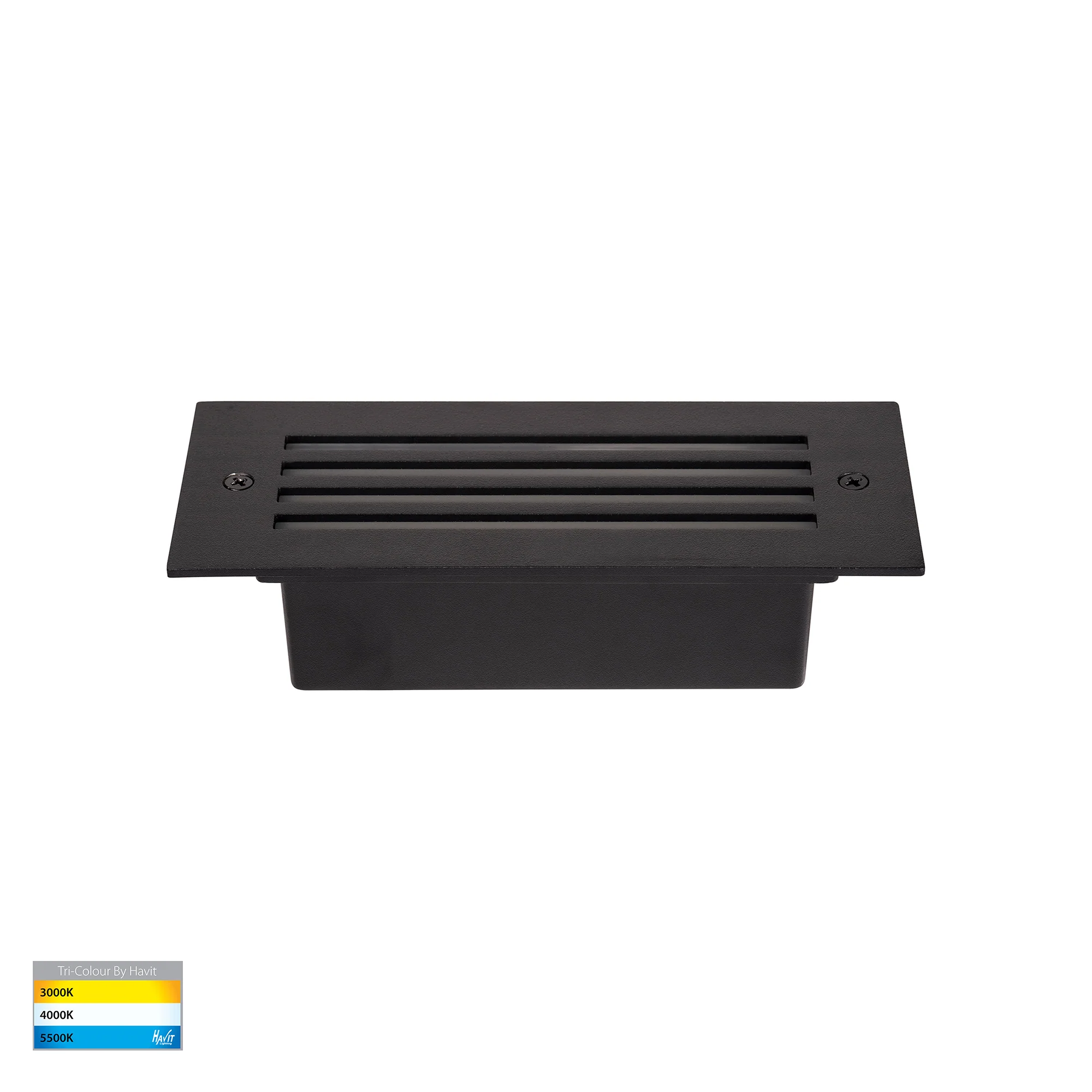

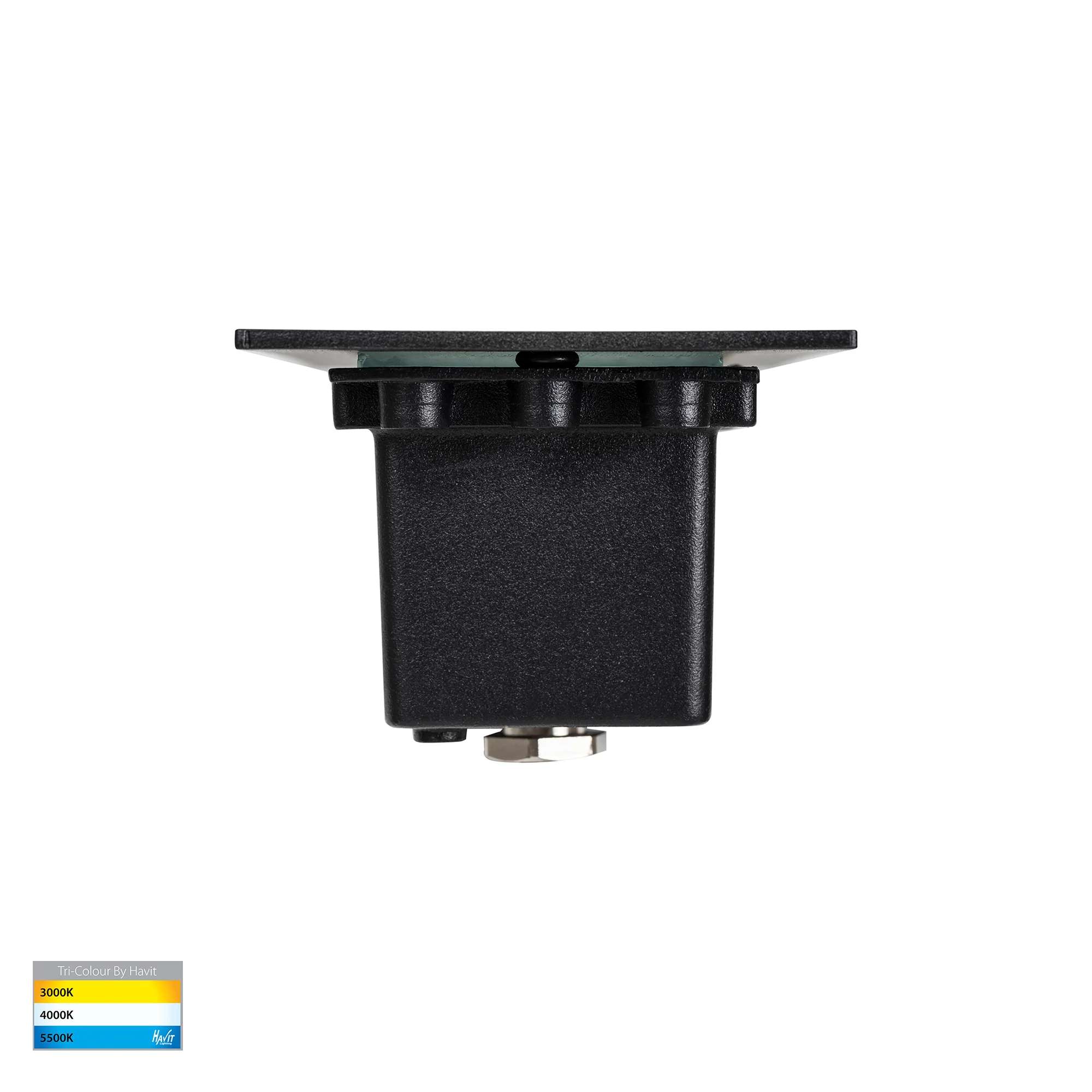

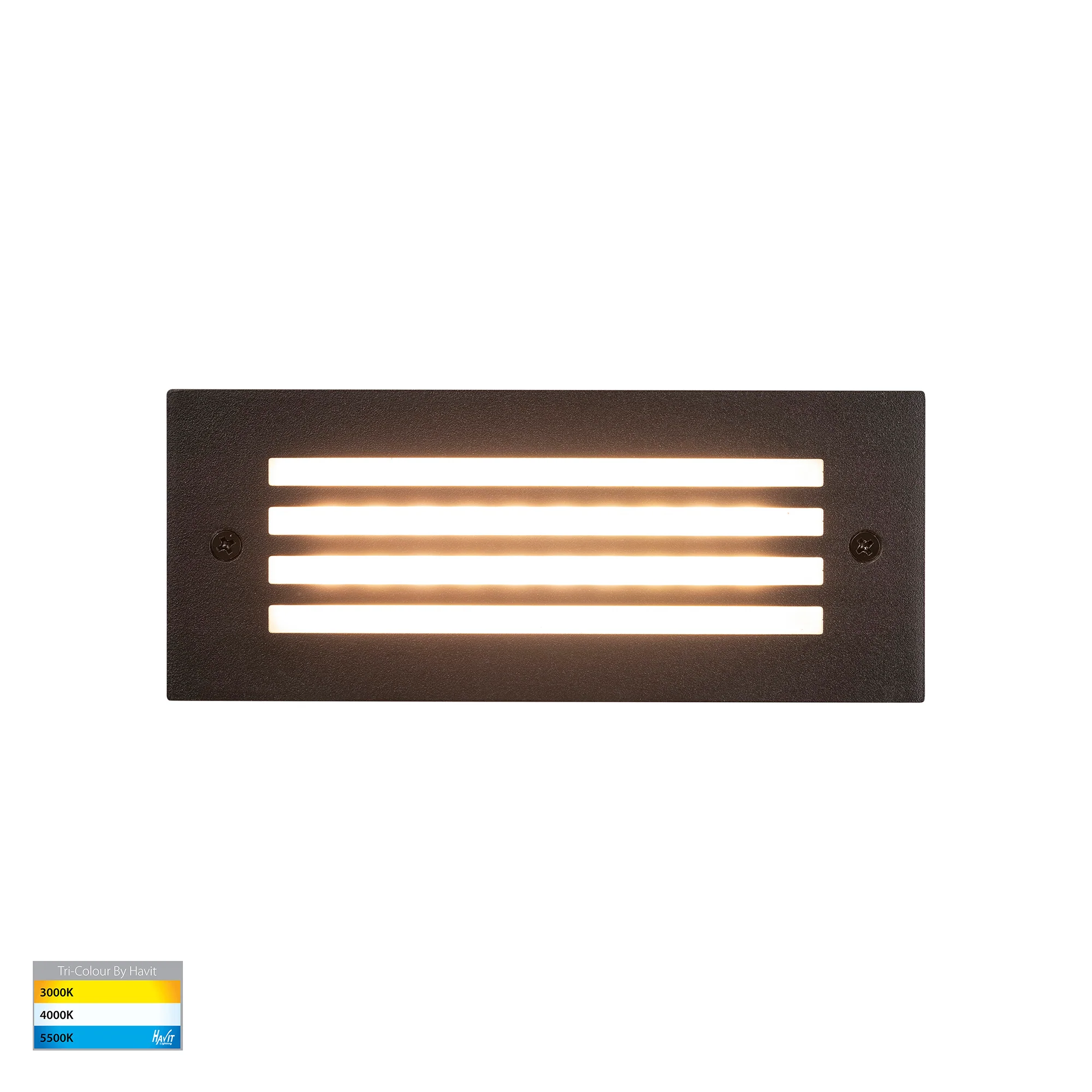

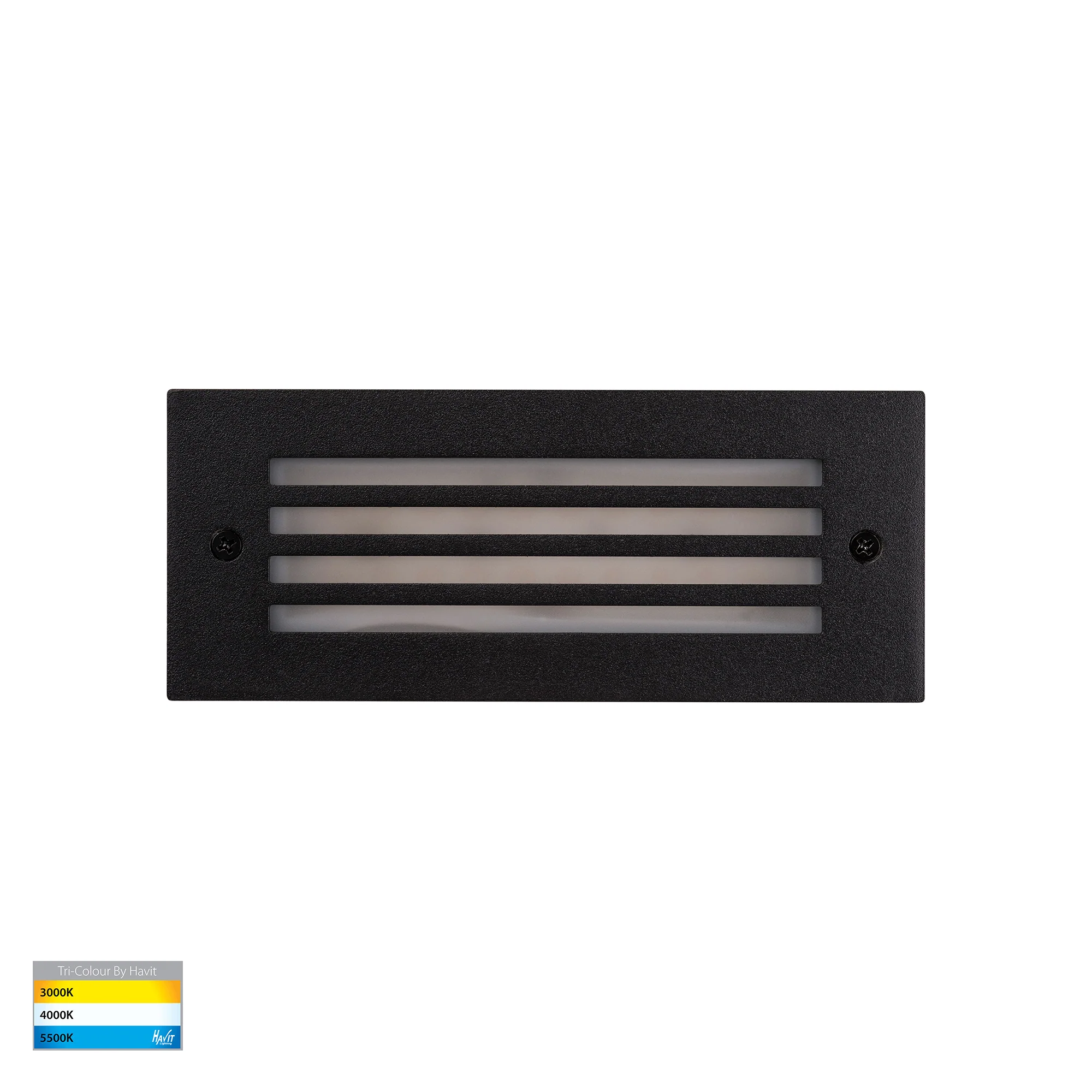

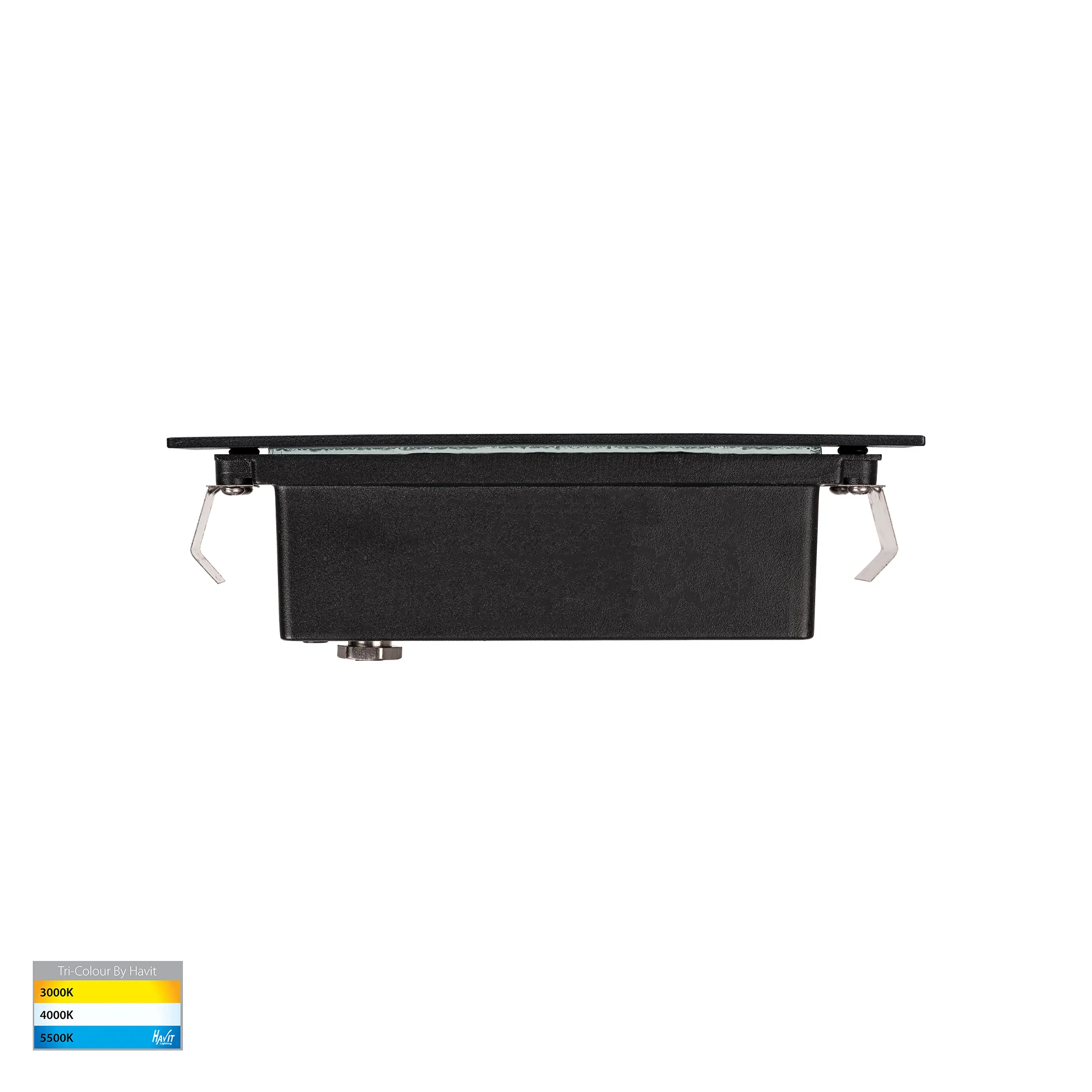

HV3006T-BLK-12V | HV3006T-BLK-240V - Bata Black 6w LED Brick Light

• Bata Recessed Brick light with grill face
• Stainless steel poly powder coated black face
• Powder coated die-cast aluminium body

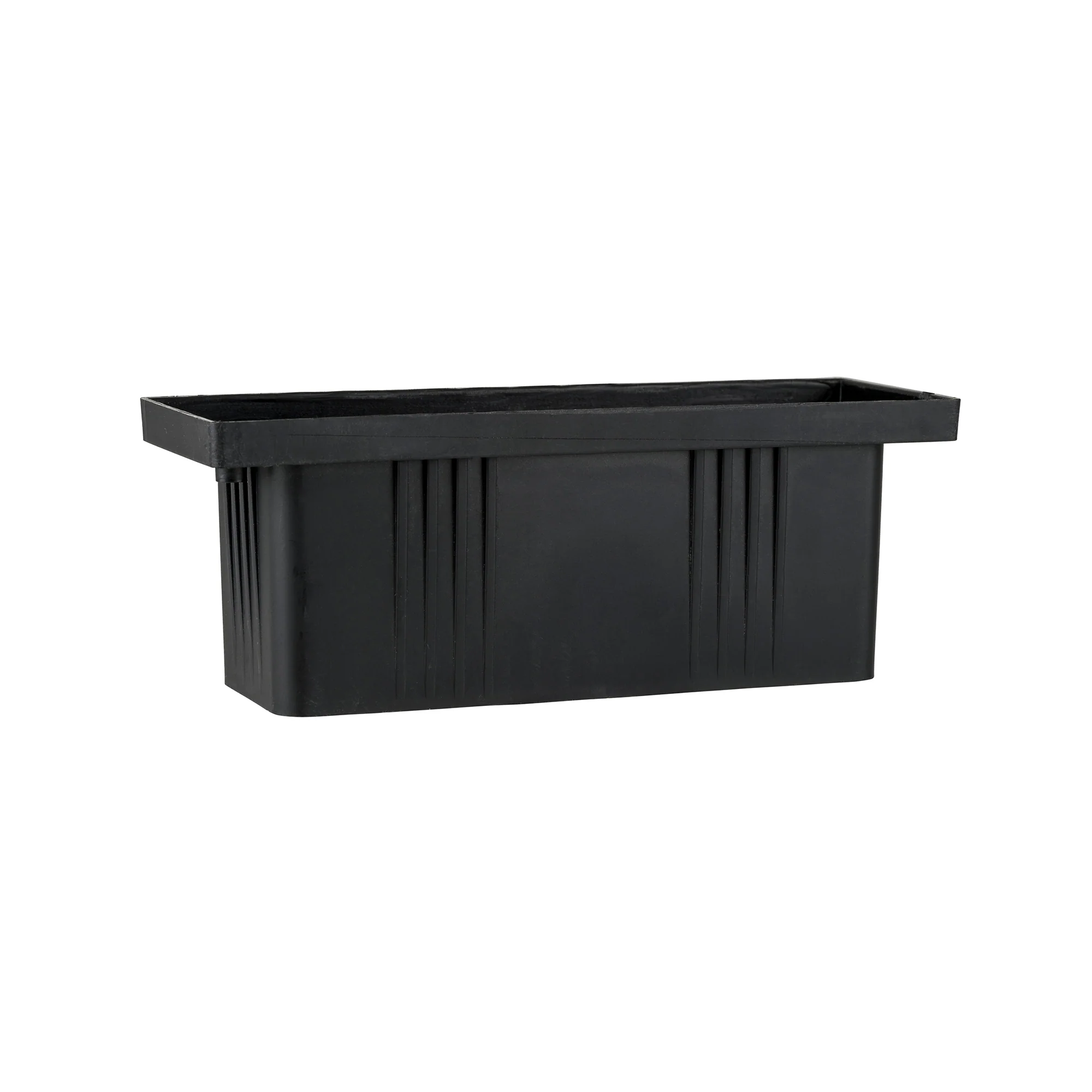

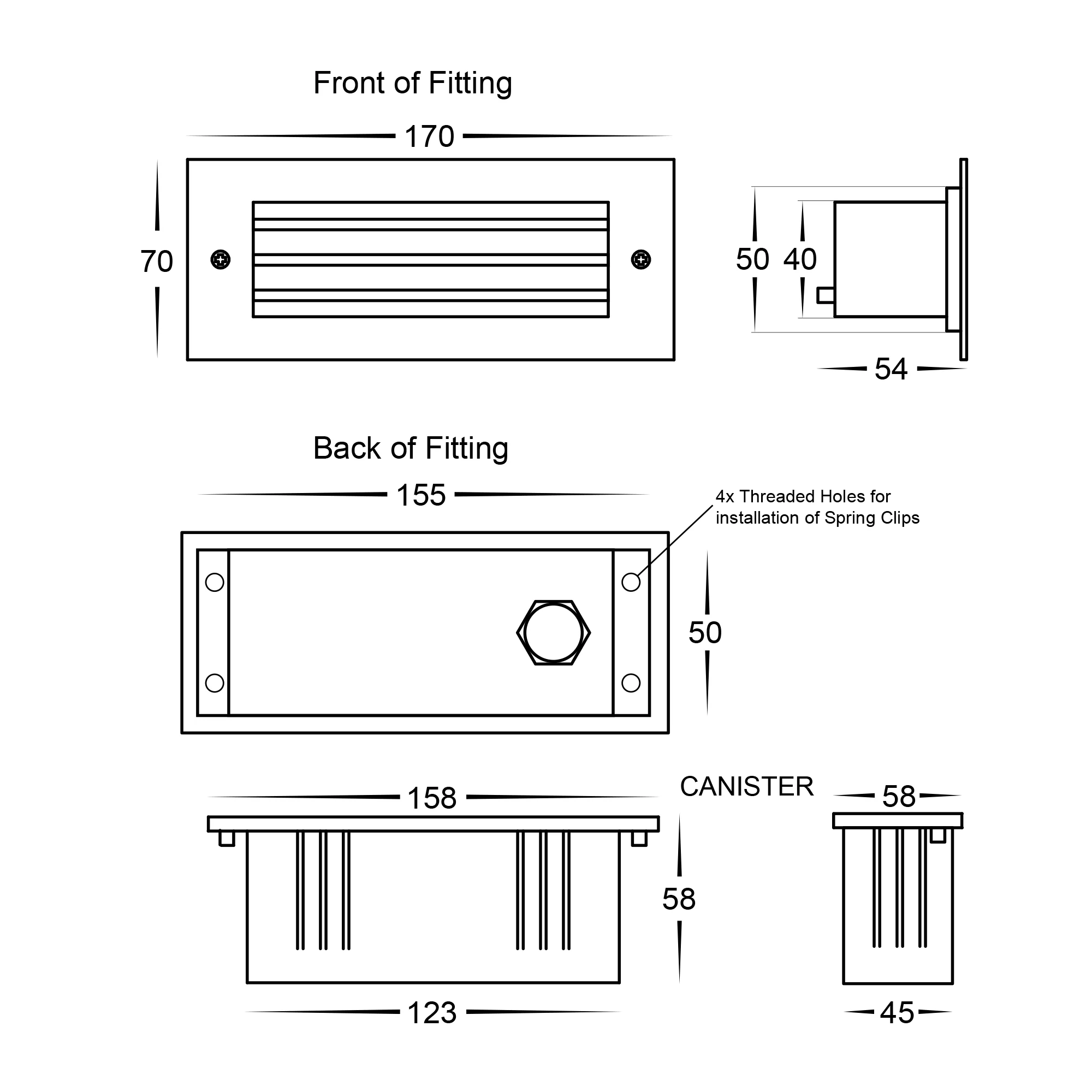

• Cutout with Canister: 159mm x 58mm
• Cutout Without Canister: 155mm x 50mm
• Installation Depth: 60mm
• Frosted tempered glass
• Tri Colour - 3000k, 4000k, 5500k

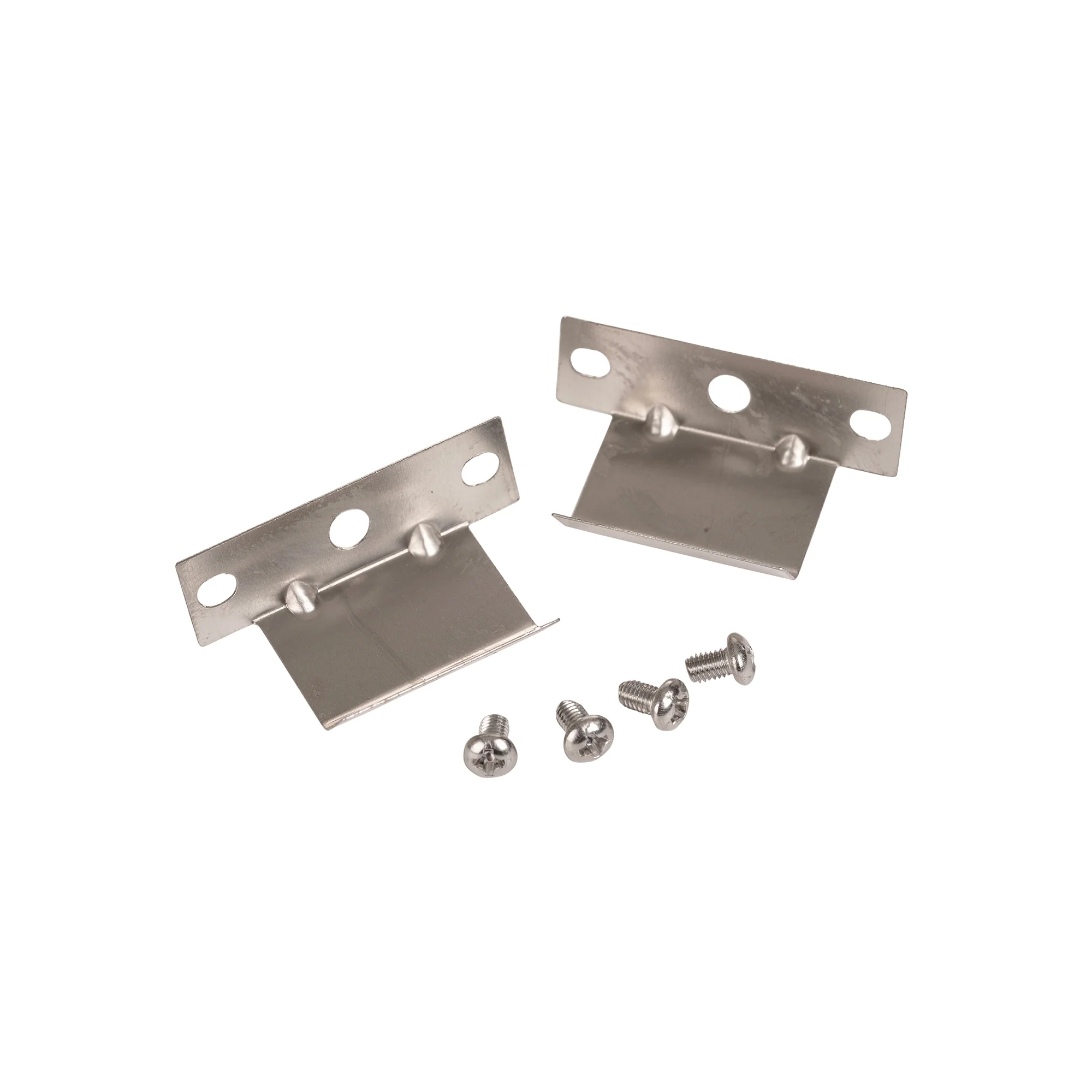

• Supplied with Clips for use in Gyprock Walls
• IP Rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• Replaceable LED Panels

• Built in 6w LED
• 3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3006T-BLK-12V	3000k 4000k 5500k	480lm 510lm 540lm	6w 12v DC Built in LED	12v DC
HV3006T-BLK-240V	3000k 4000k 5500k	480lm 510lm 540lm	6w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
