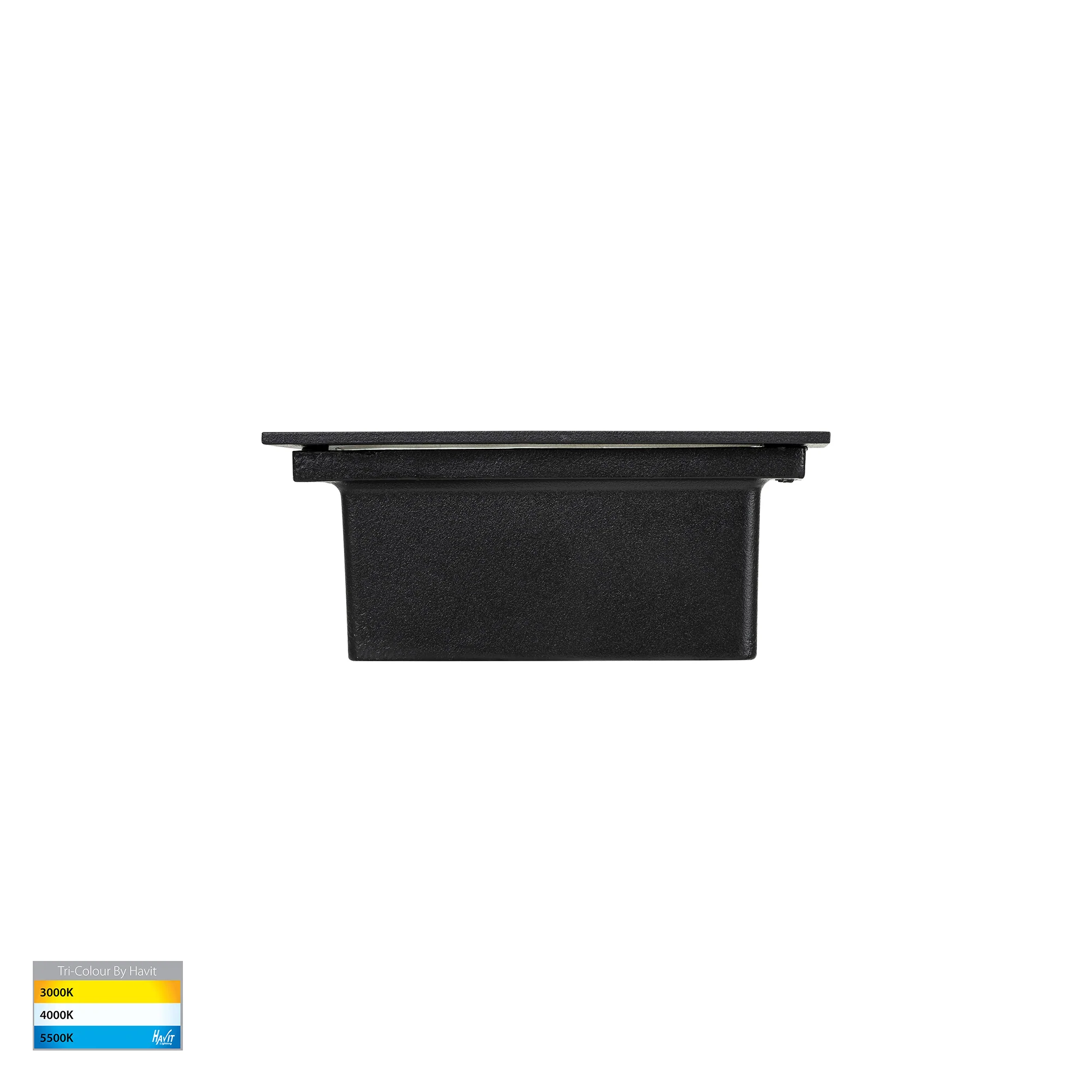

HV3008T-BLK-12V | HV3008T-BLK-240V - Bata Black 3w LED Brick Light

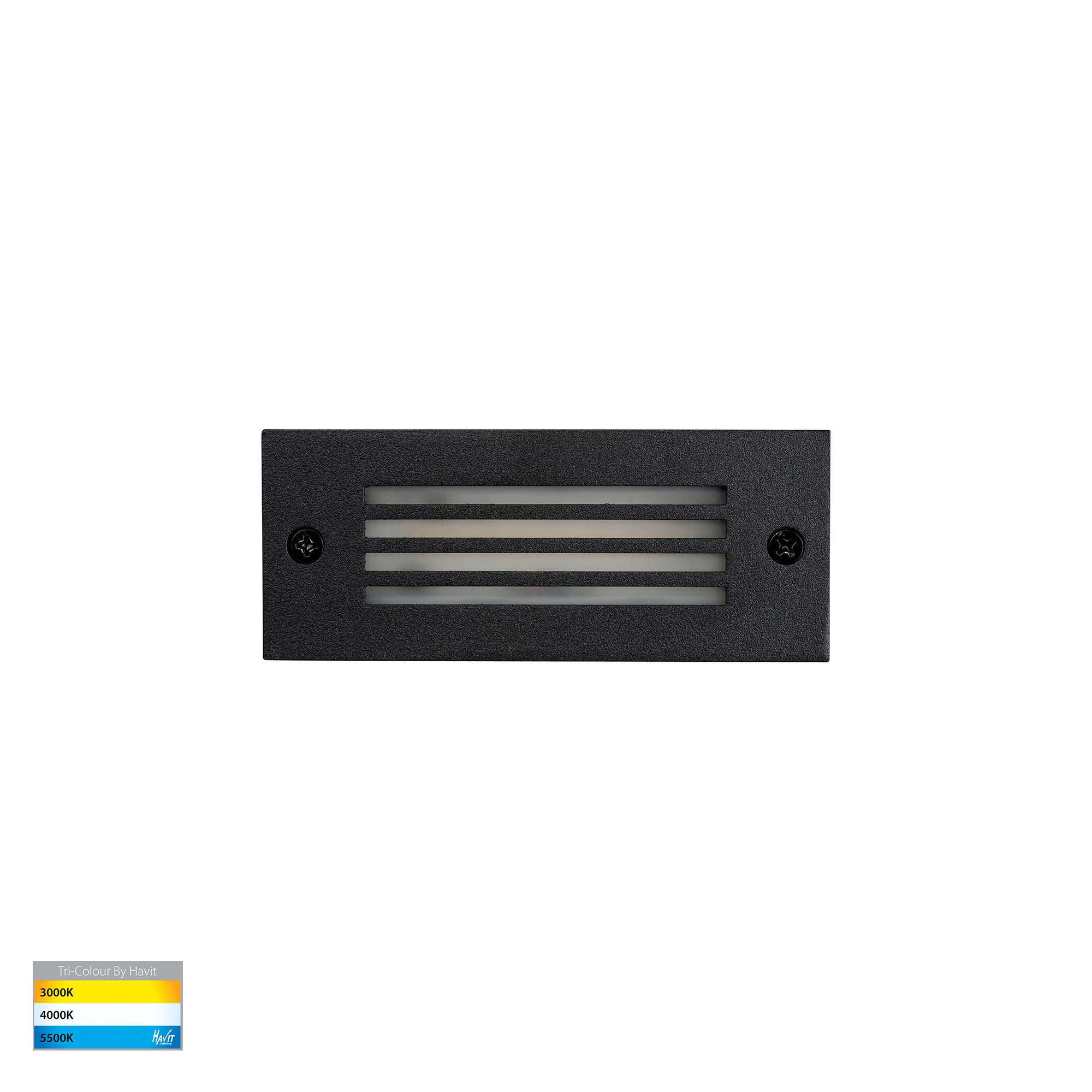

• Bata Recessed Brick light with grill face
• Stainless Steel Poly Powder Coated Black Cover
• Powder coated die-cast aluminium body

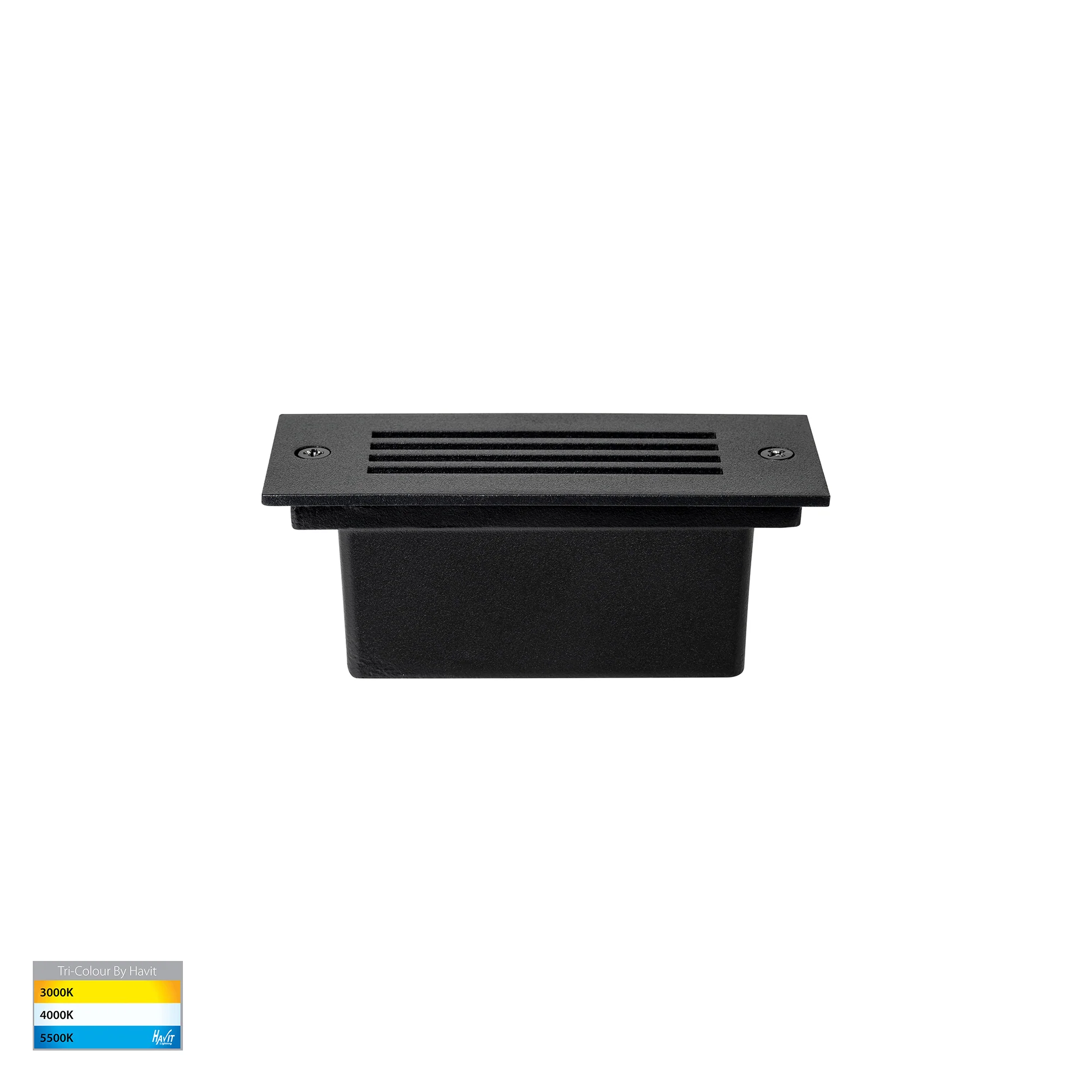

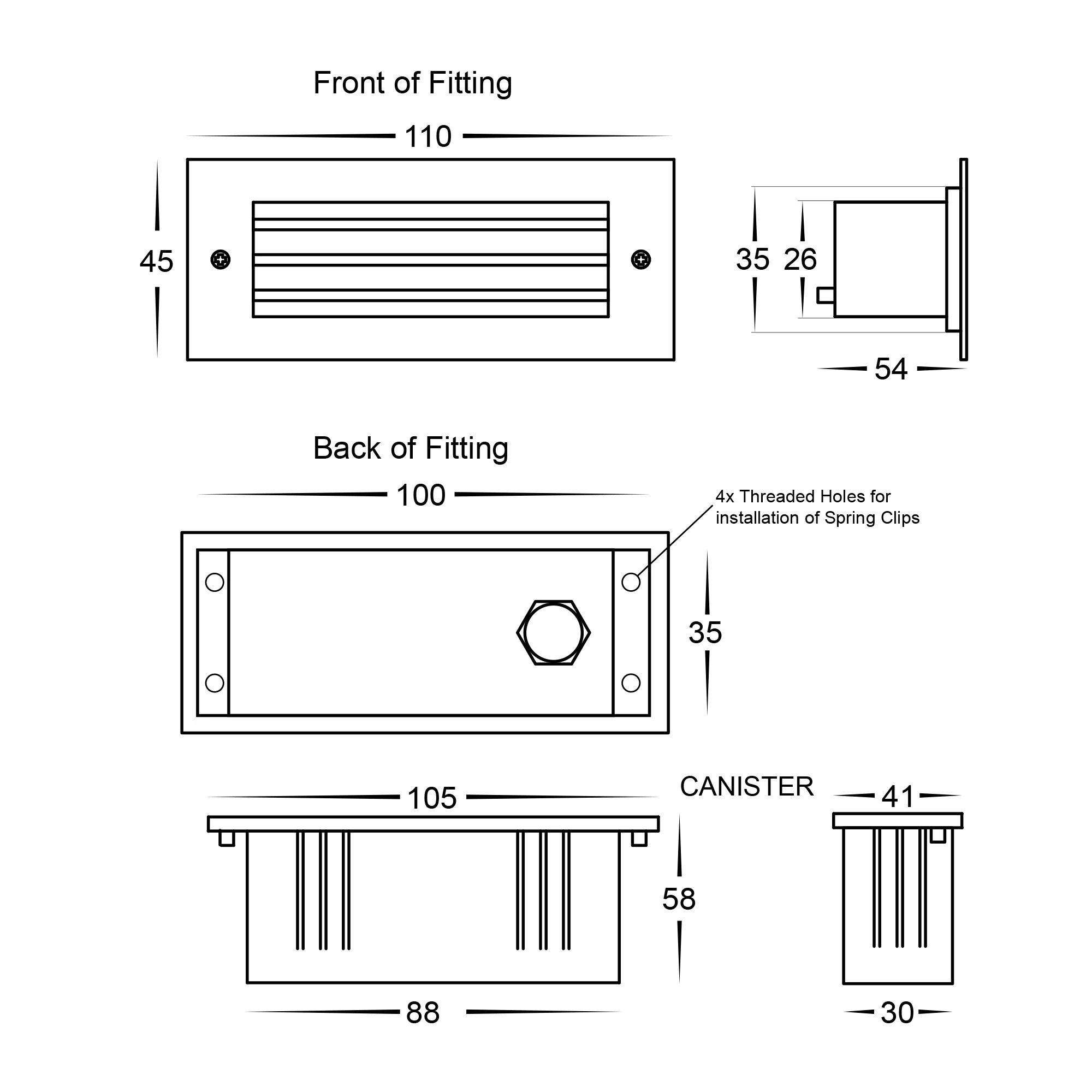

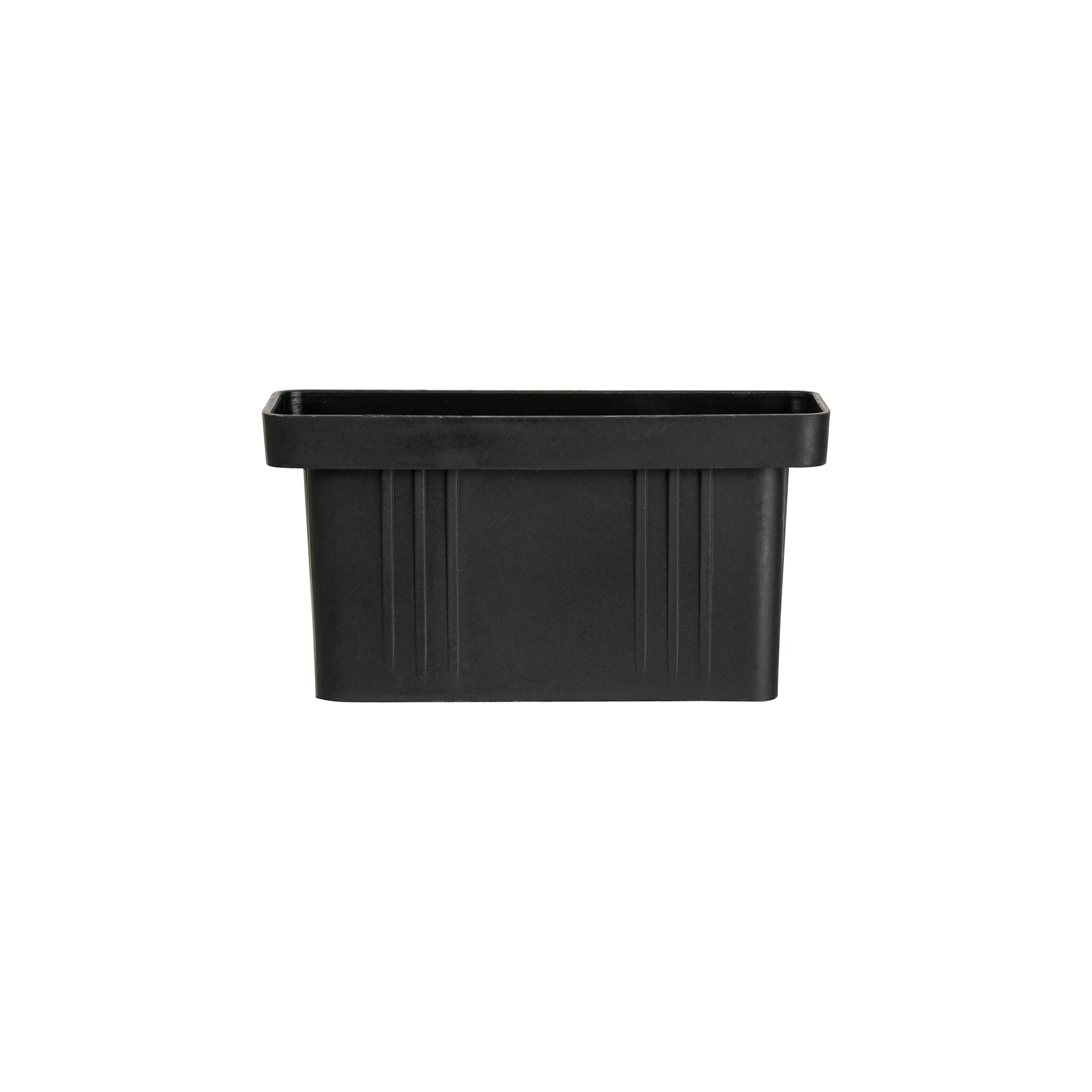

• Cutout with Canister: 105mm x 41mm
• Cutout without Canister: 103mm x 35mm
• Installation Depth: 58mm
• Frosted tempered glass

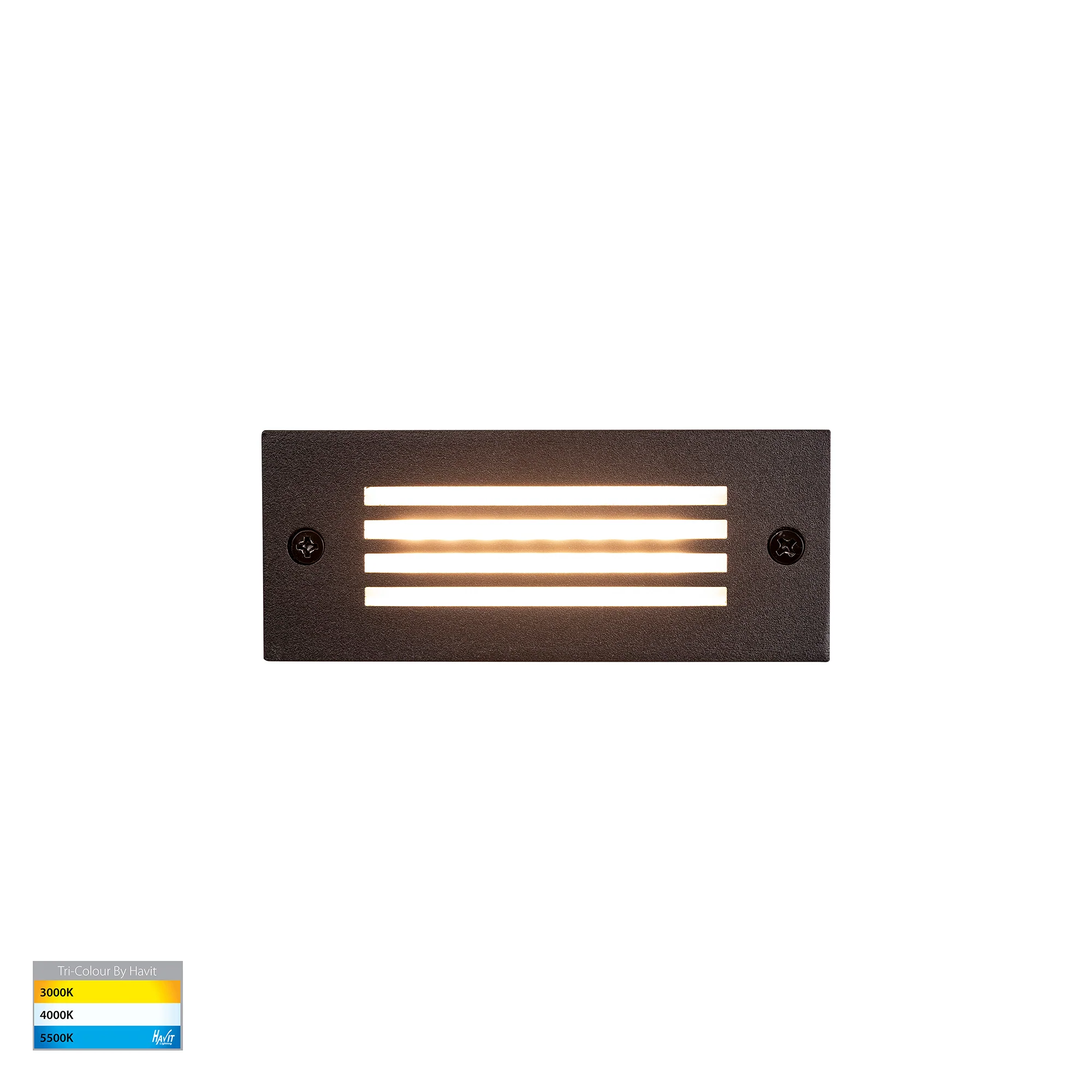

• Tri Colour - 3000k, 4000k, 5500k

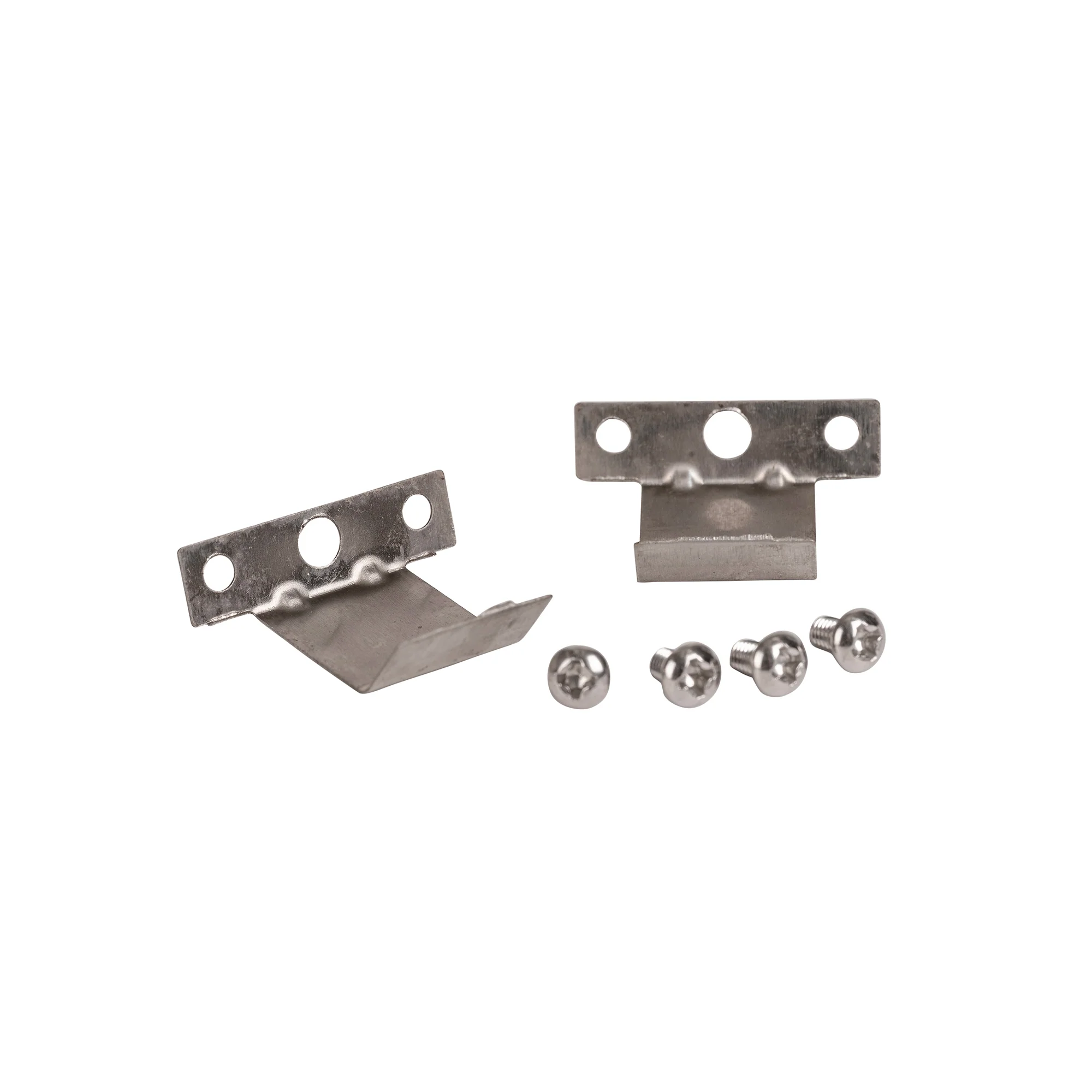

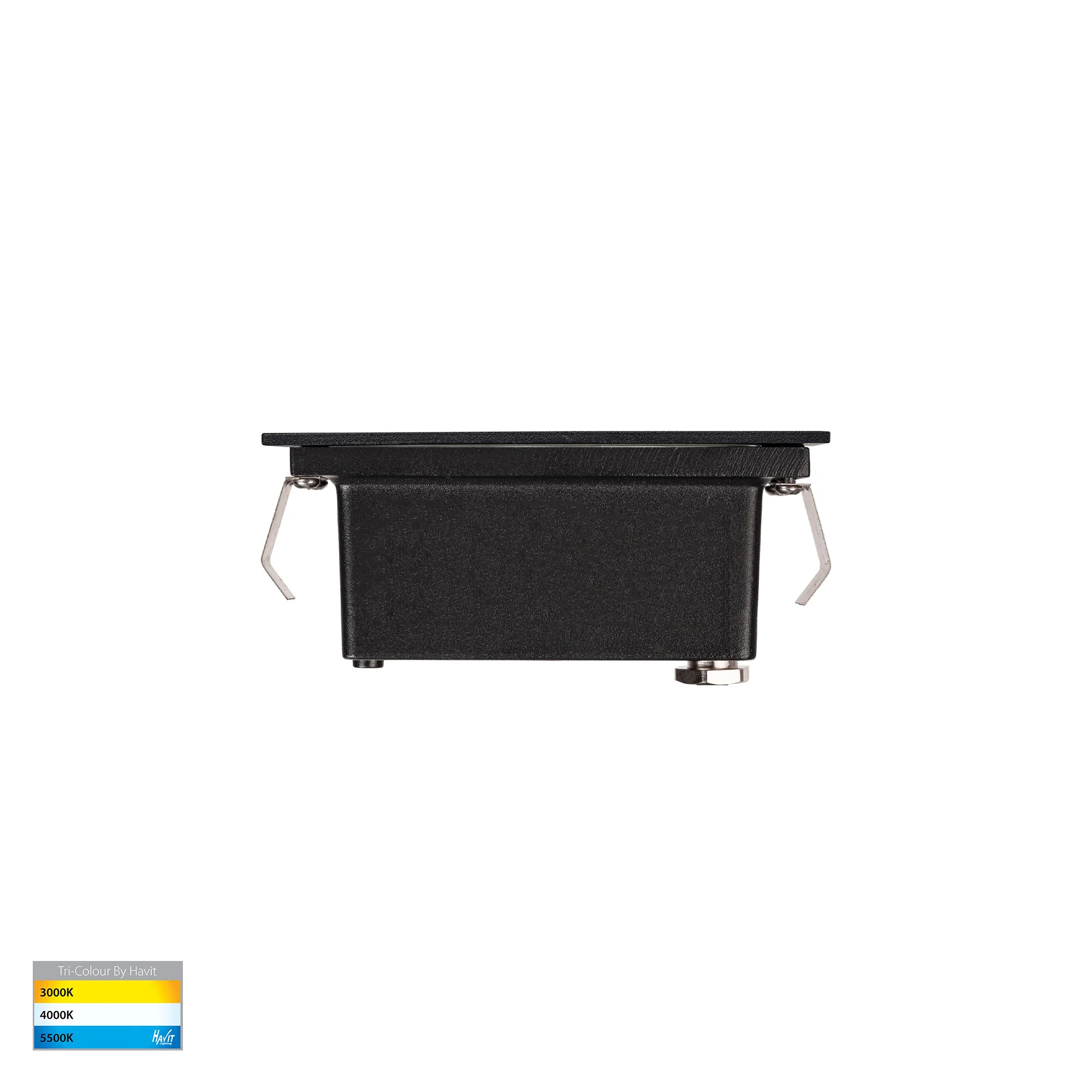

• Supplied with Clips for use in Gyprock Walls

• IP Rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• Replaceable LED Panels

• Built in 3w LED
• 3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3008T-BLK-12V	3000k 4000k 5500k	240lm 255lm 270lm	3w 12v DC Built in LED	12v DC
HV3008T-BLK-240V	3000k 4000k 5500k	240lm 255lm 270lm	3w 240V Built in LED	240v AC
