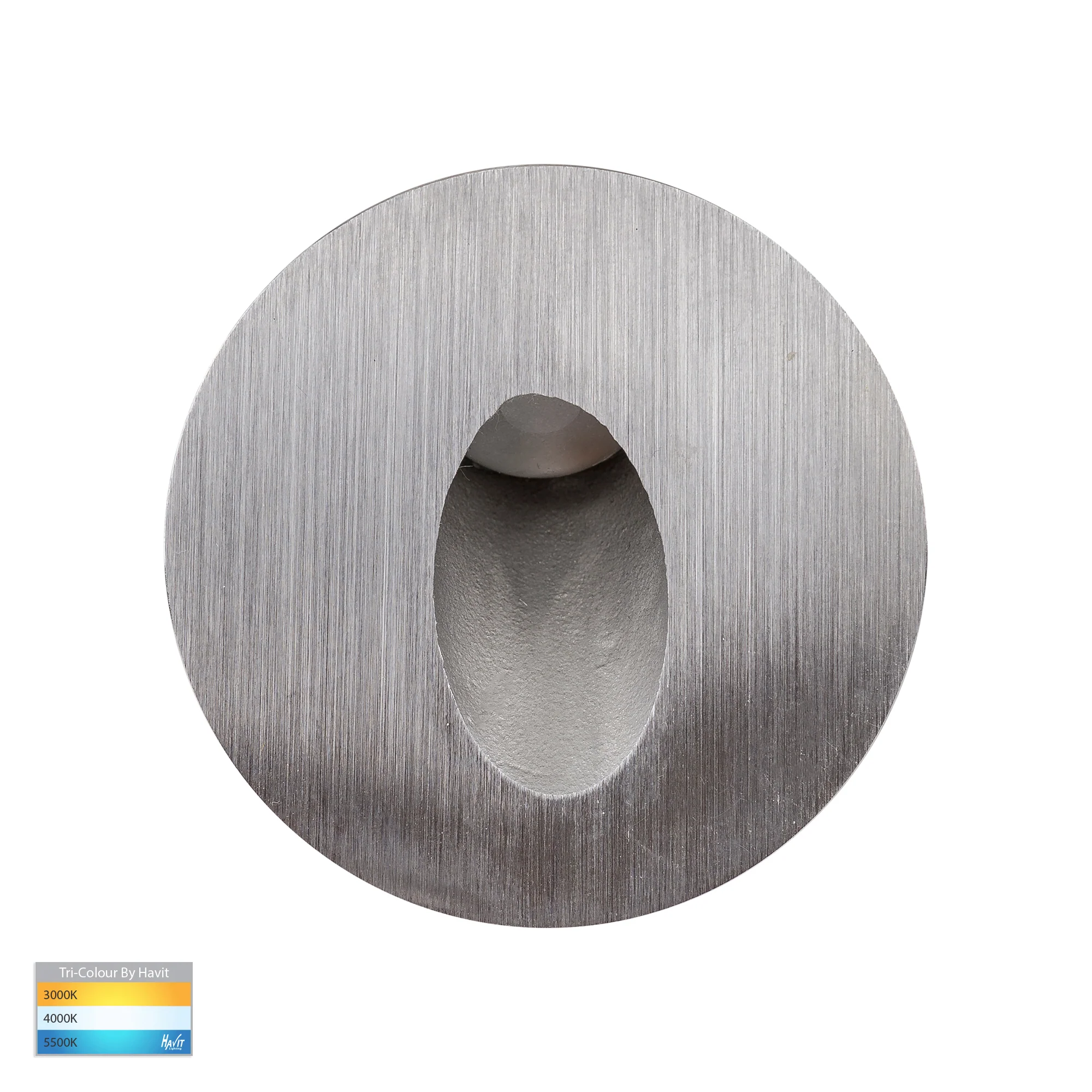

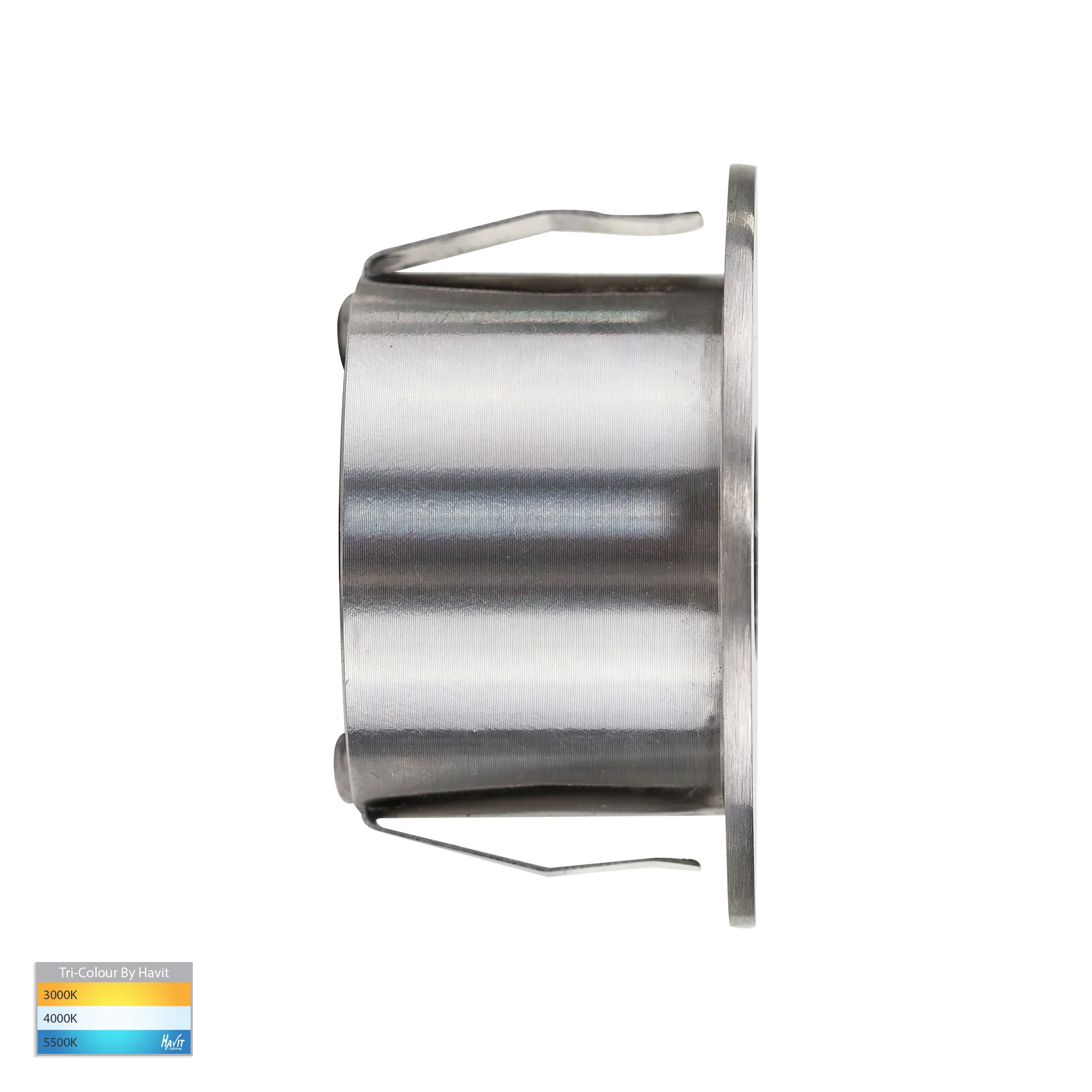

HV3206T-SS316-12V - Mini Reces 316 Stainless Steel Round TRI Colour Recessed LED Step Light

• Recessed Mini round Wall or Step light
• 316 Stainles Steel

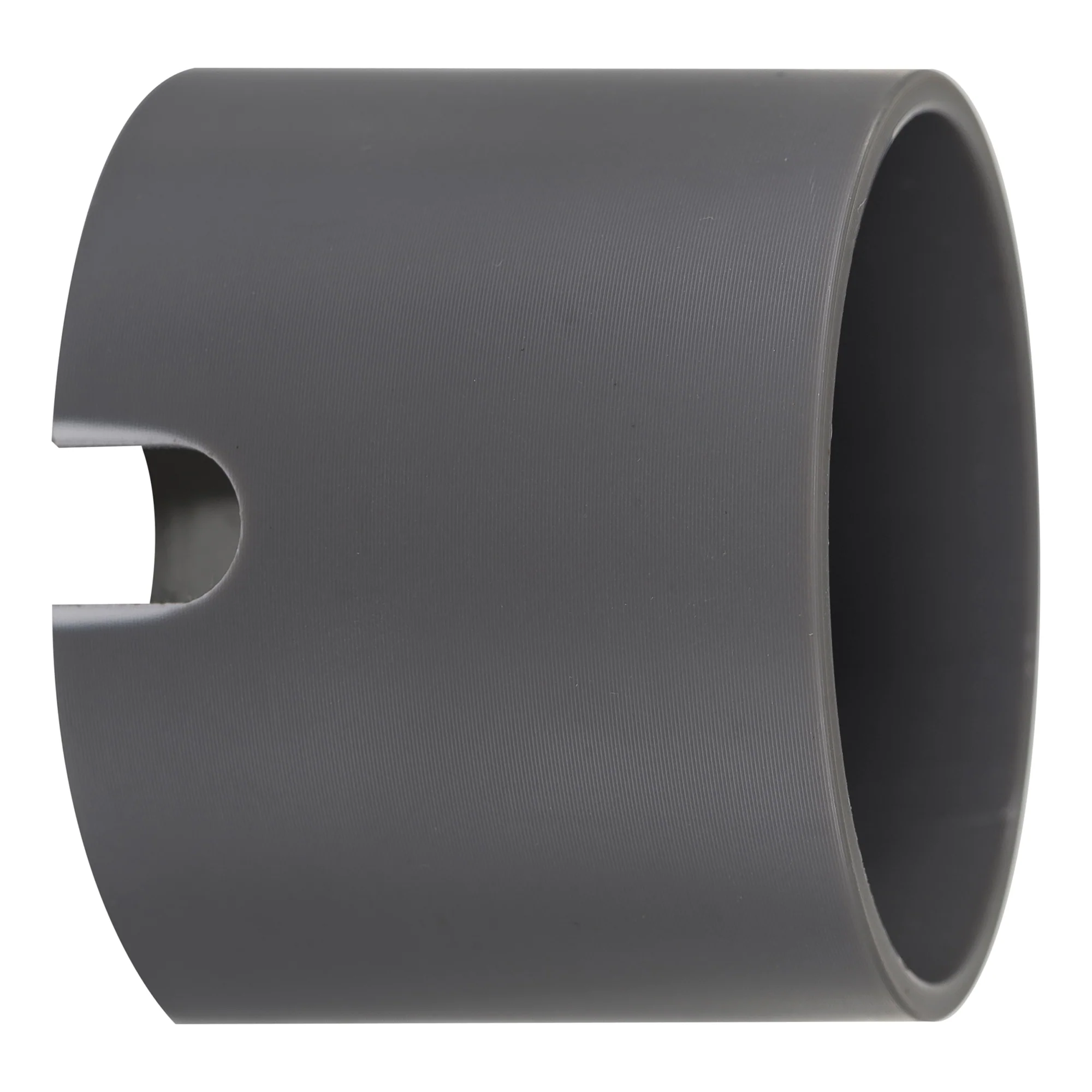

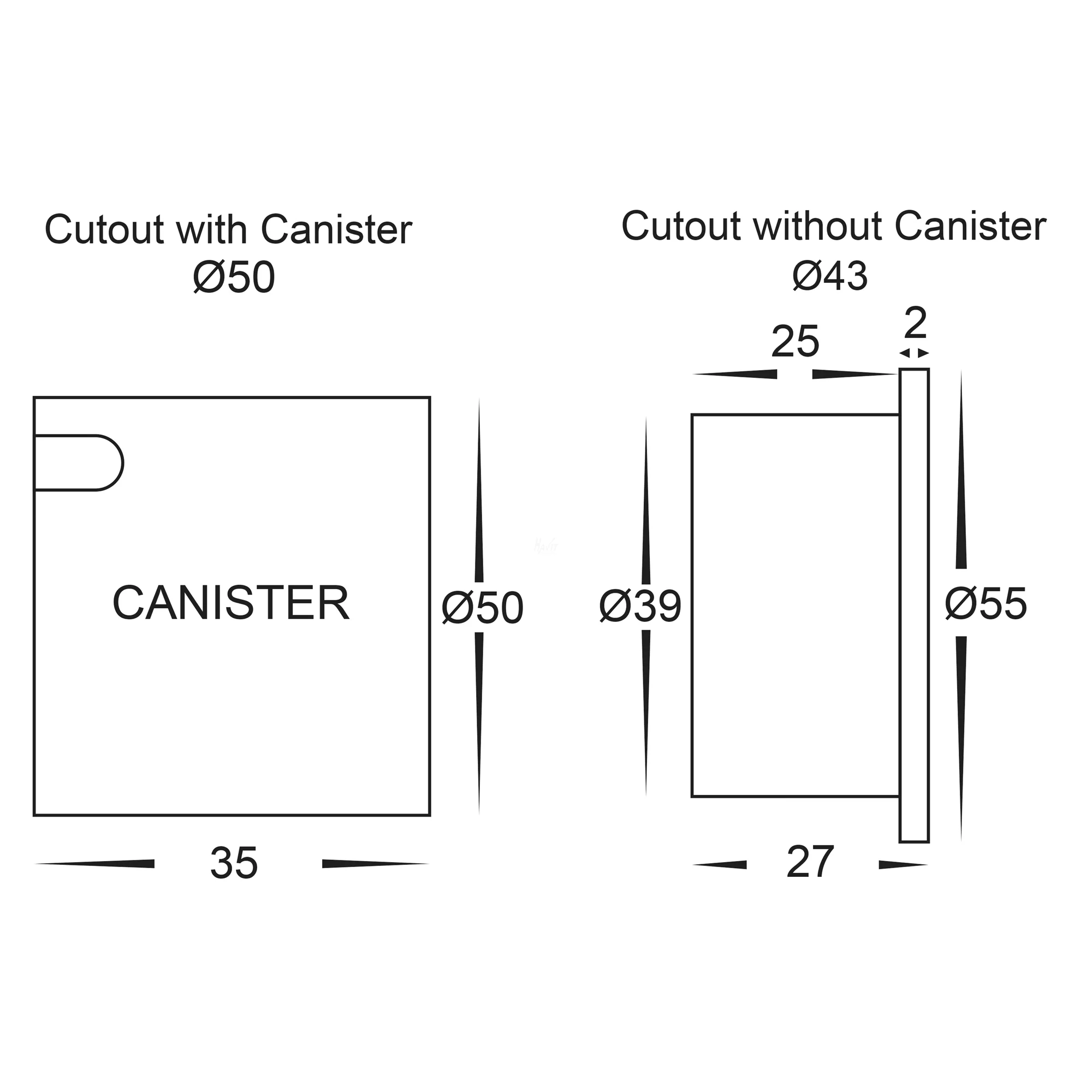

• Cut out with canister: 50mm
• Cut out without canister: 43mm
• IP rating: IP67
• TRI Colour - 3000k, 4000k, 5500k
• Triac Dimmable
• Input Voltage: 12v DC
• Built in 1w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

Must be used with suitable 12v DC LED driver - View Here

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3206T-SS316-12V	3000k 4000k 5500k	55lm 57lm 60lm	1w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
