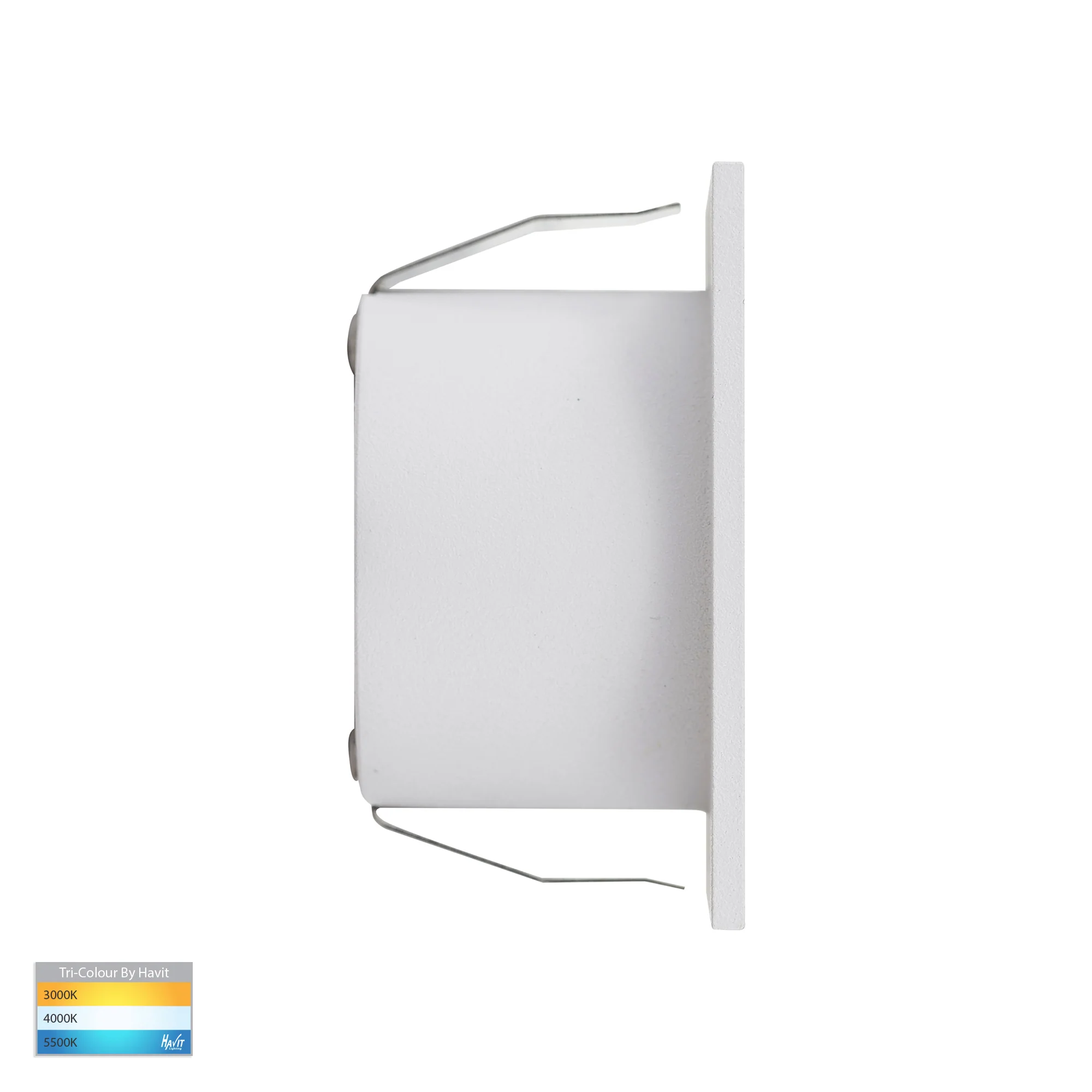

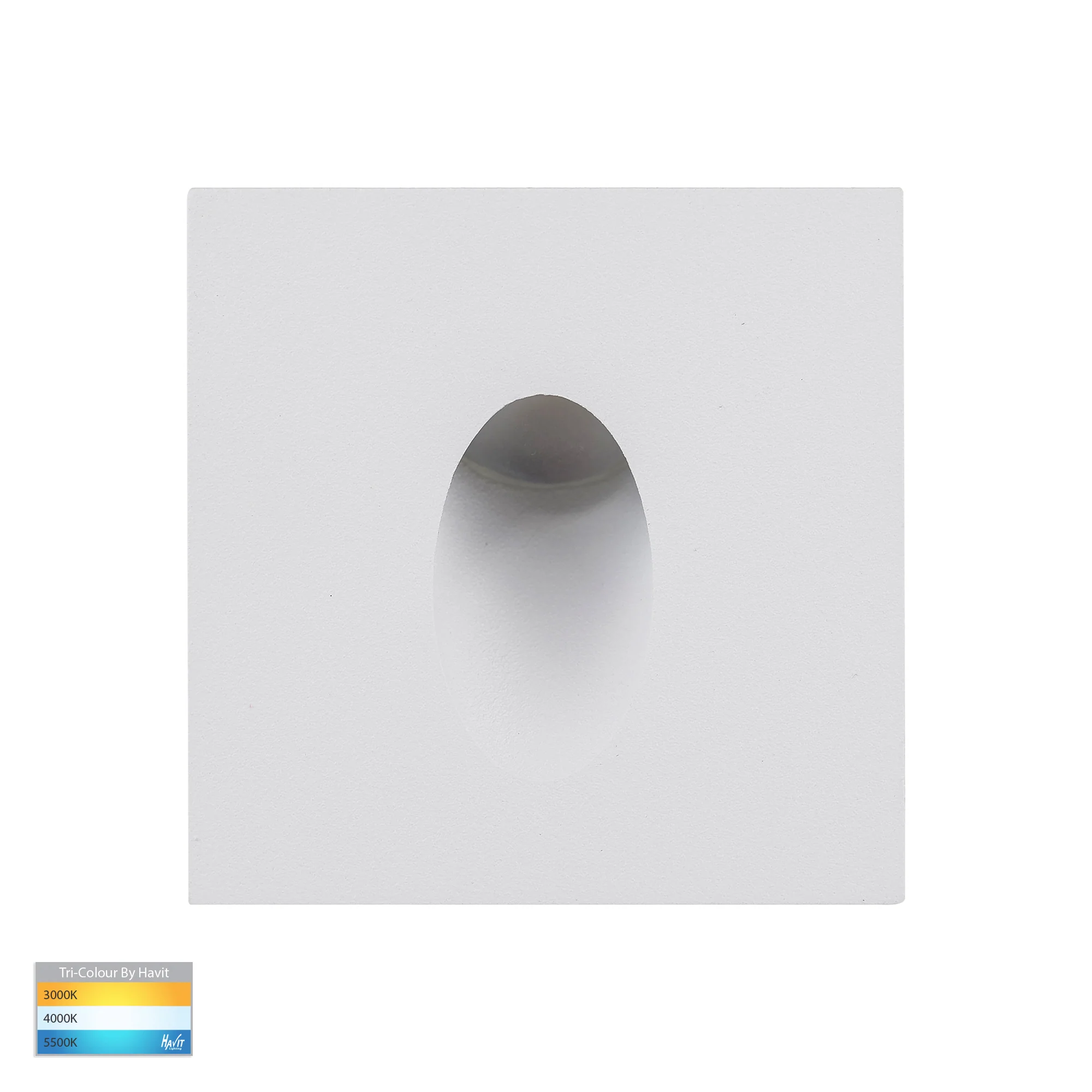

HV3216T-WHT-12V - Mini Reces White Square TRI Colour Recessed LED Step Light

• Reces Recessed Mini Square Wall or Step light
• Aluminium Poly Powder Coated White

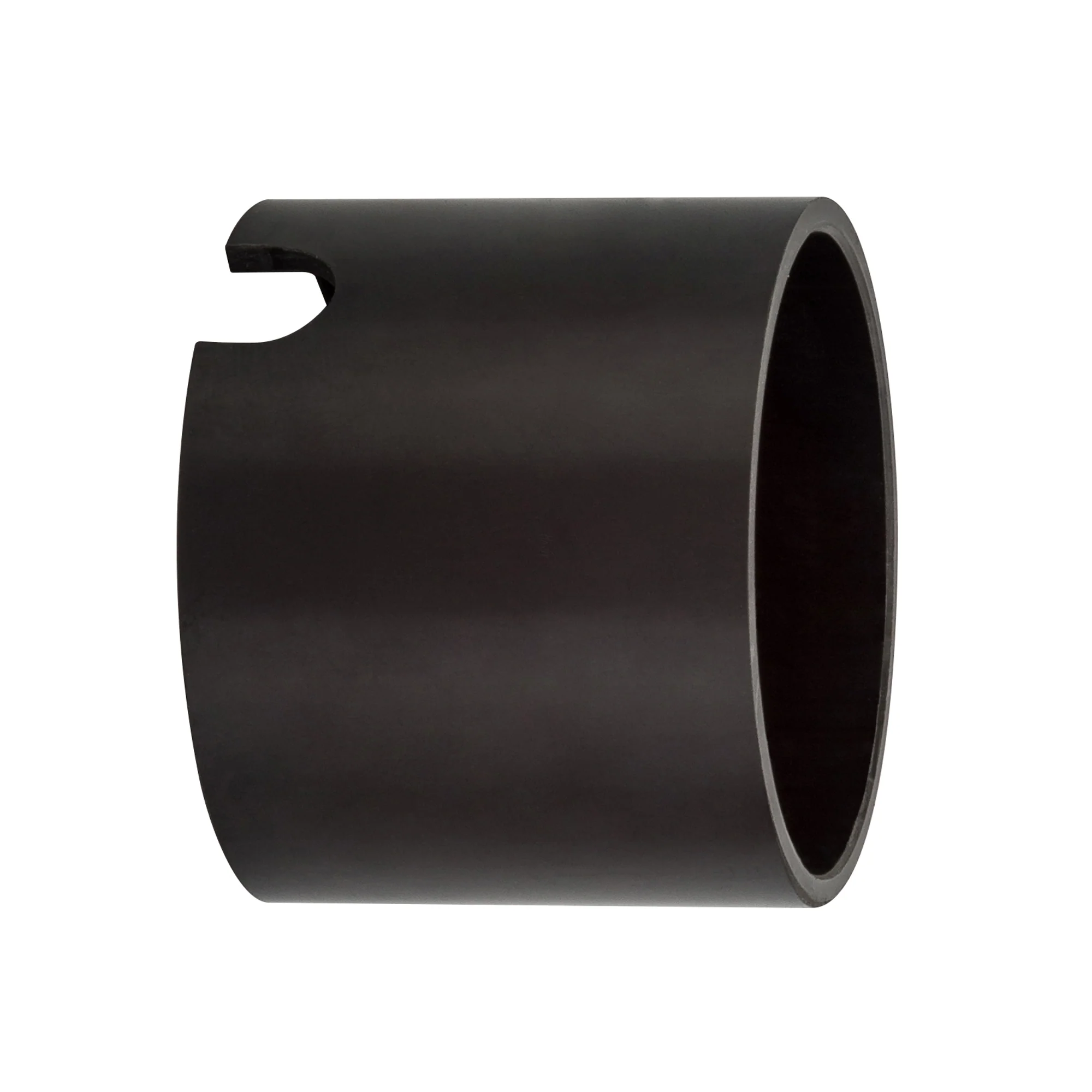

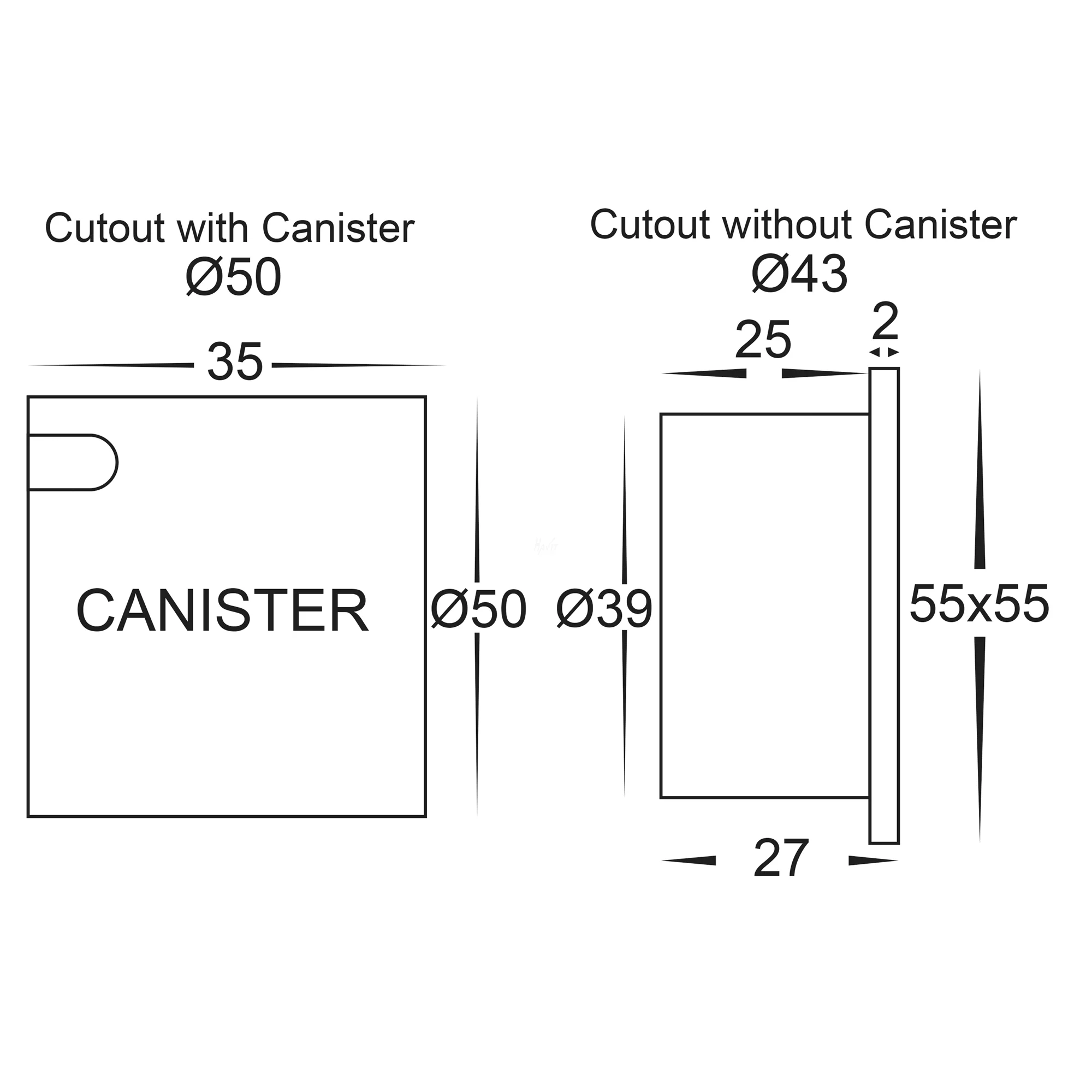

• Cut out with canister: 50mm
• Cut out without canister: 43mm
• IP rating: IP67
• TRI Colour
• 3000k, 4000k, 5500k
• Dimmable
• Input Voltage: 12v DC
• Built in 1w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

Must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3216T-WHT-12V	3000k 4000k 5500k	40lm 50lm 45lm	1w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
