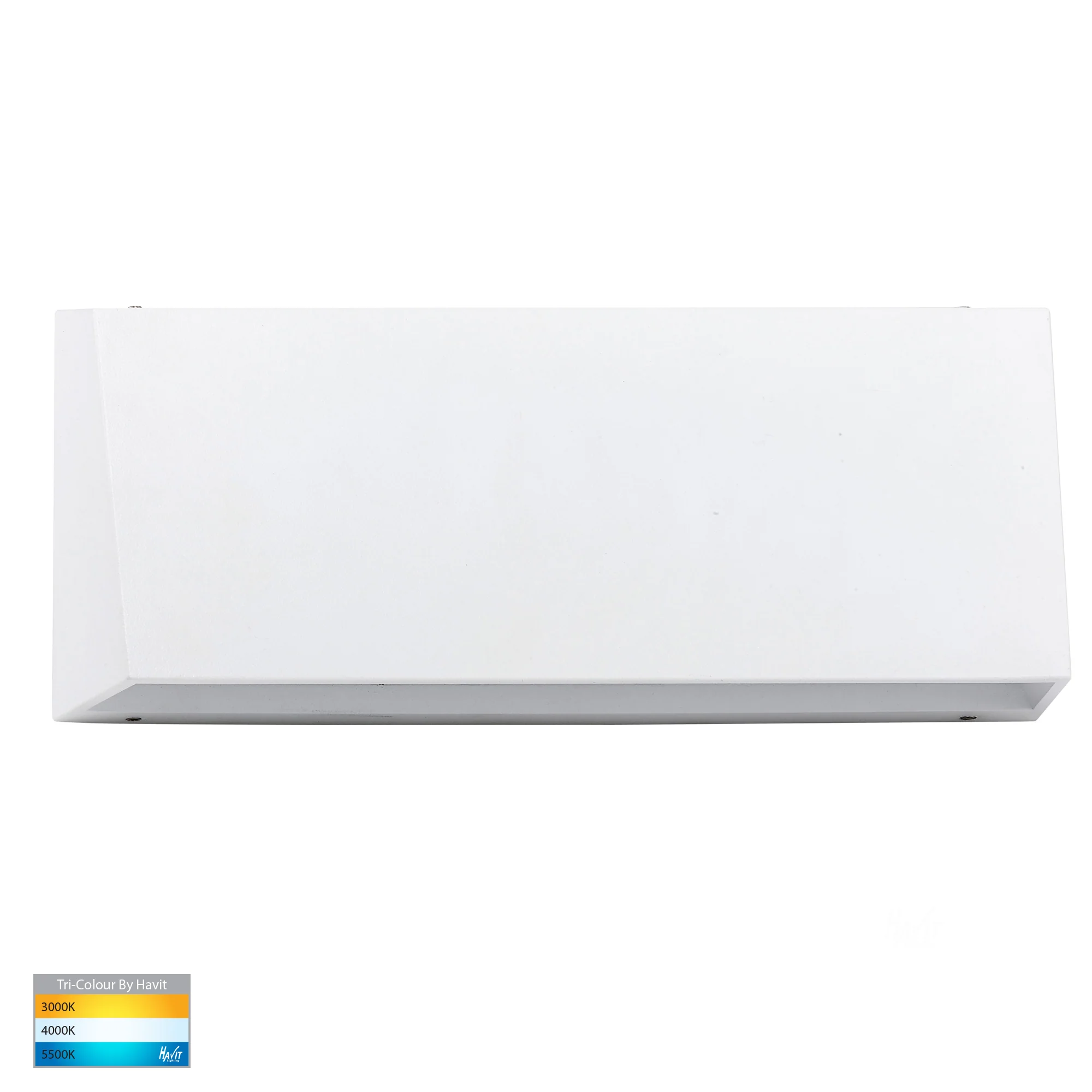

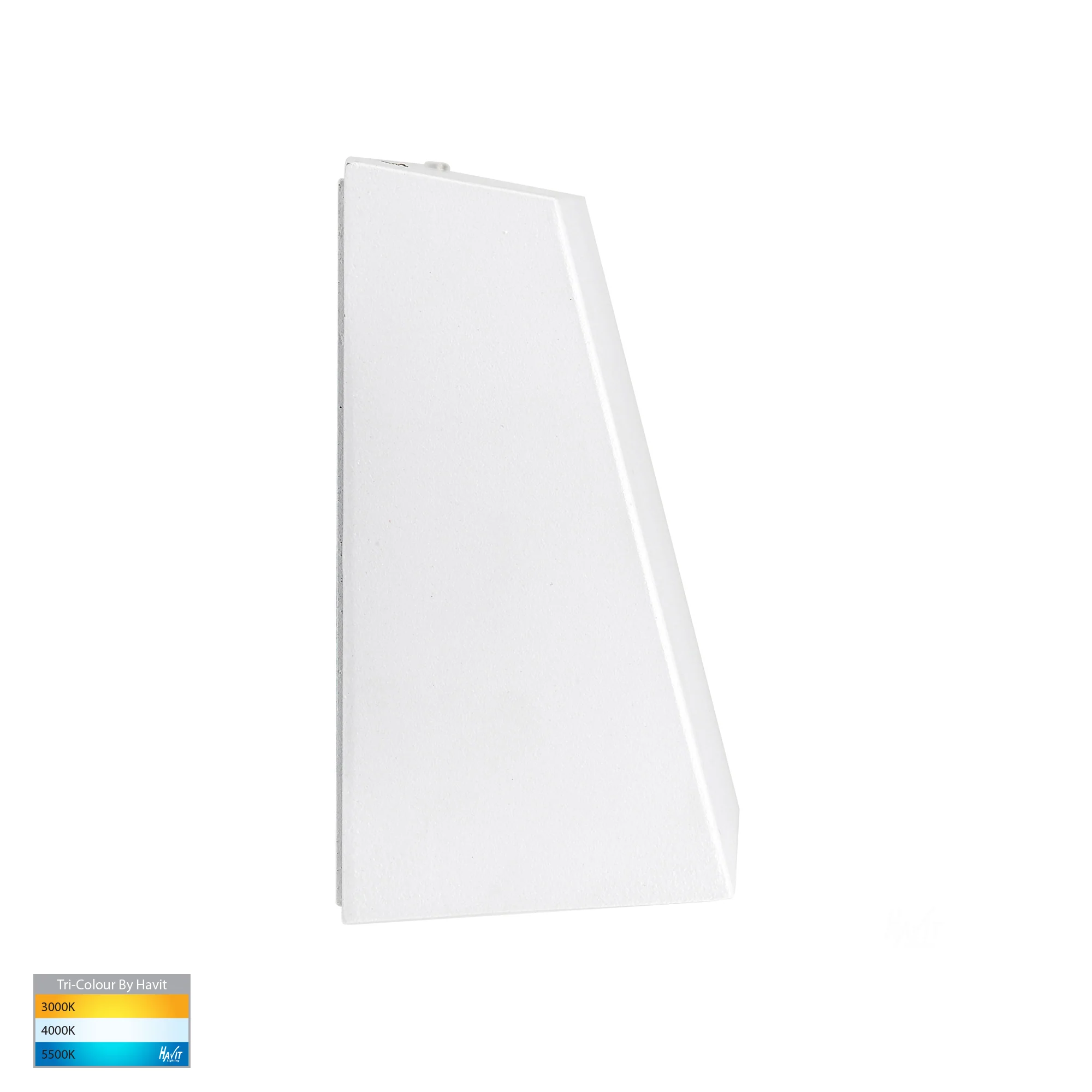

HV3279T-WHT - Shim White LED Step Lights

• Shim Surface mounted step light
• Aluminium poly powder coated white
• Opal Polycarbonate diffuser
• IP rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• TRI Colour
• 3000k, 4000k, 5500k
• Built-in 14w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

12v model must be used with suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3279T-WHT-12V	3000k 4000k 5500k	1120lm 1155lm 1190lm	14w 12v DC Built in LED	12v DC
HV3279T-WHT-240V	3000k 4000k 5500k	1120lm 1155lm 1190lm	14w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
