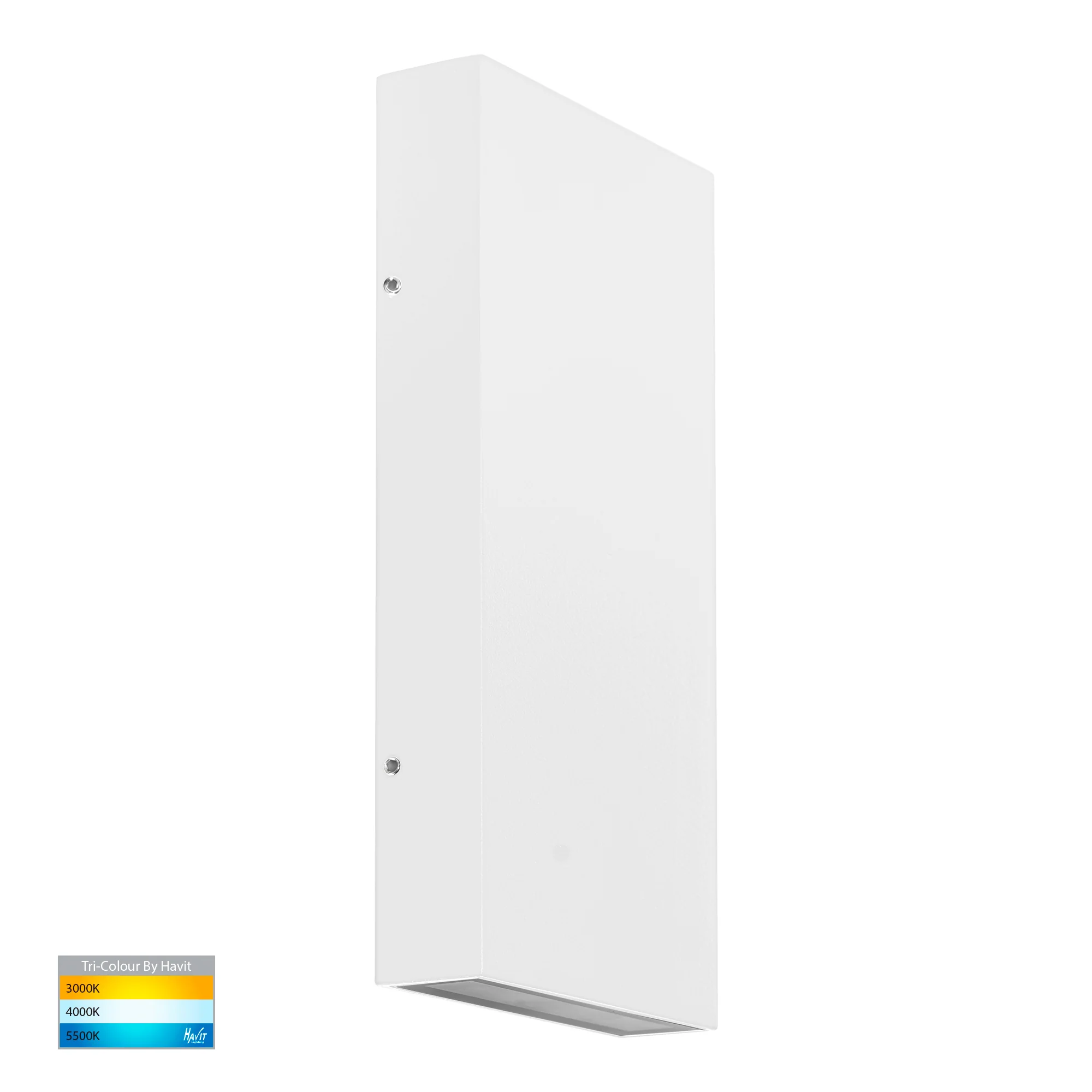

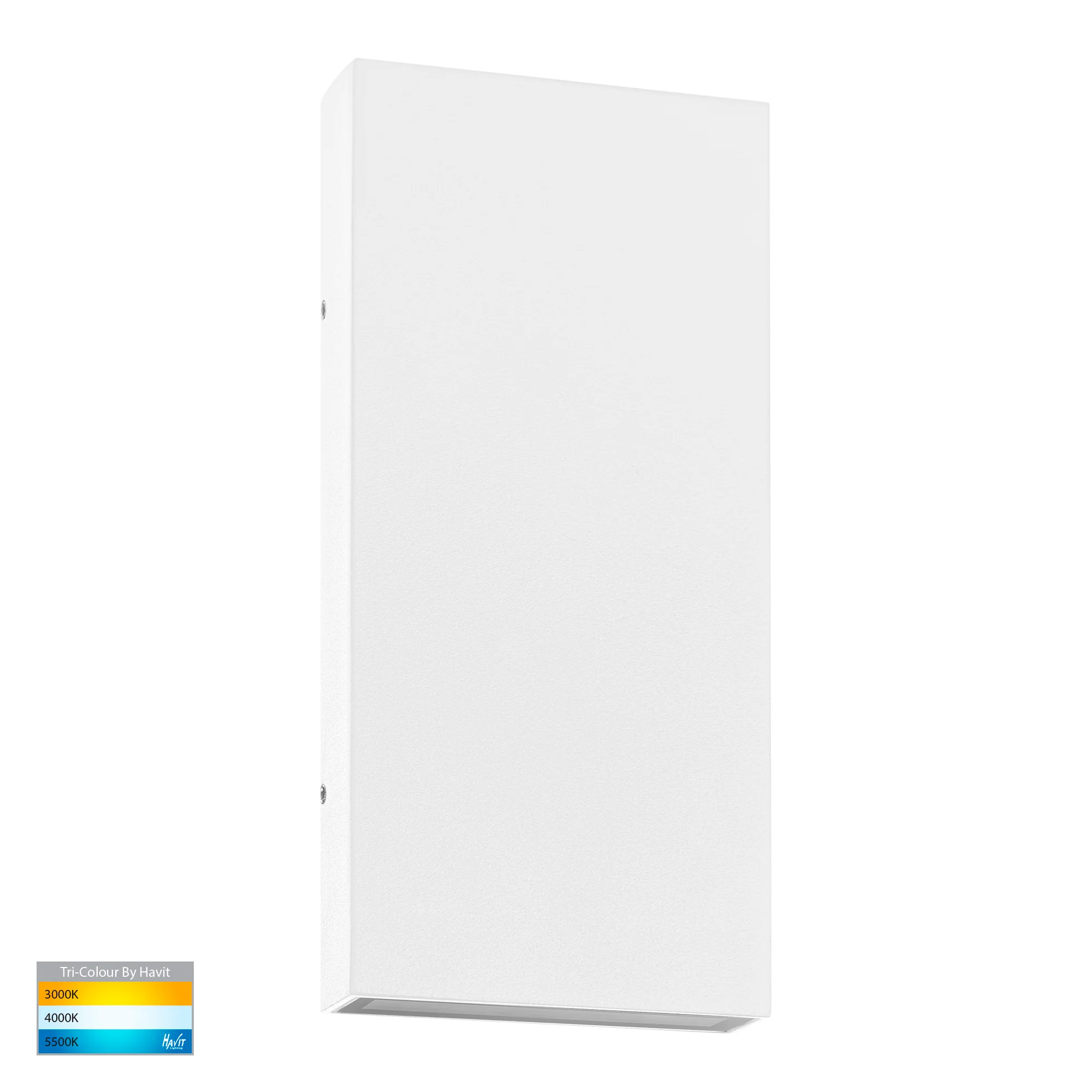

HV3649T-WHT - Essil White Up & Down LED Wall Light

• Essil Up & Down LED wall light
• Aluminium poly powder coated white
• Tempered glass
• Triac Dimmable (240v Model Only)
• IP rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• TRI Colour
• 3000k, 4000k, 5500k
• Built in 2x 6w LED
• 3 years replacement warranty (items ordered after 01/01/22)

12v model must be used with a suitable 12v DC LED driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3649T-WHT-240V	3000k 4000k 5500k	2x 350lm 2x 365lm 2x 380lm	2x 6w 240v Built in LED	240v
HV3649T-WHT-12V	3000k 4000k 5500k	2x 350lm 2x 365lm 2x 380lm	2x 6w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
