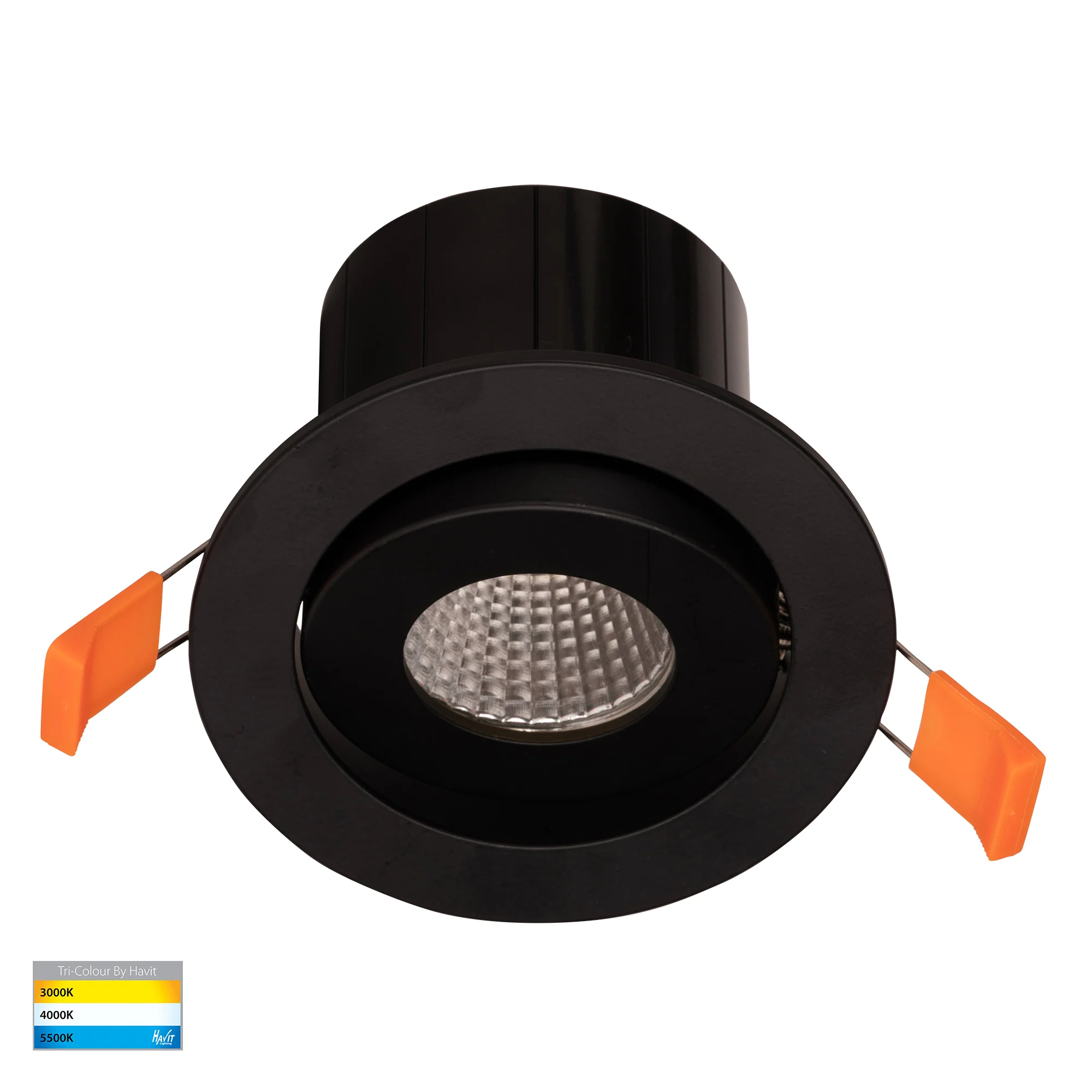

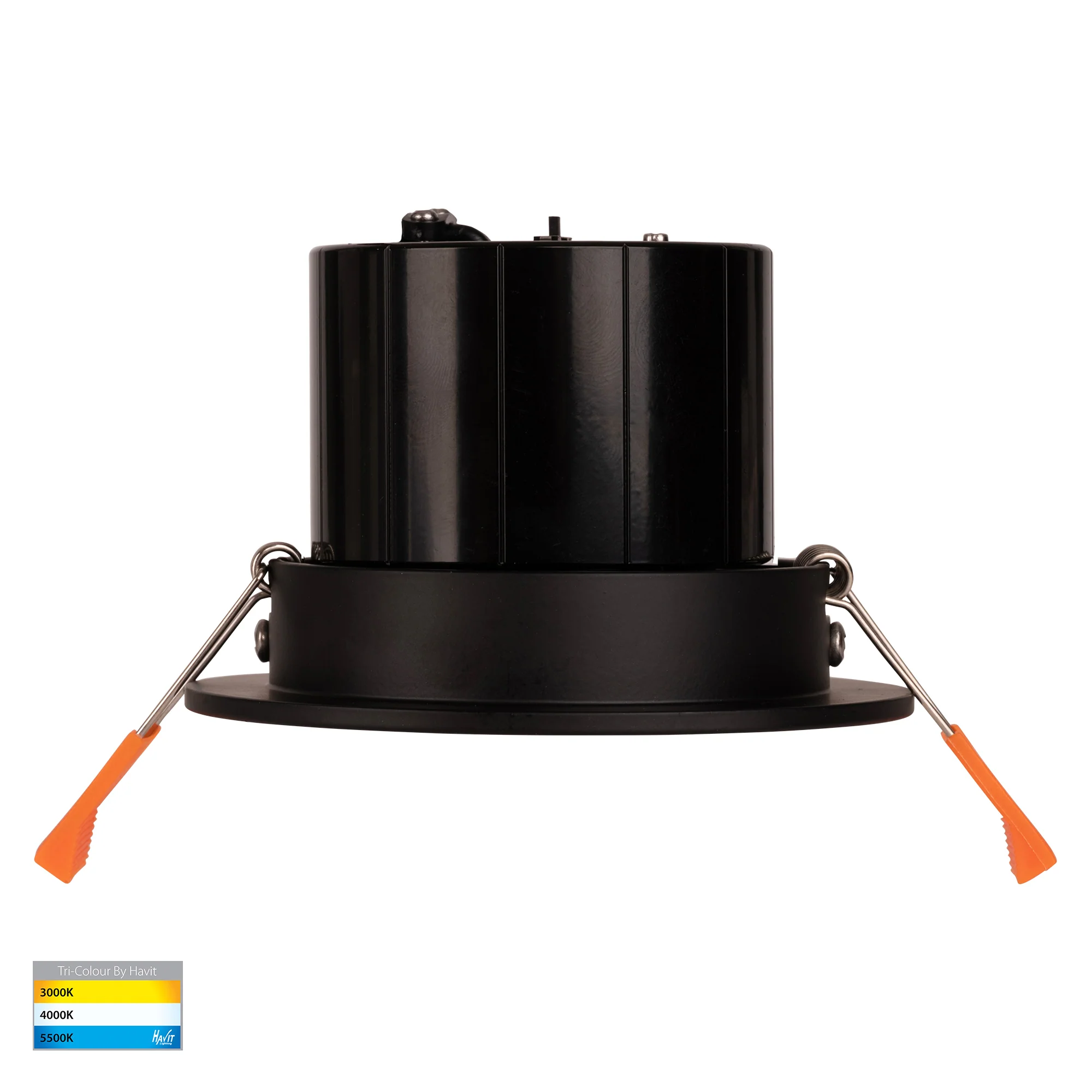

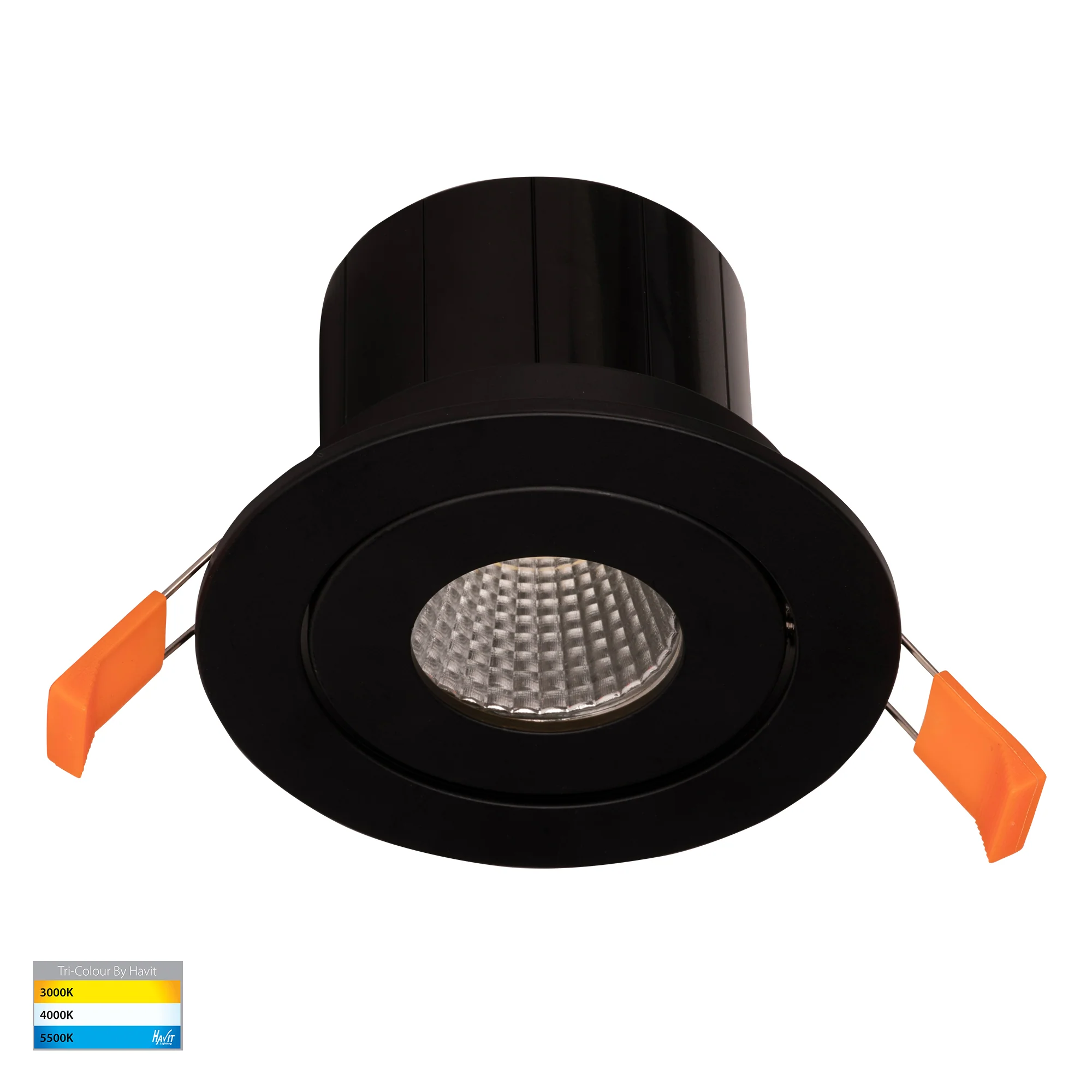

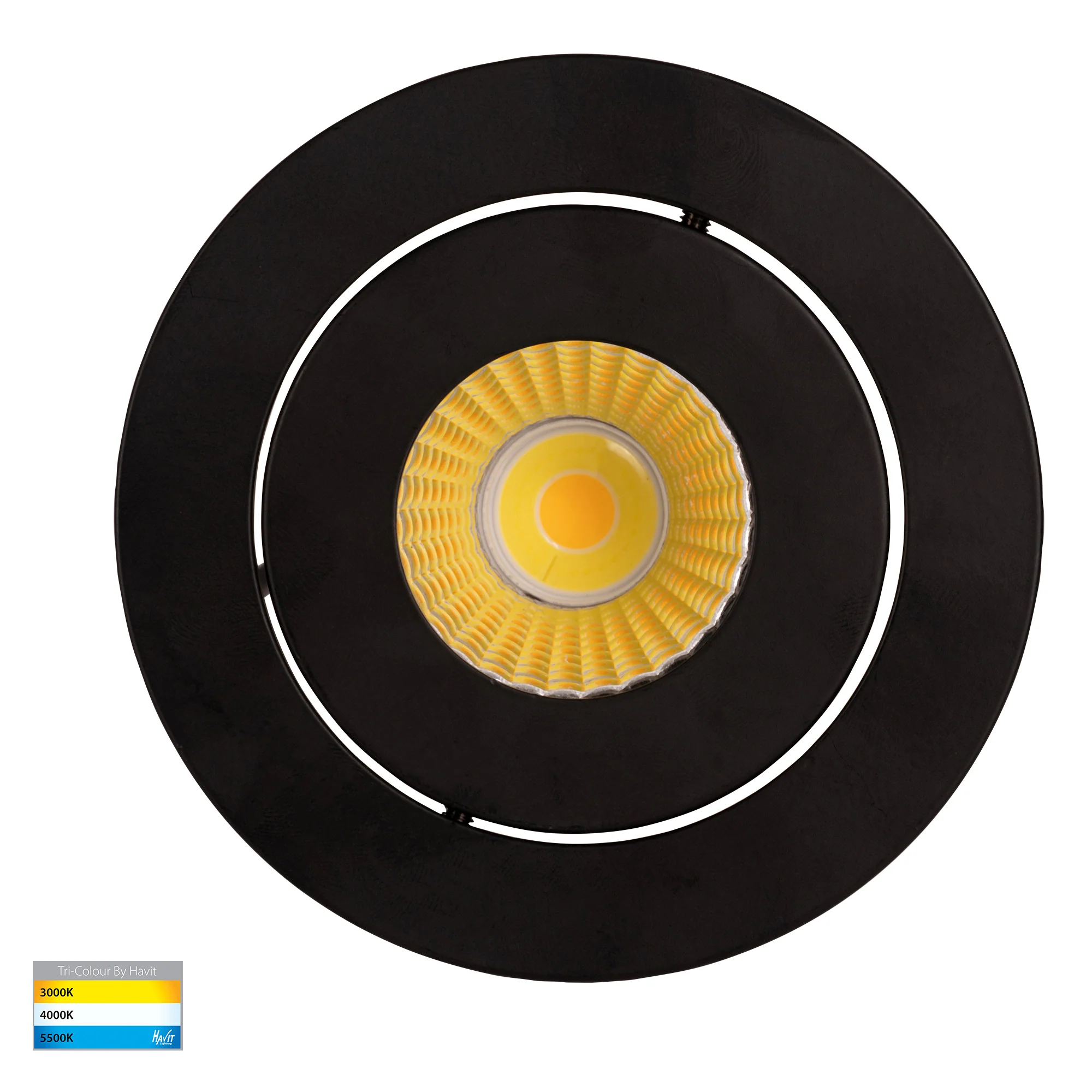

HV5512T-BLK - Prime Black Tilt LED Downlight

• Prime Tilt Recessed LED downlight
• Aluminium Matt Black Finish
• Supplied with Flicker Free dimmable LED driver complete with flex & plug
• Dimming Range: 10%-100%
• 60° beam angle
• 20° tilt
• CRI ≥ 90

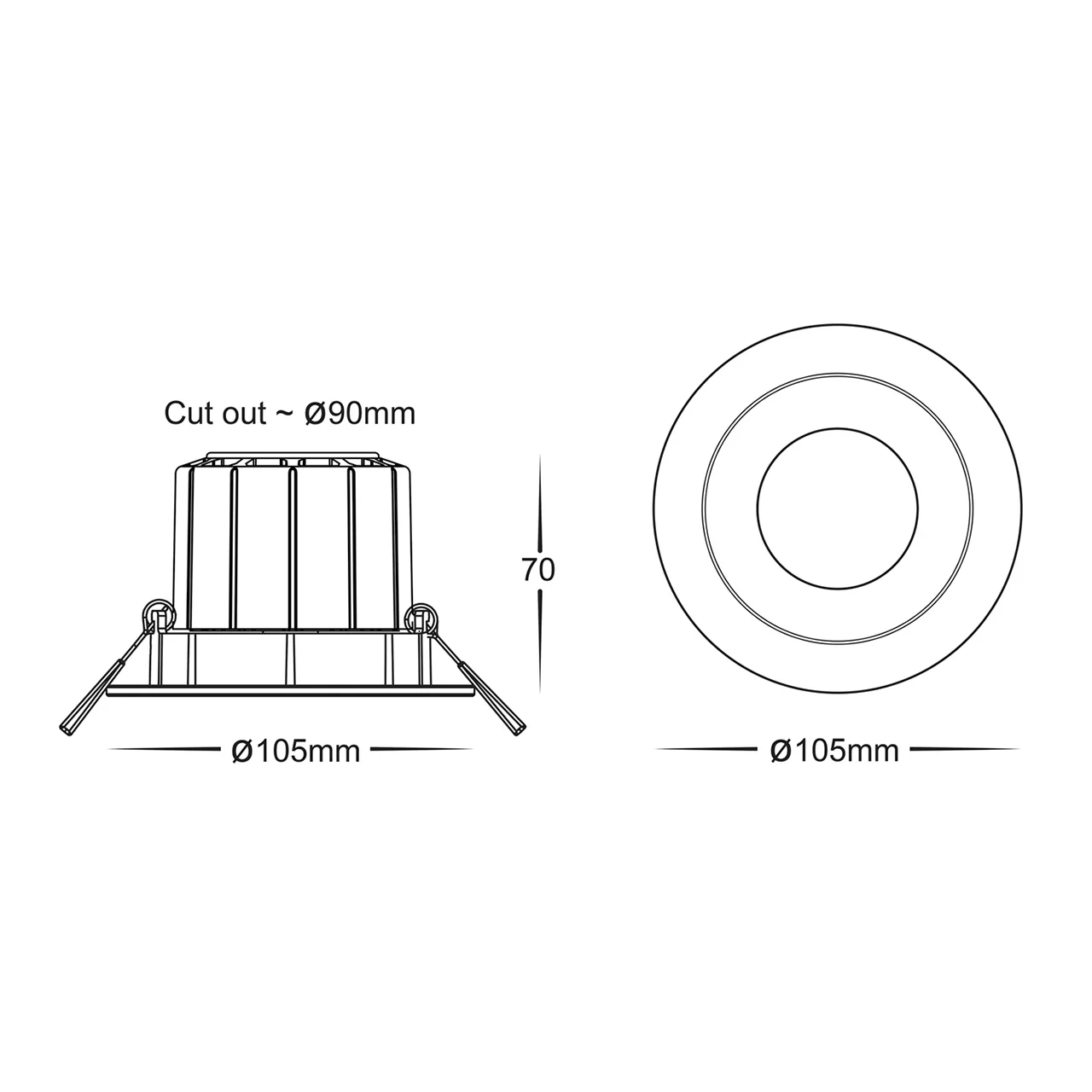

• Ø90mm cutout
• IP rating: IP54 (front of fitting only)
• IC-4 Rated (Fitting only)
• Input voltage: 240v AC

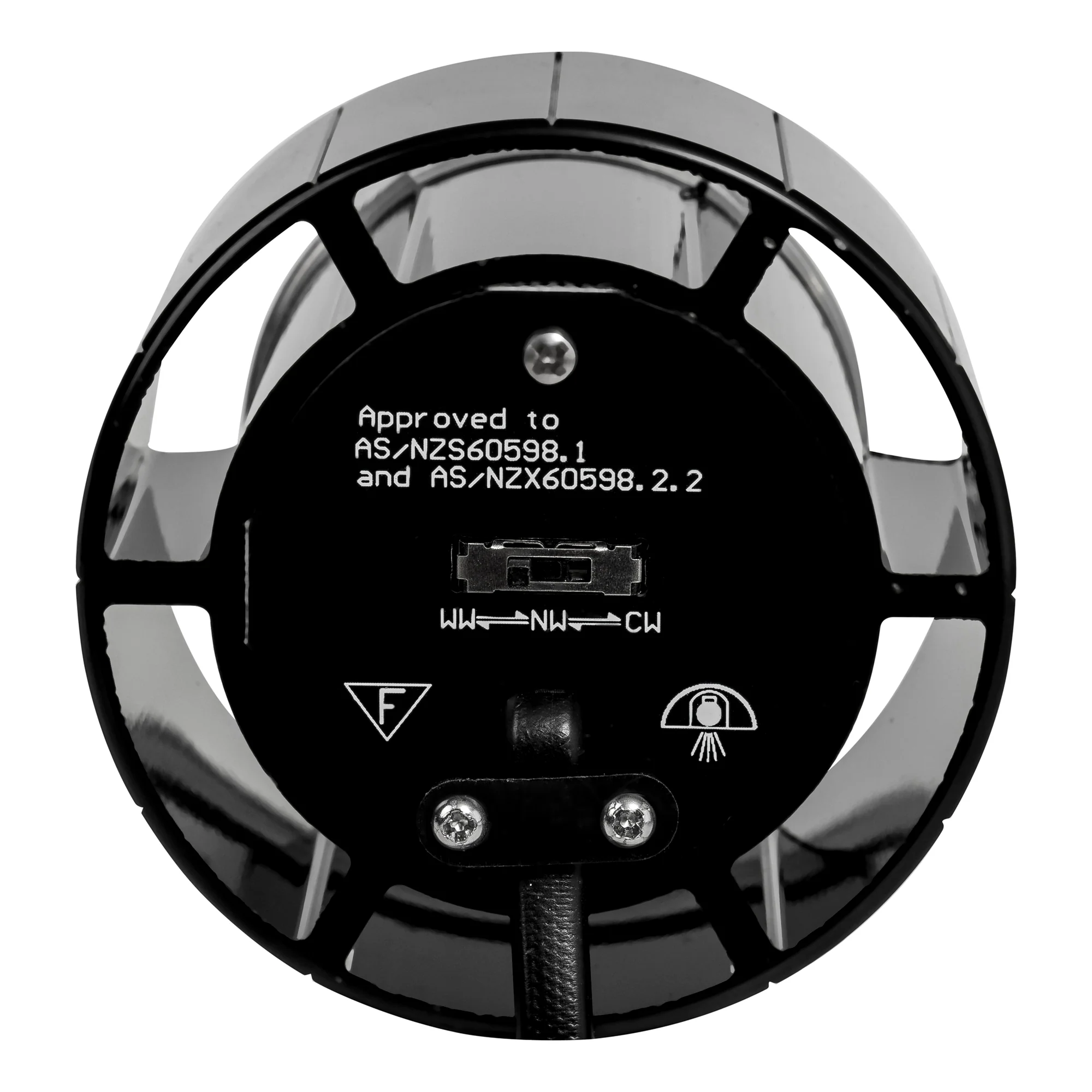

• TRI Colour - 3000k, 4000k, 5500k
• Built in 12w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5512T-BLK	3000k 4000k 5500k	839lm 913lm 841lm	12w 240v Built in LED	240v

Data Sheet

Download

IES Files

IES Files

Install Sheet

Installation Instructions
