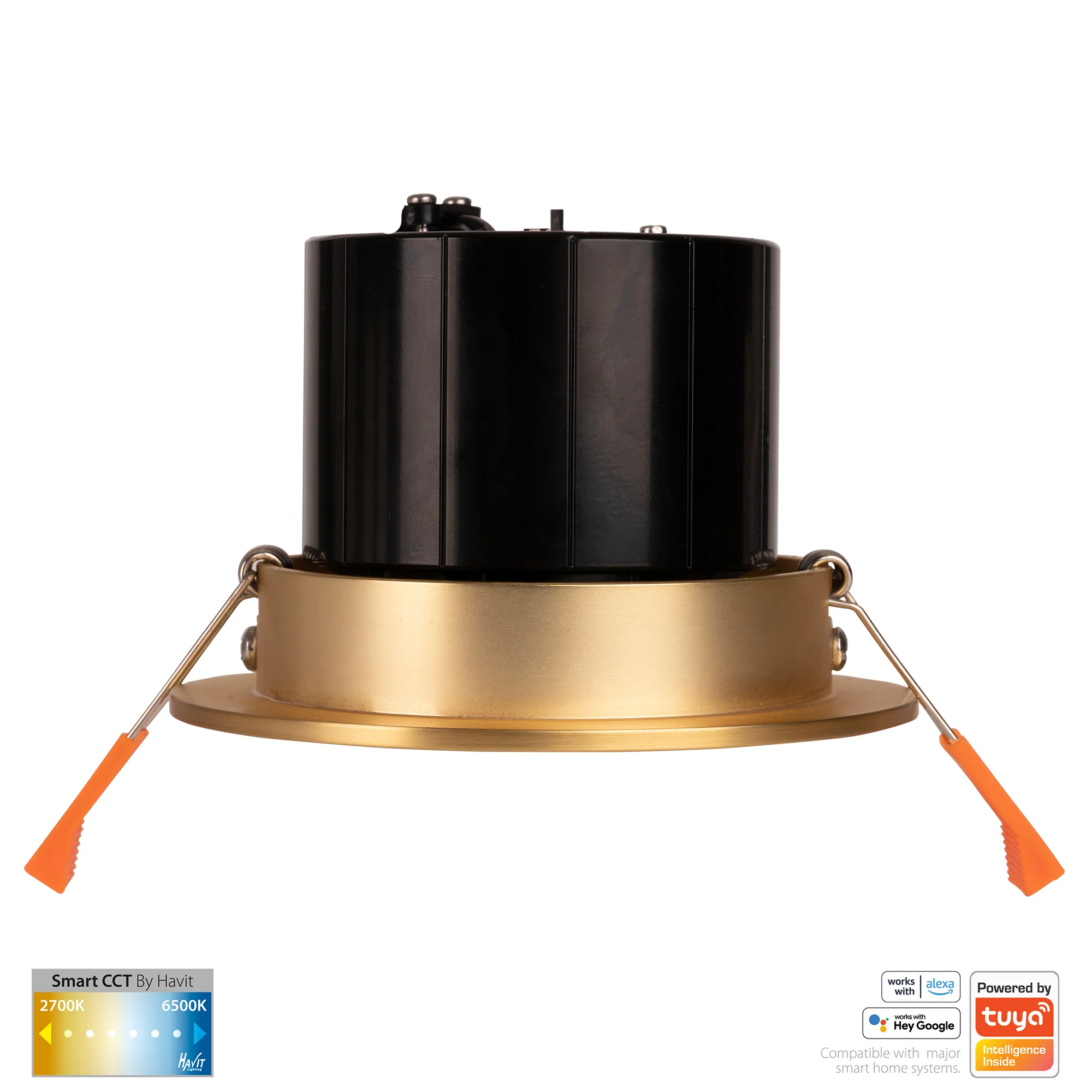

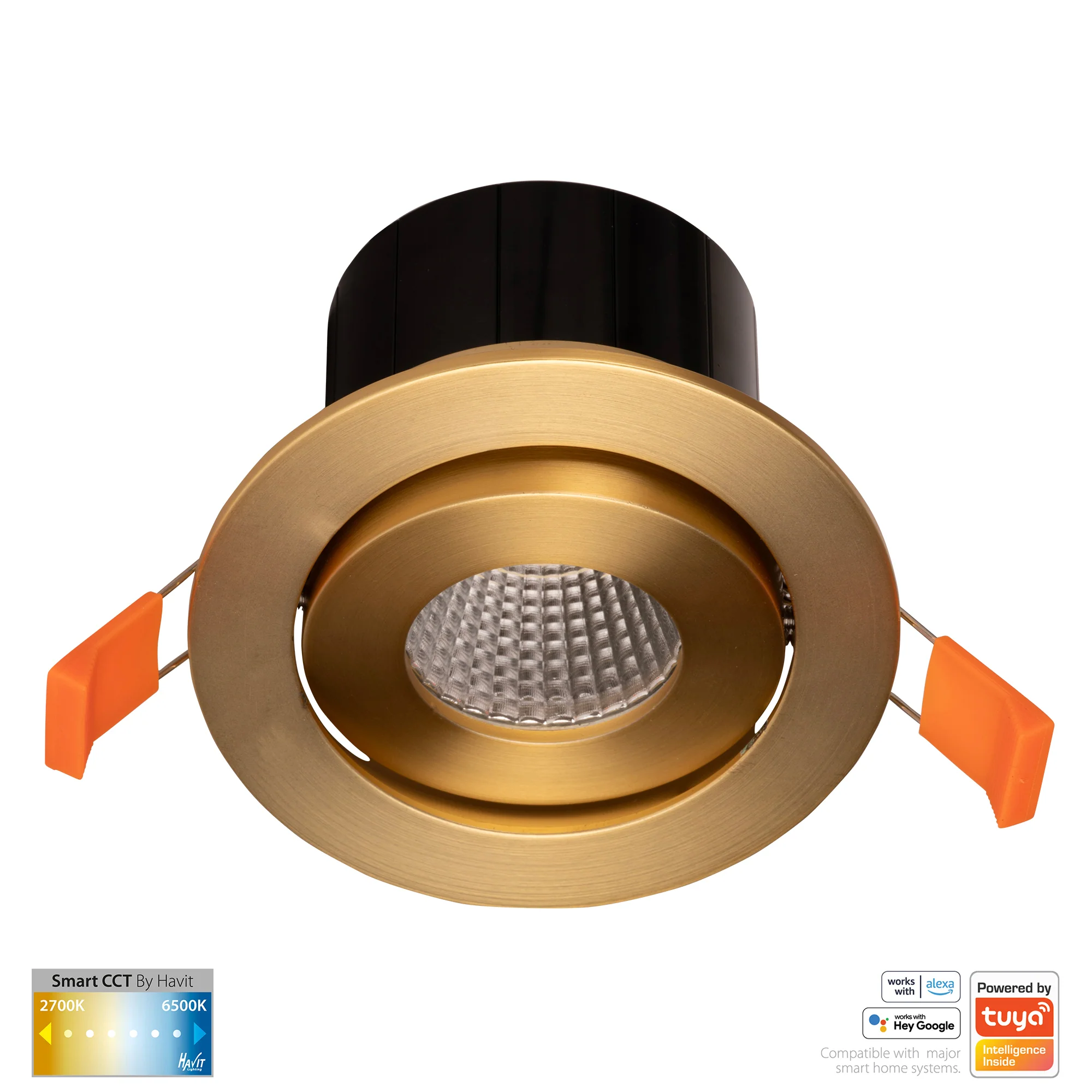

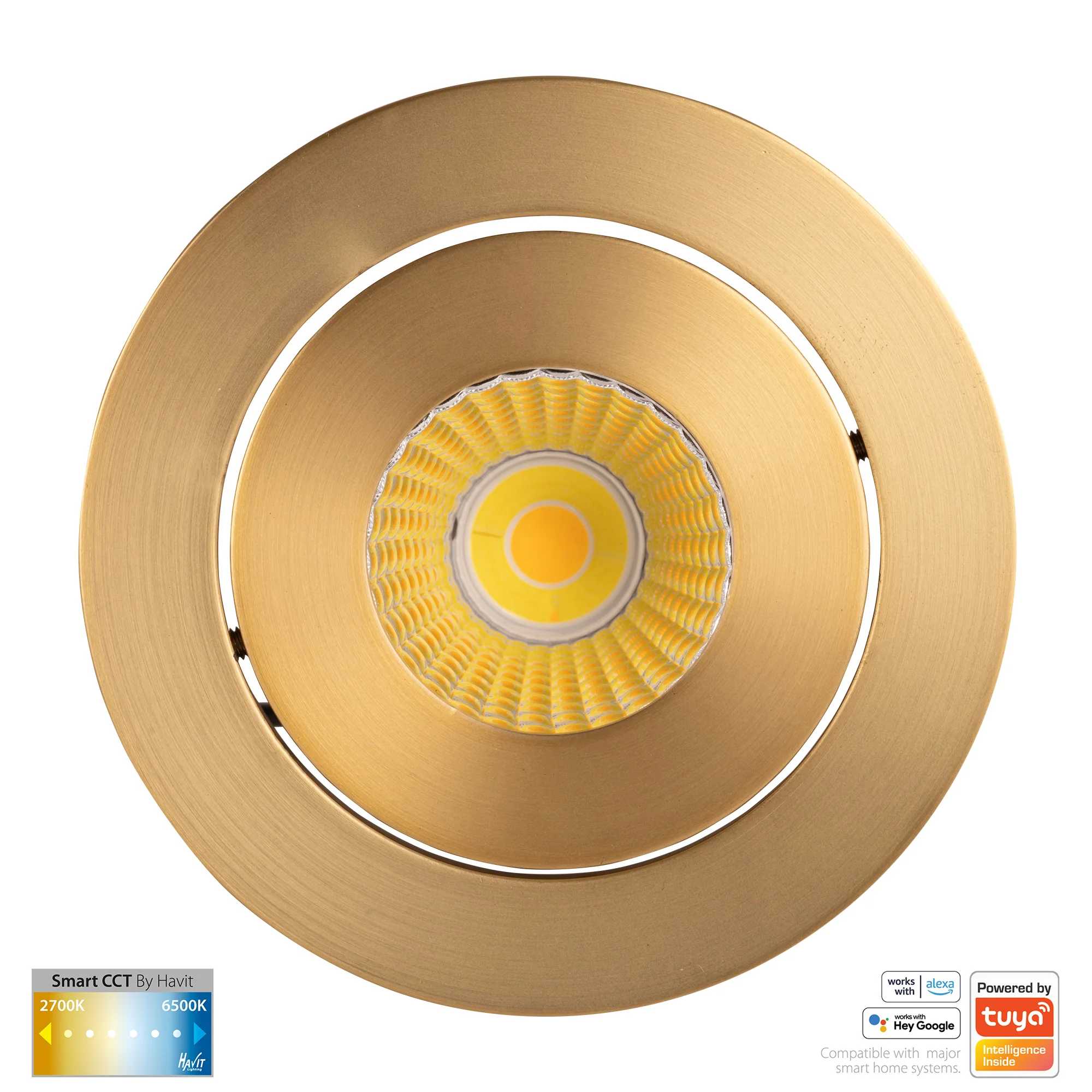

HV5512CCT-BR- Prime Brass Coloured Tilt CCT WIFI LED Downlight

• Prime Tilt Recessed CCT WIFI LED downlight
• Aluminium Brass Coloured Finish
• Supplied with dimmable LED driver complete with flex & plug
• Controlled using TUYA App on either Phone or Tablet
• 60° beam angle
• 20° Tilt
• CRI ≥ 90
• Ø90mm cutout
• IP rating: IP54 (Front of fiting only)
• IC-4 Rated (Fitting only)
• Input voltage: 240v AC
• CCT - 2700K-6500K

• Built-in 12w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5512CCT-BR	2700k - 6500k (Adjustable)	815lm-865lm	12w 240v Built in LED	240v

Data Sheet

Download

IES Files

IES Files

Install Sheet

Installation Instructions
