HV5522T-BLK | HV5522T-BLK-24V - Polly Polycarbonate Black Fixed LED Downlight

• Polly Fixed Recessed LED downlight
• Polycarbonate black finish
• 120° beam angle
• Integrated Triac Dimmable LED Driver (240v Model Only)
• Supplied with Flex & Plug (240v Model Only)

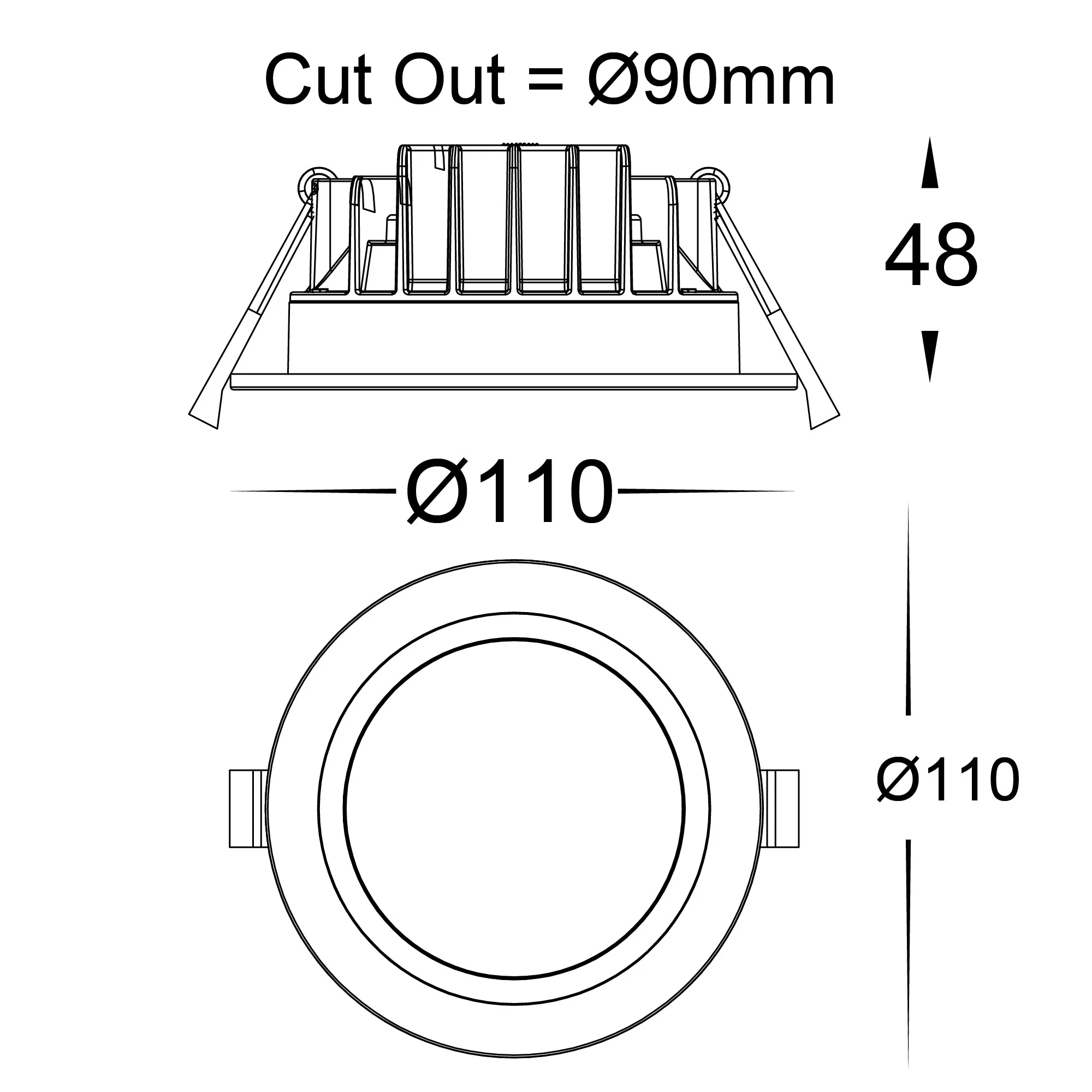

• 90mm cutout
• IP rating: IP54
• CRI>80
• IC-4 Rated
• Input voltage: Available in either 240v AC or 24v DC
• TRI Colour
• 3000k, 4000k, 5500k
• Built in 8w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

24v DC Model must be used with a compatible 24v DC LED Driver - View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5522T-BLK	3000k 4000k 5500k	635lm 750lm 715lm	8w 240v Built in LED	240v
HV5522T-BLK-24V	3000k 4000k 5500k	635lm 750lm 715lm	8w 24v DC Built in LED	24v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
