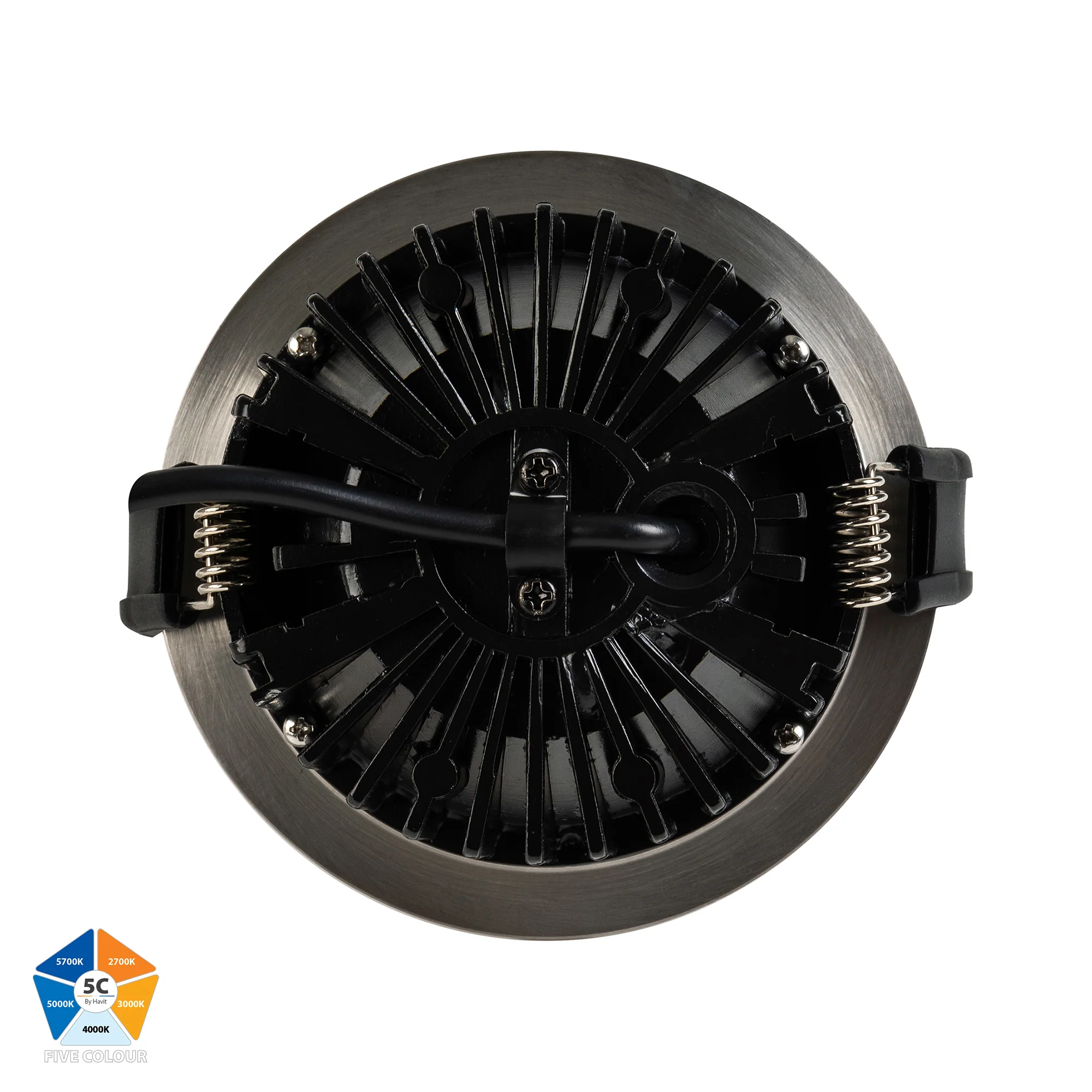

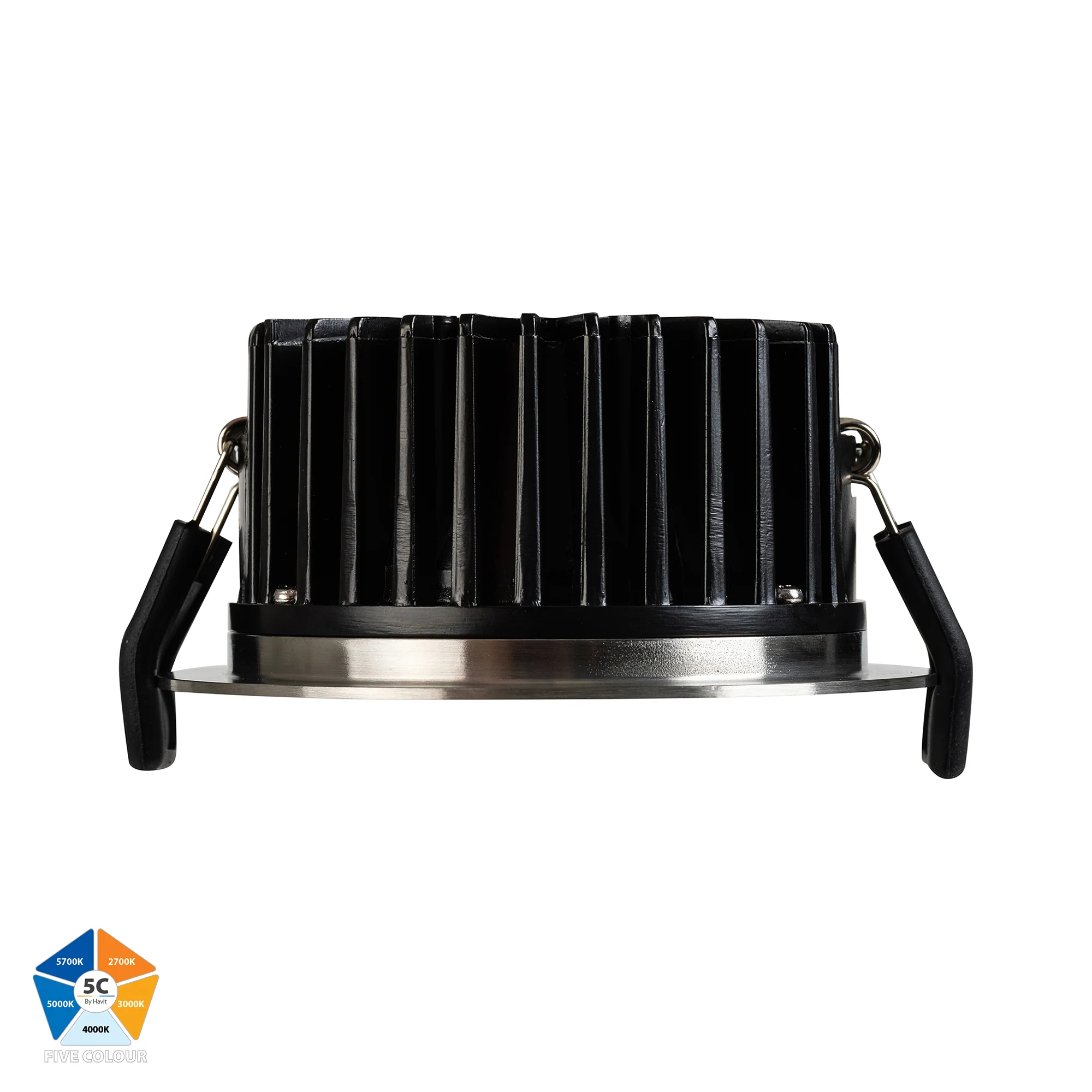

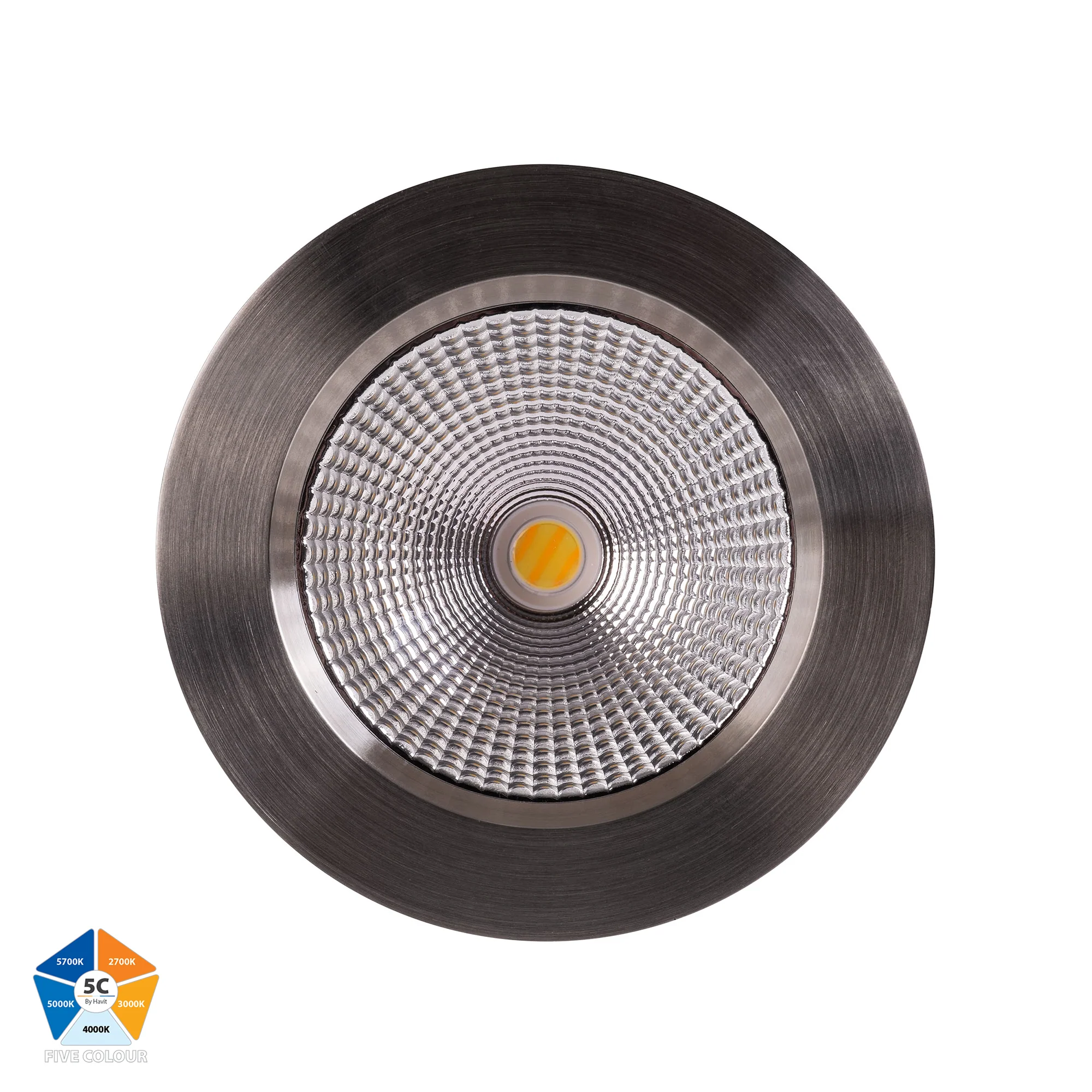

HV5530S-SS316 - Ora 316 Stainless Steel Fixed 5 Colour LED Downlight

• Ora Fixed Recessed LED downlight
• 316 Stainless steel face
• Aluminium body
• Triac Dimmable

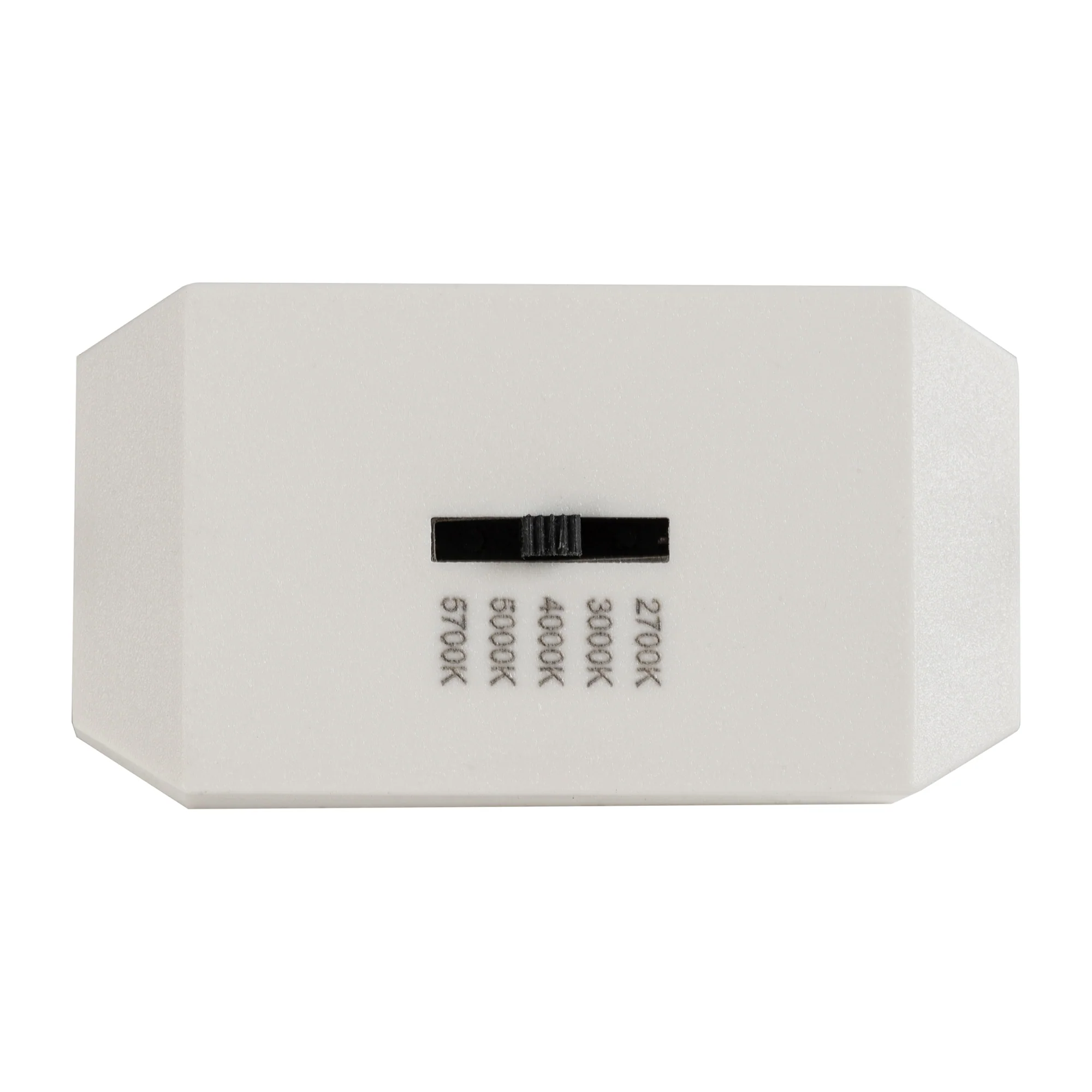

• Supplied with LED driver complete with flex & plug
• 60° beam angle
• 90mm cutout
• 5 Colour
• 2700k, 3000k, 4000k, 5000k, 5700k
• IP rating: IP54
• IC-4 Rated (Fitting only)
• Input voltage: 240v AC
• Built in 12w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5530S-SS316	2700k 3000k 4000k 5000k 5700k	890lm 935lm 1020lm 1095lm 1105lm	12w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
