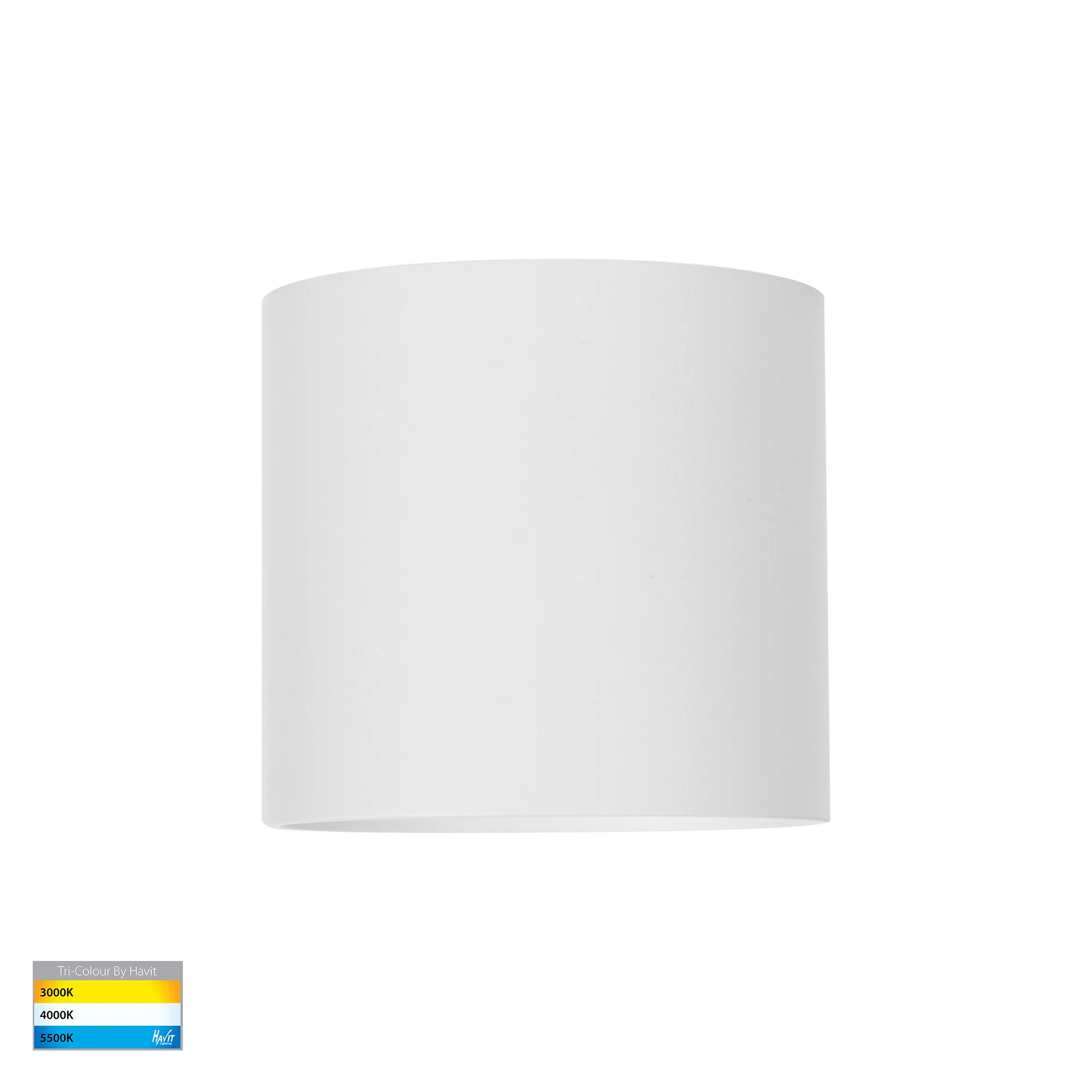

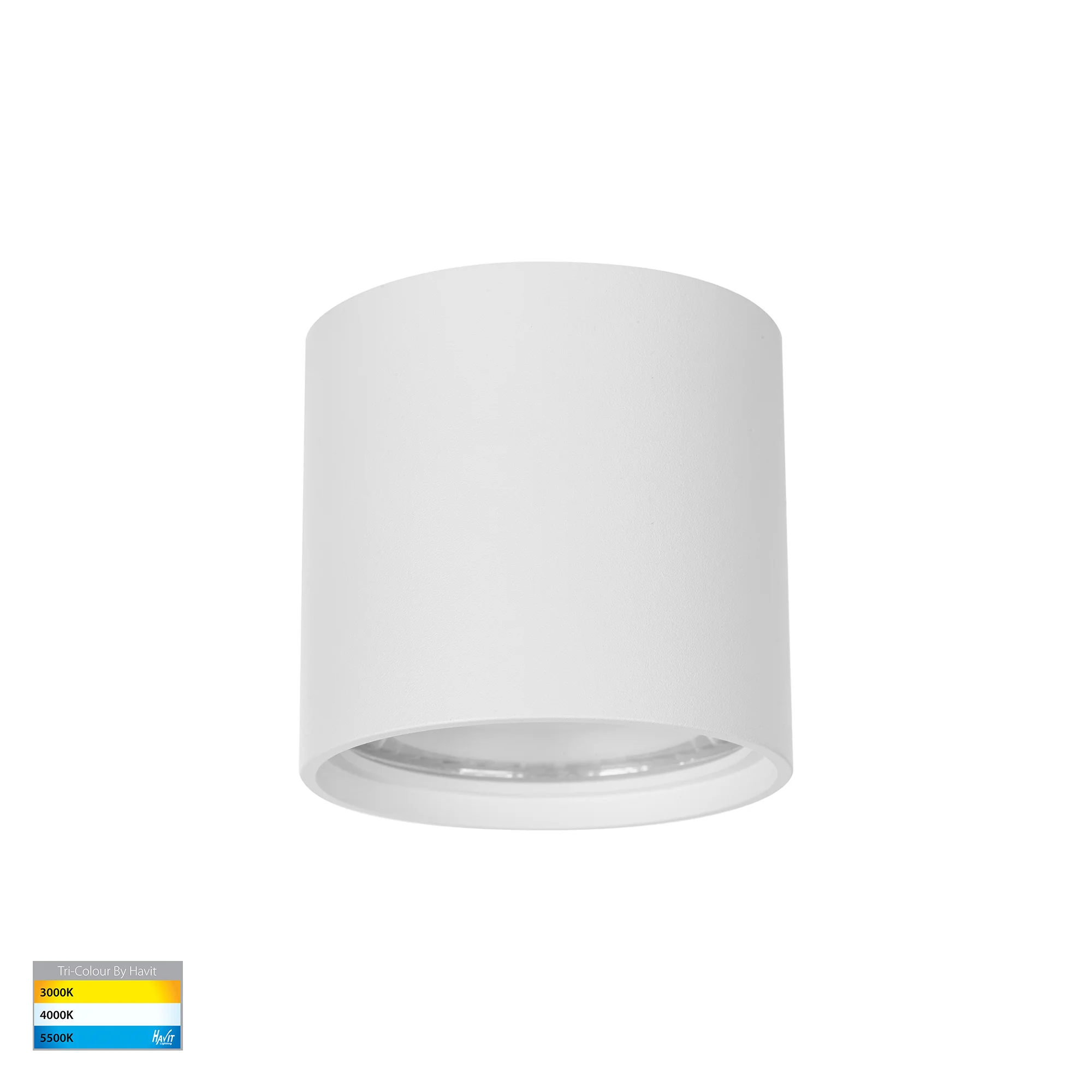

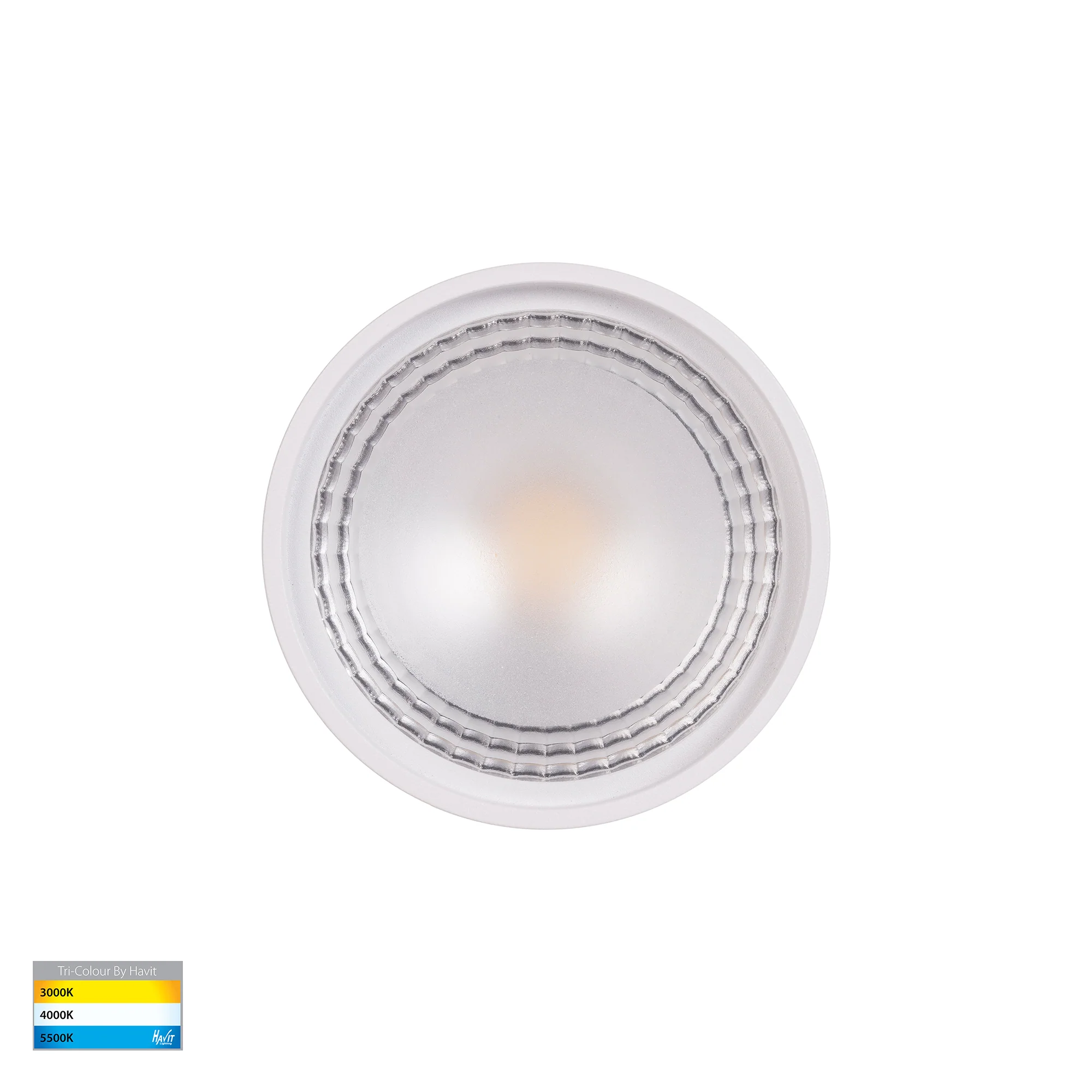

HV5802T-WHT | HV5802T-WHT-12V - Nella White 7w Surface Mounted LED Downlight

• Nella Surface mounted LED downlight
• Aluminium powder coated white finish
• 120° beam angle
• Triac Dimmable (240v Model Only)
• IP rating: IP54
• Input voltage: Available in either 12v DC or 240v AC
• TRI Colour
• 3000k, 4000k, 5500k
• Built-in 7w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

12v model must be used with a suitable 12v DC LED Driver - View Here

Optional Brass Attachment - View Here

Available in Dali Dimming through Havit Commercial View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5802T-WHT	3000k 4000k 5500k	525lm 560lm 540lm	7w 240v Built in LED	240v
HV5802T-WHT-12V	3000k 4000k 5500k	525lm 560lm 540lm	7w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

240v Installation Instructions

12v DC Installation Instructions
