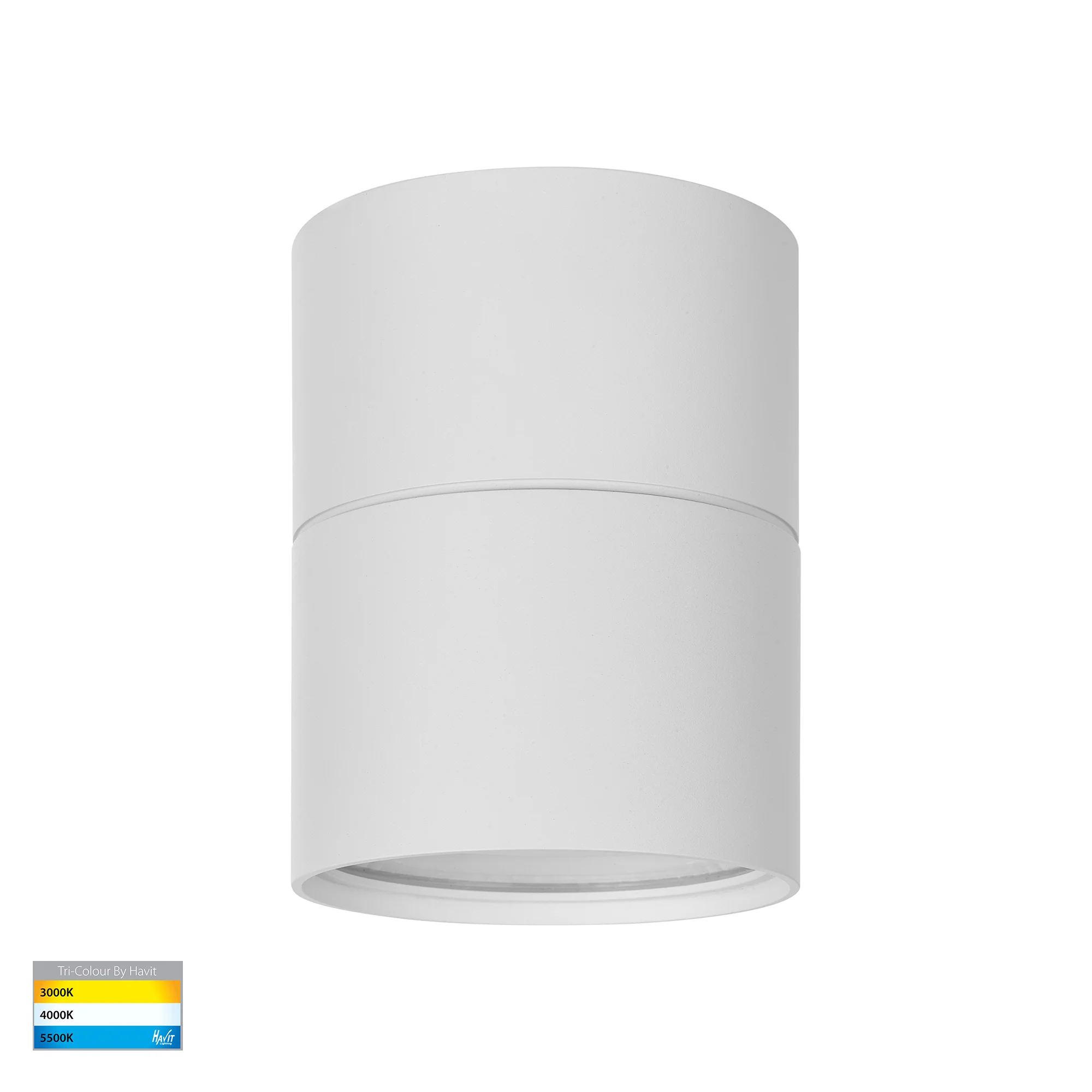

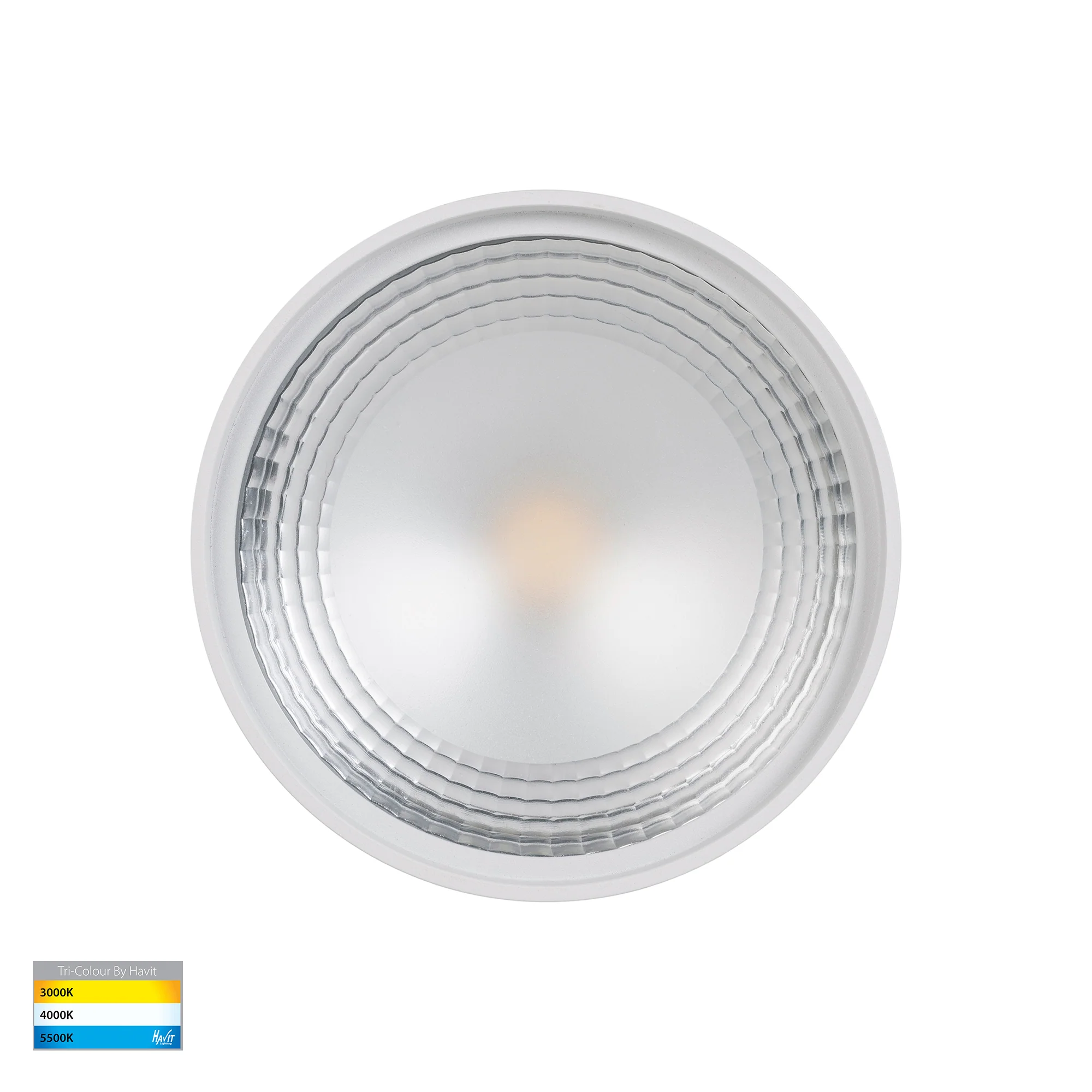

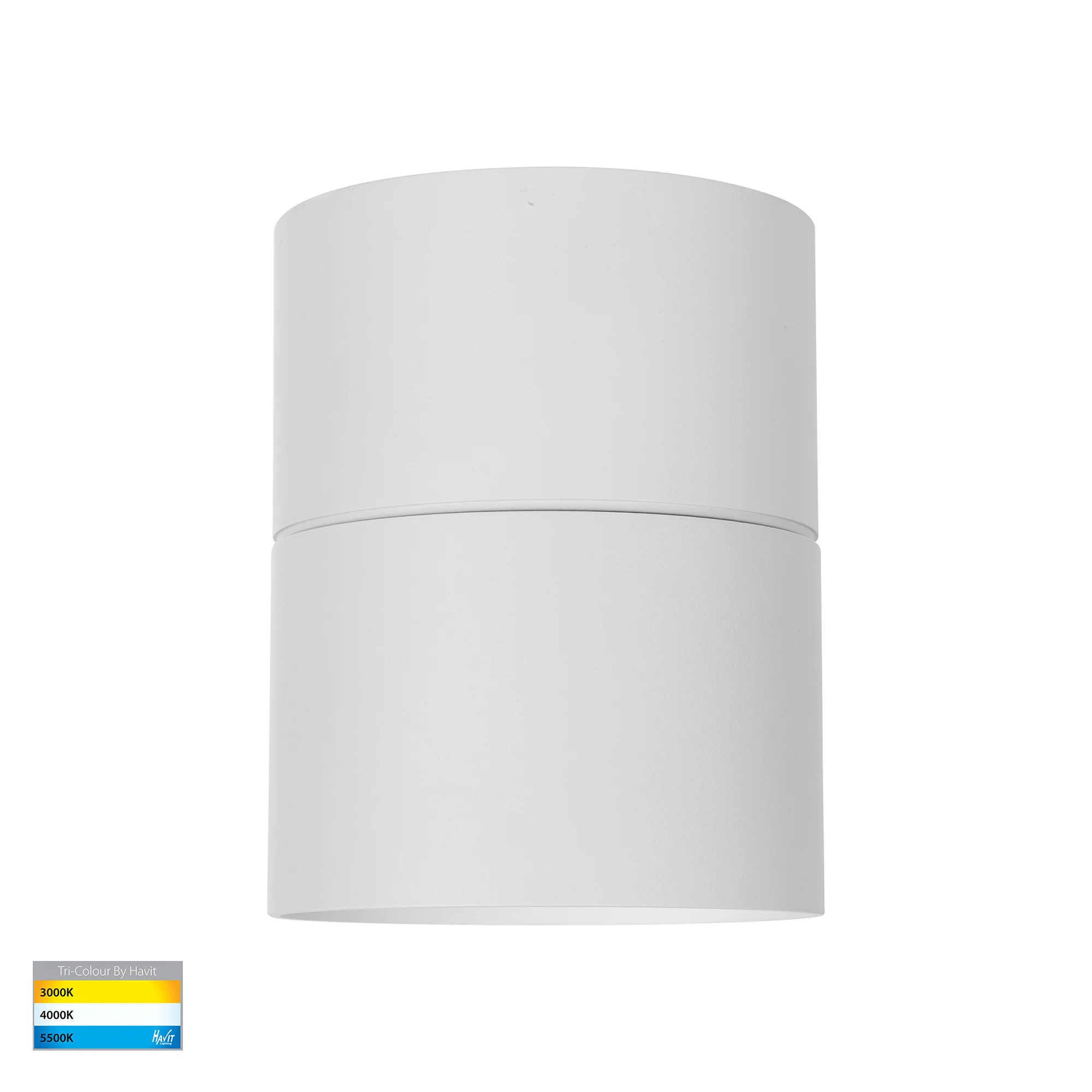

HV5803T-WHT-EXT | HV5803T-WHT-EXT-12V - Nella White 12w Surface Mounted LED Downlight with Extension

• Nella Surface mounted LED downlight
• Aluminium powder coated white finish
• 120° beam angle
• Triac Dimmable (240v Model Only)
• IP Rating: IP54
• Input voltage: Available in either 12v DC or 240v AC
• TRI Colour
• 3000k, 4000k, 5500k
• Built-in 12w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

12v model must be used with a suitable 12v DC LED Driver - View Here

Optional Brass Attachment - View Here

Available in Dali Dimming through Havit Commercial View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5803T-WHT-EXT	3000k 4000k 5500k	995lm 1125lm 1050lm	12w 240v Built in LED	240v
HV5803T-WHT-EXT-12V	3000k 4000k 5500k	995lm 1125lm 1050lm	12w 12v DC Built in LED	12v DC

Data Sheet

Data Sheets

IES Files

IES Files

Install Sheet

Installation Instructions
