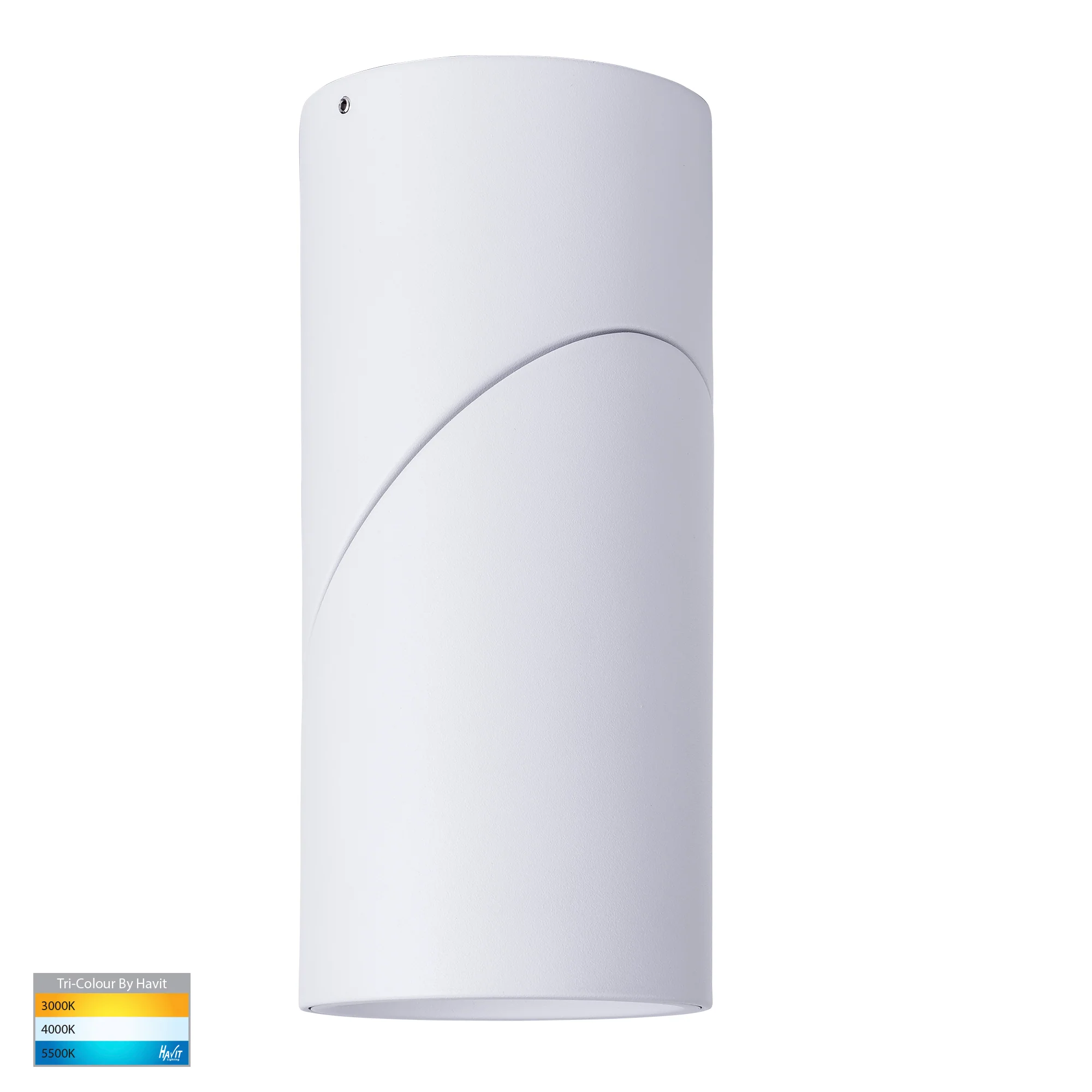

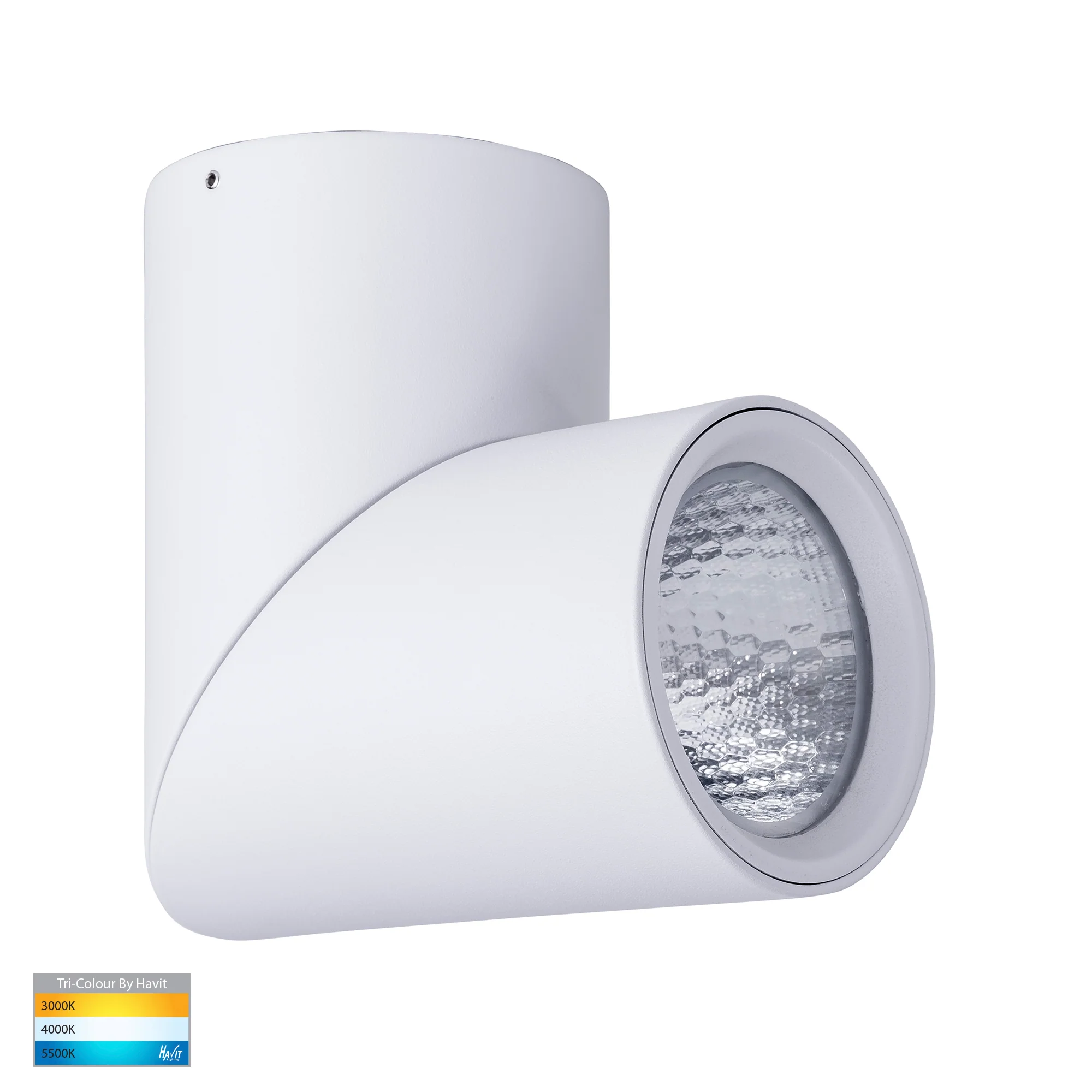

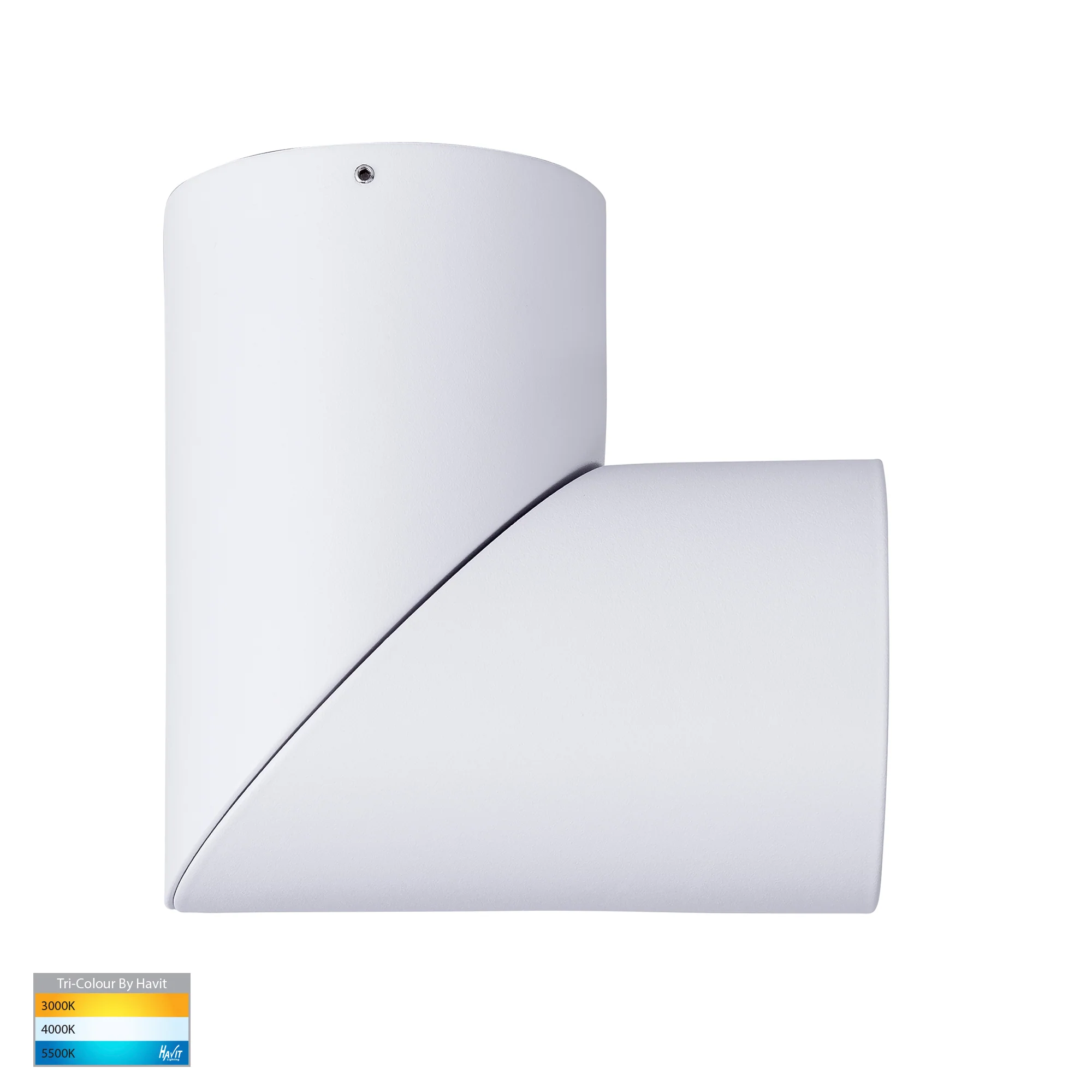

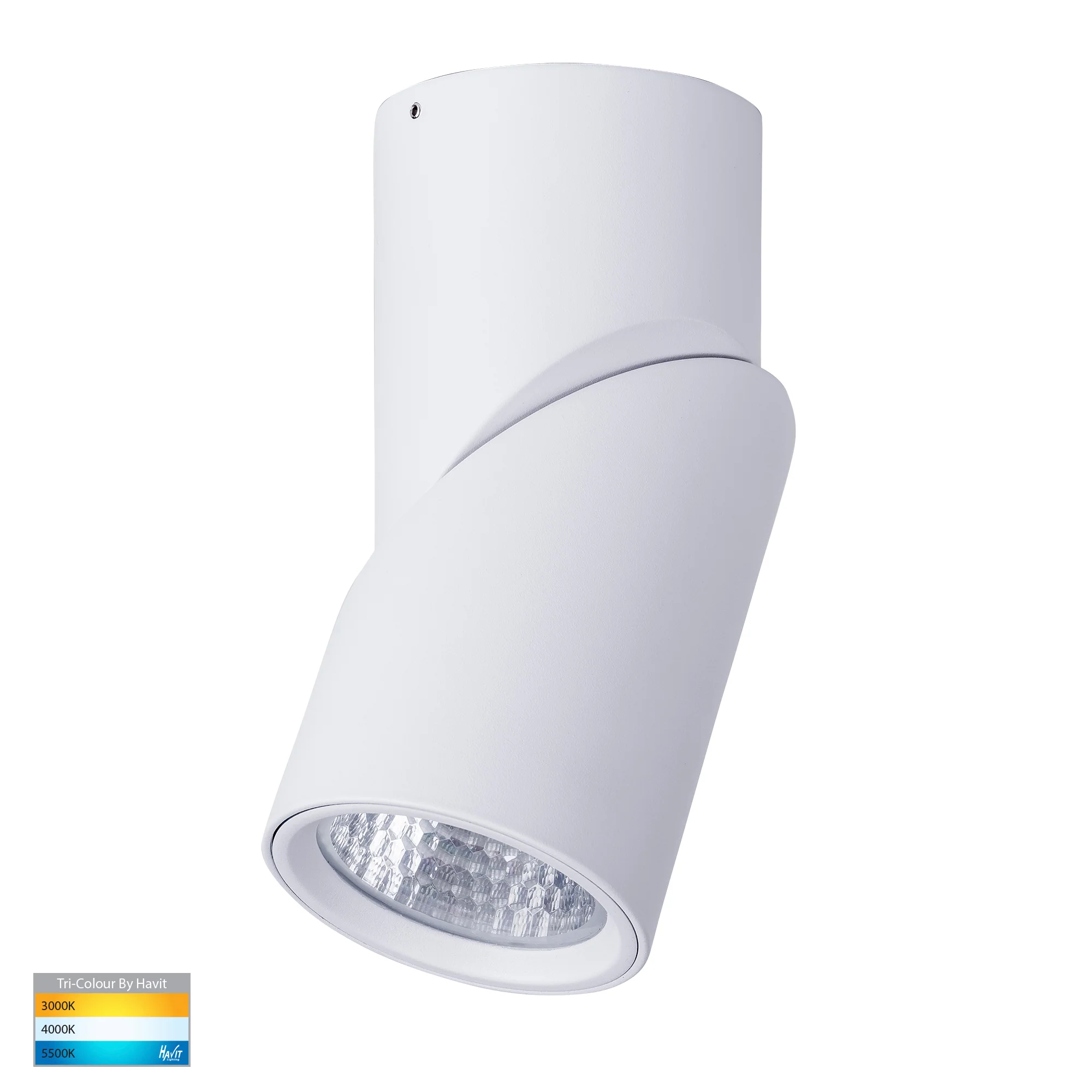

HV5824T-WHT | HV5824T-WHT-12V - Nella White 18w Surface Mounted Rotatable LED Downlight

• Nella Surface mounted rotatable LED downlight
• Aluminium powder coated white finish
• 60° beam angle
• Triac Dimmable (240v Model Only)
• TRI Colour
• 3000k, 4000k, 5500k
• IP rating: IP54
• Input voltage: Available in 12v DC or 240v AC
• Built in 18w LED
• 3 Years replacement warranty (items ordered after 01/01/22)

12v model must be used with a suitable 12v DC LED Driver - View Here

Available in Dali Dimming through Havit Commercial View Here

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV5824T-WHT	3000k 4000k 5500k	1440lm 1530lm 1620lm	18w 240v Built in LED	240v
HV5824T-WHT-12V	3000k 4000k 5500k	1440lm 1530lm 1620lm	18w 12v DC Built in LED	12v DC

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

240v Installation Instructions

12v DC Installation Instructions
