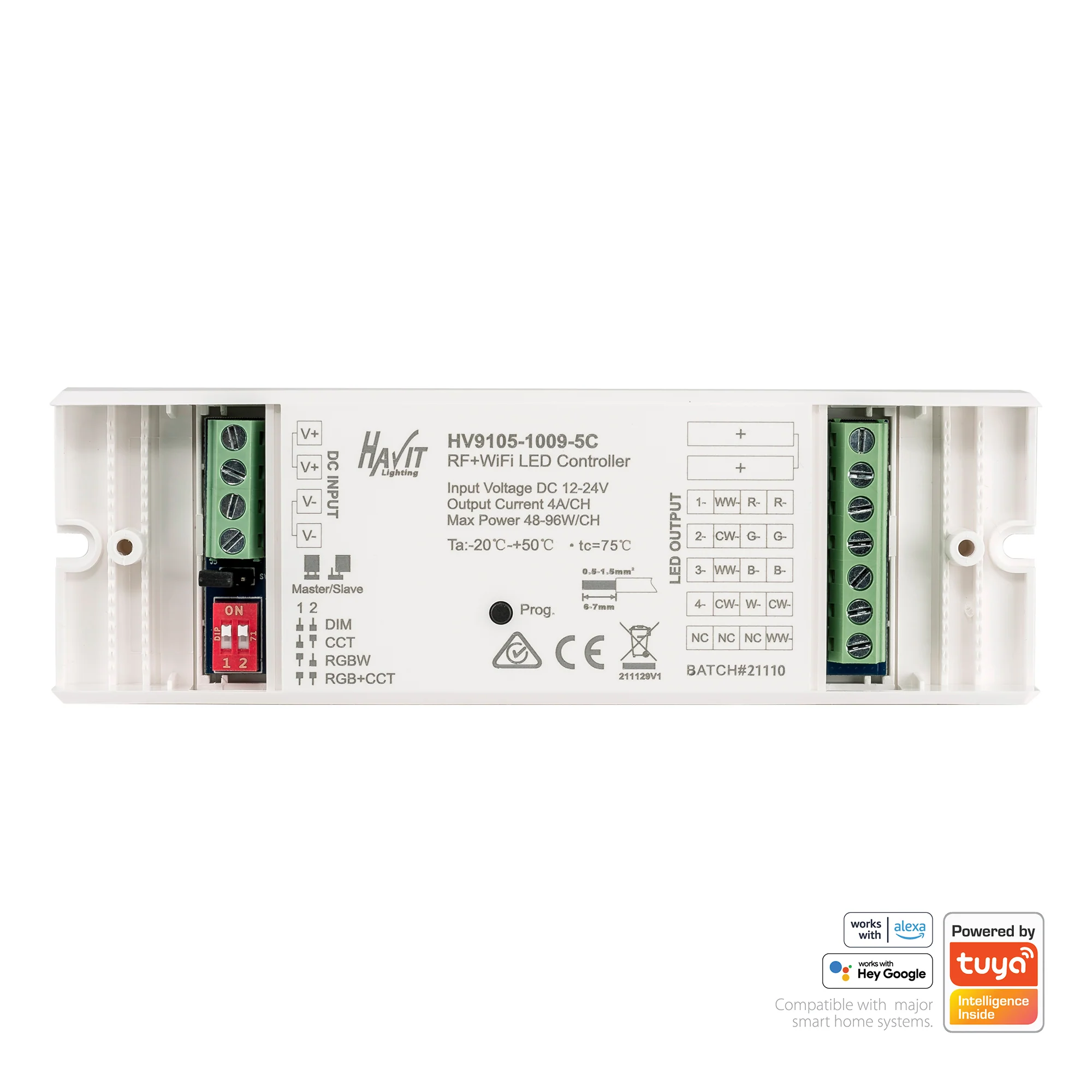

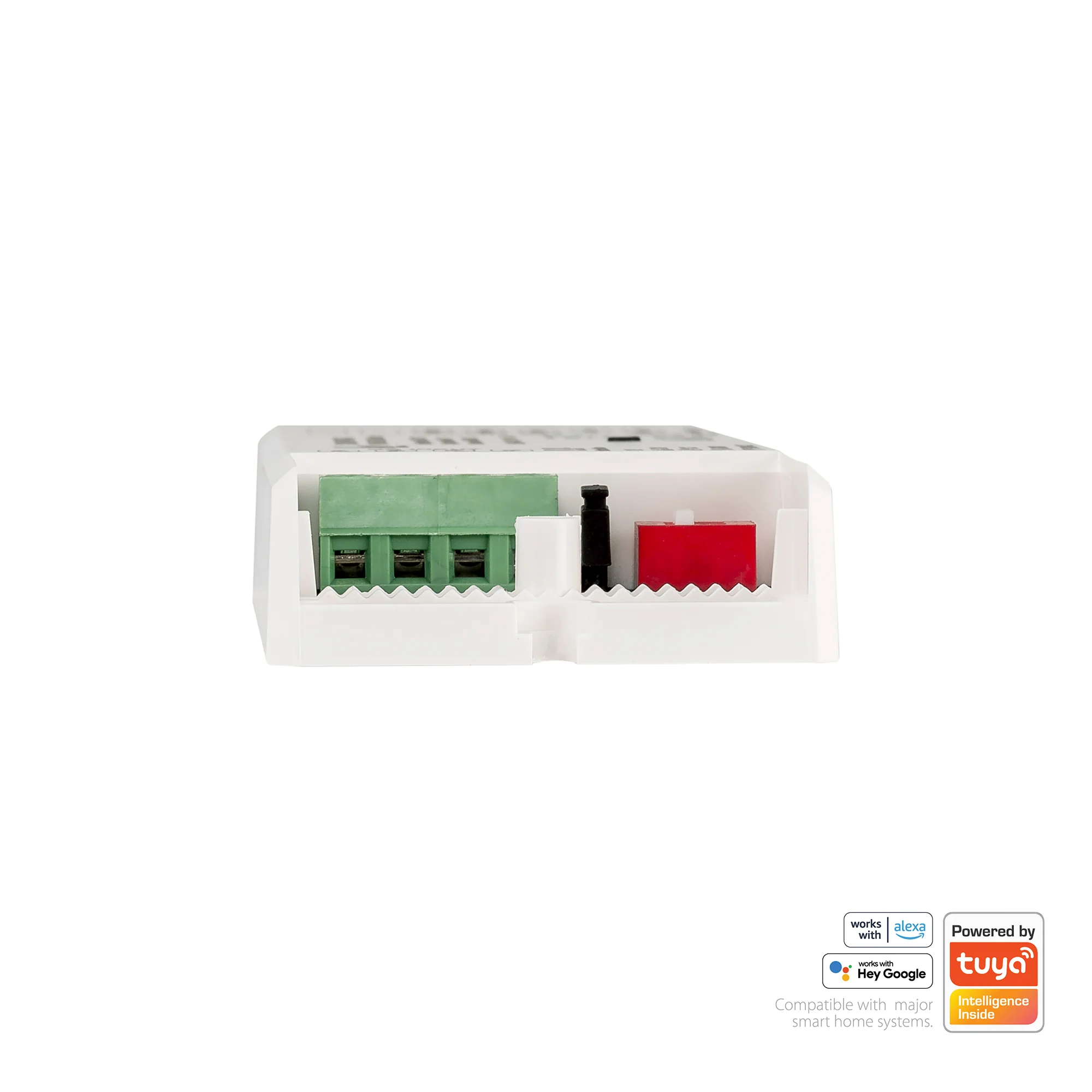

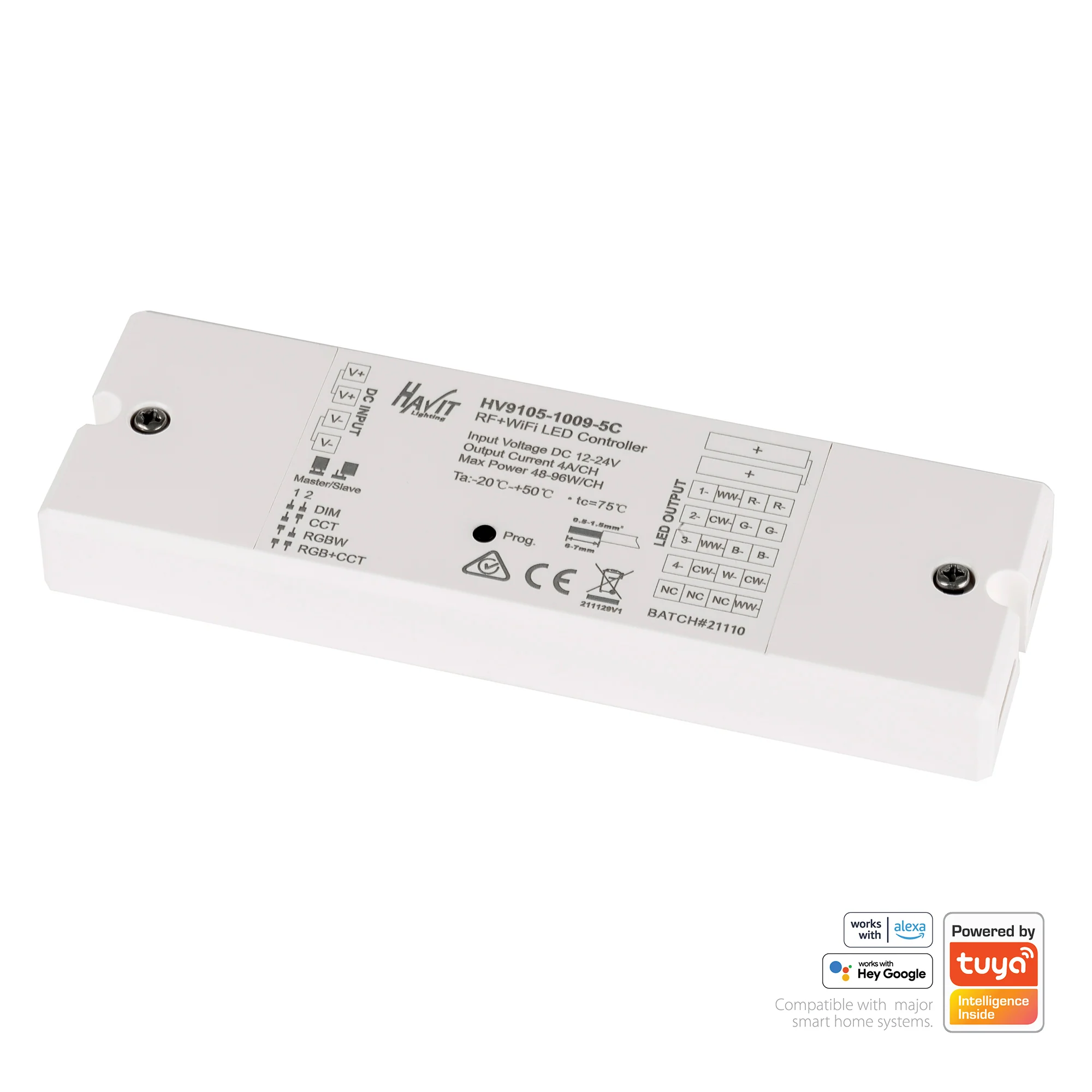

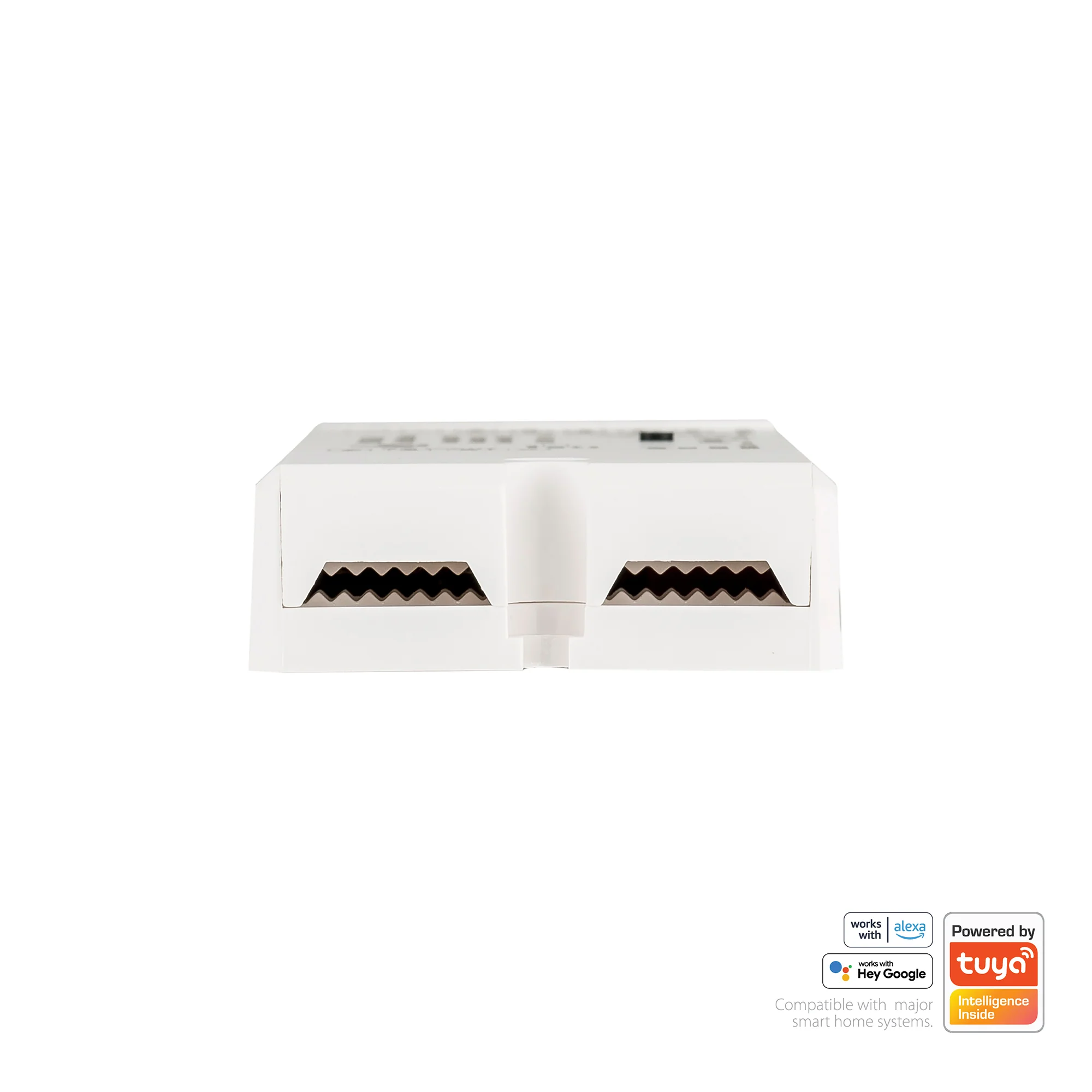

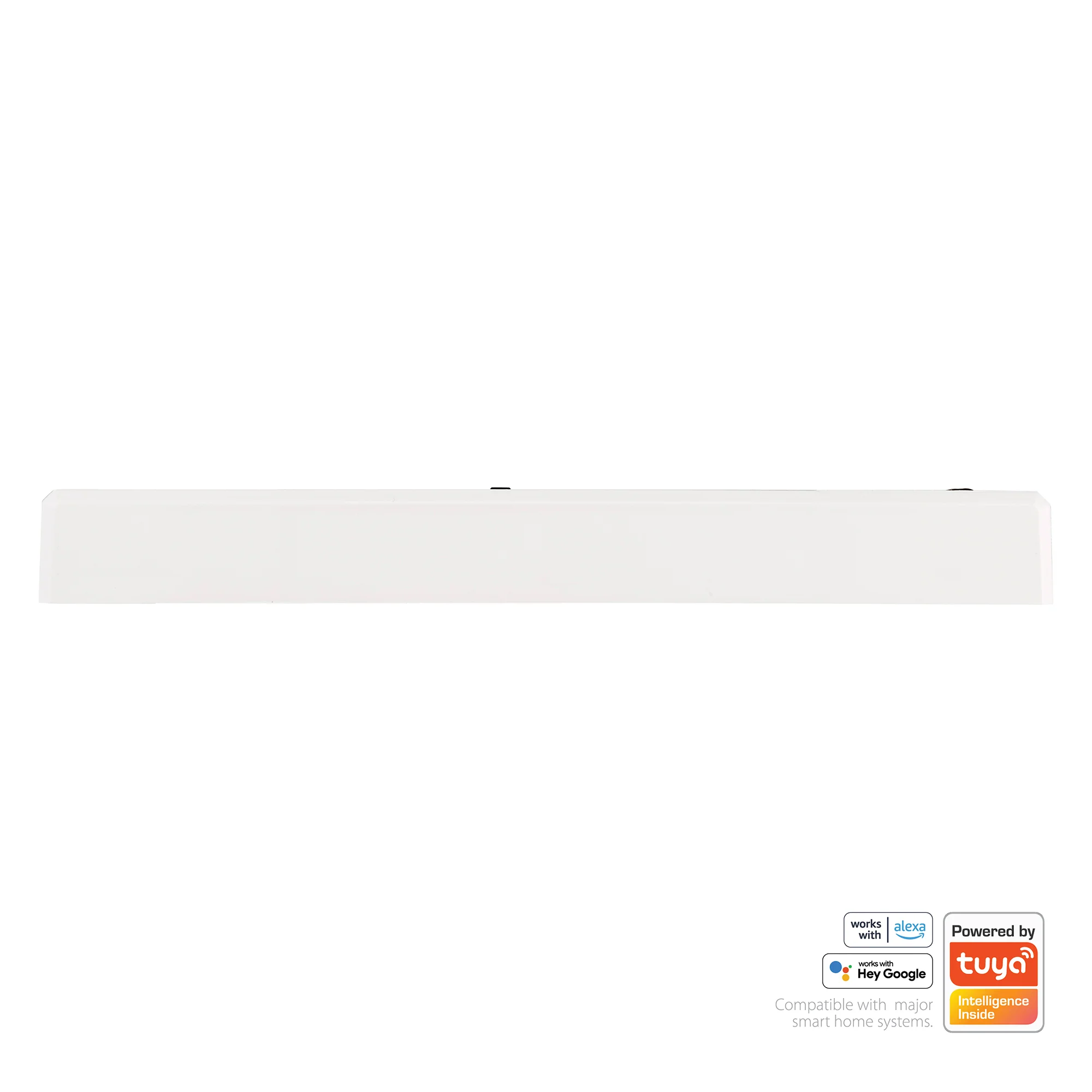

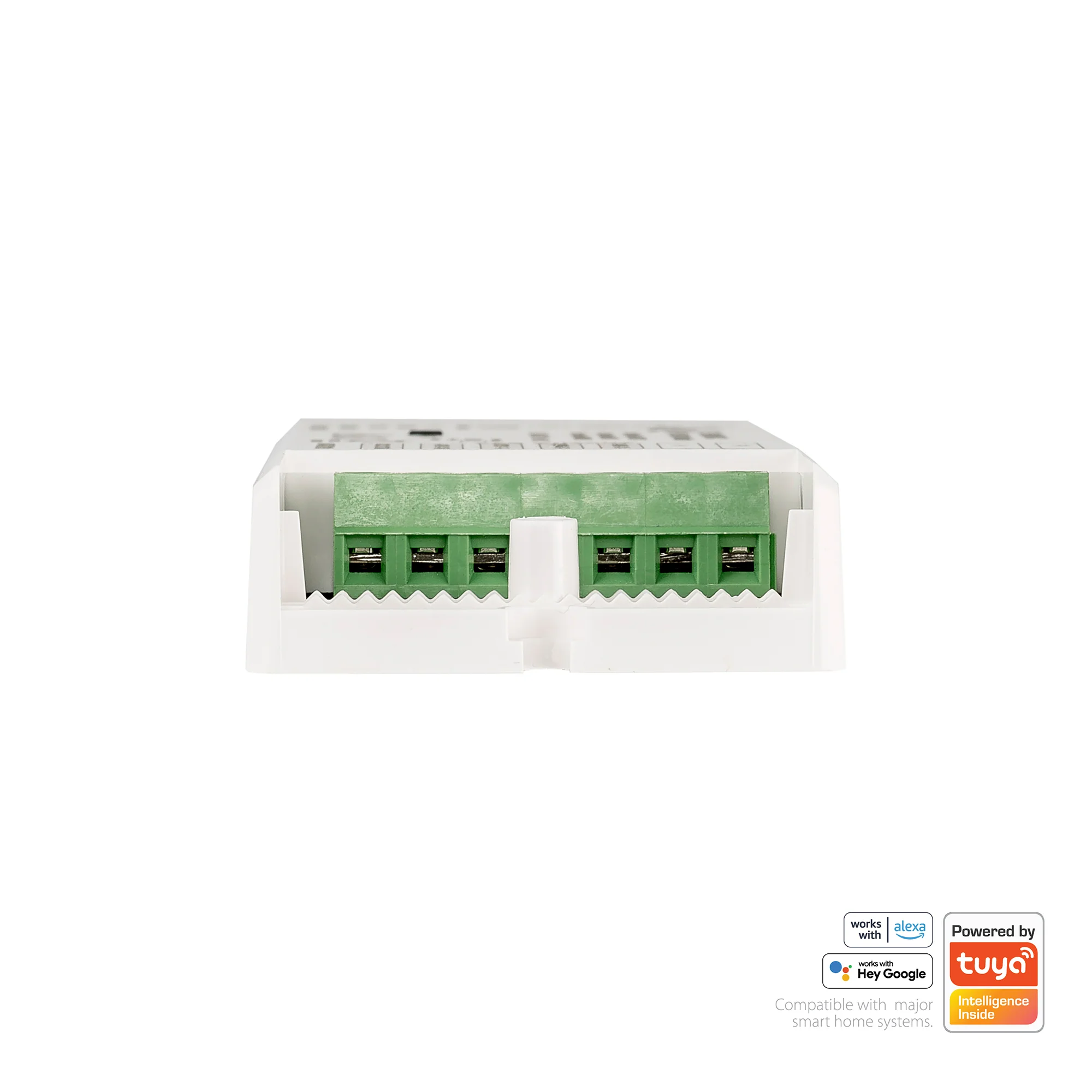

HV9105-1009-5C - WIFI + RF LED Strip Receiver

• WIFI + RF LED Strip Receiver
• Can be used with Remote Controllers, Touch Panels or TUYA APP
• Works with Google Home & Amazon Alexa
• Can be used with most types of LED Strip

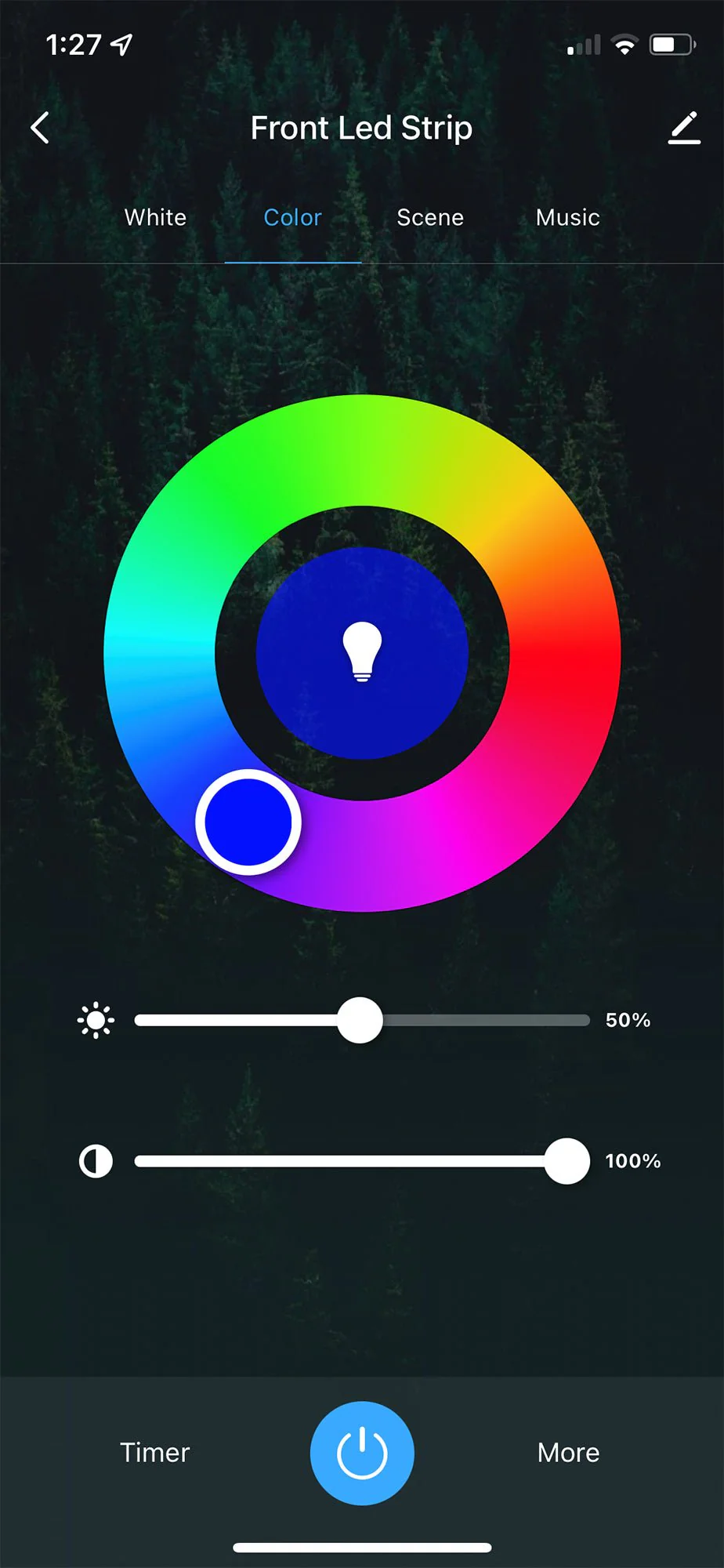

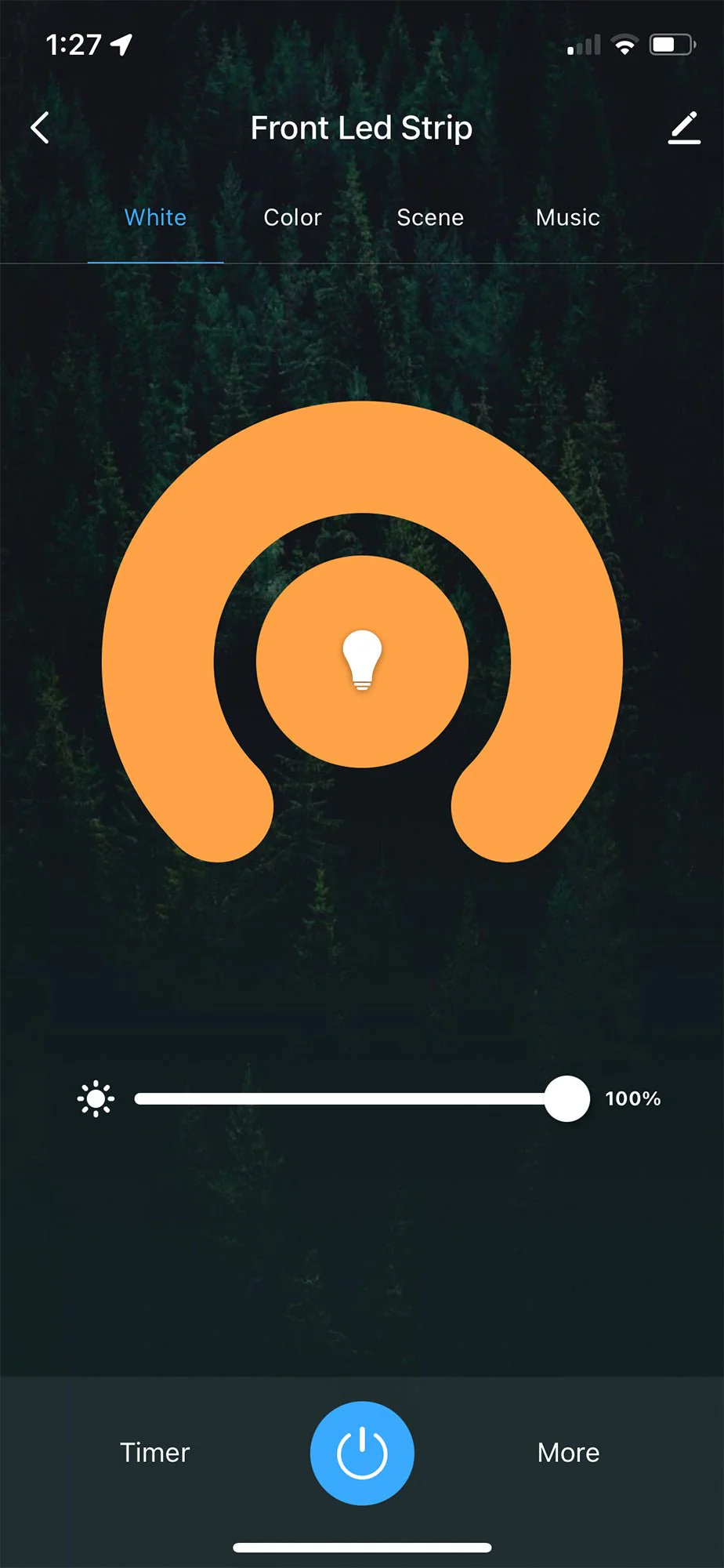

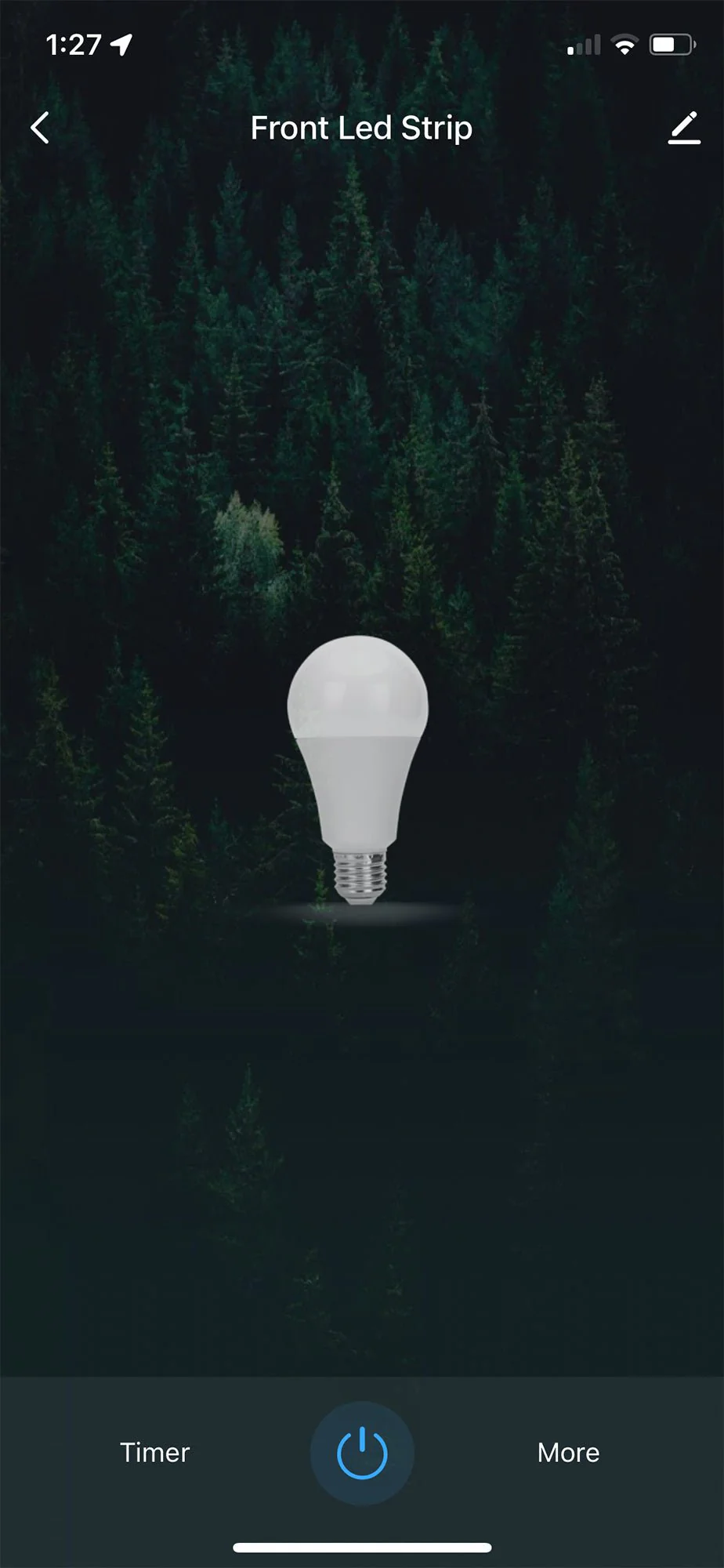

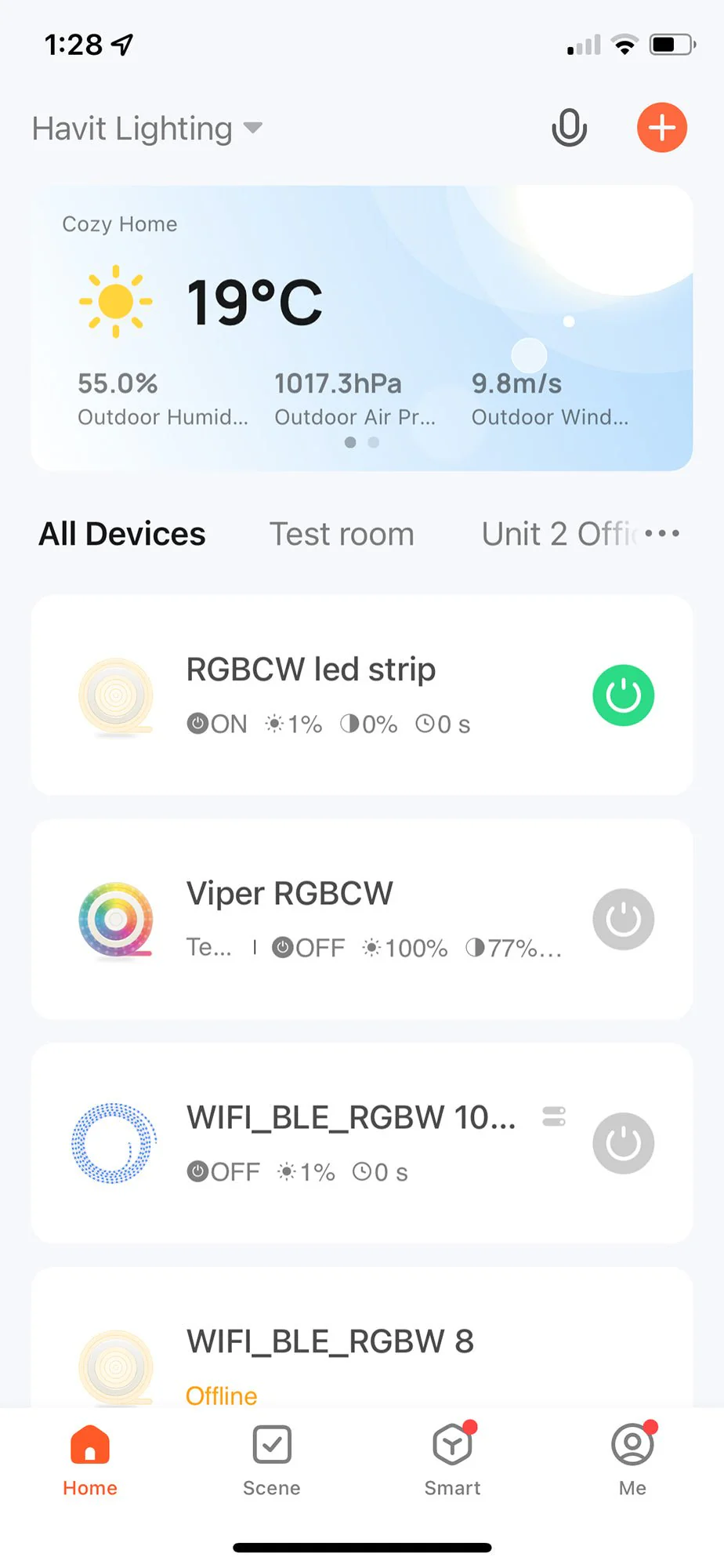

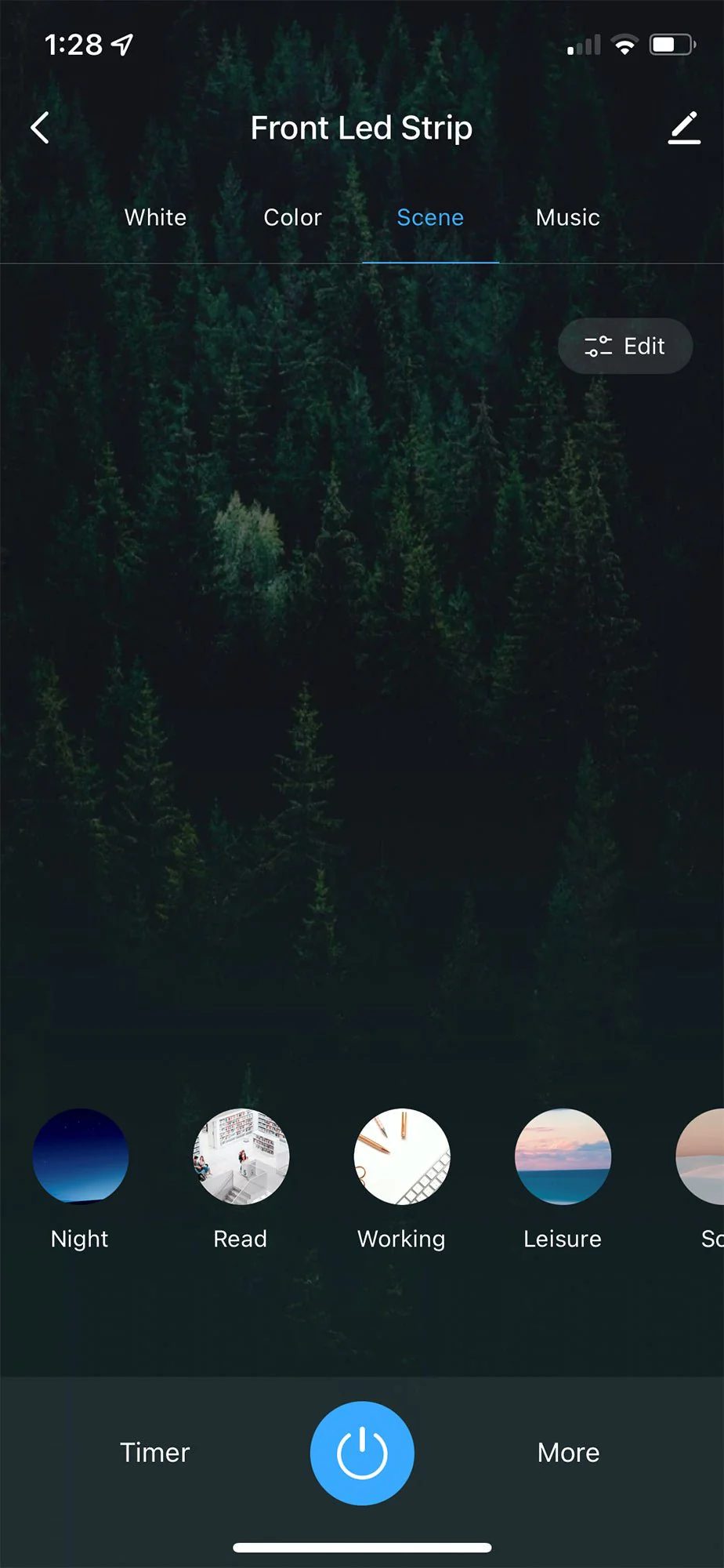

• Has Music Function using APP
• Input Voltage: 12-24v DC
• Output Power: 5CH x 4A (12v DC = 240W | 24v DC = 480W)
• Operation Frequency 2.4GHZ
• IP Rating: IP20
• Max 8 Controllers can be paired with 1 Receiver
• 3 Years replacement warranty (items ordered after 01/01/22)

Data Sheet

Data Sheet

Install Sheet

Installation Instructions

Video Instructions

Instructional Video

Compatible Controllers

Single Colour Touch Panel	Single Colour Remote
HV9101-2830A	HV9102-2819DIM
RGBC OR RGBW TOUCH PANEL	RGBC OR RGBW REMOTE
HV9101-2820	HV9102-2819RGBW
RGBCW TOUCH PANEL	RGBCW REMOTE
HV9102-2834-5C	HV9102-2858Z4-5C
CT TOUCH PANEL	CT REMOTE
HV9101-2830B	HV9102-2819CCT
