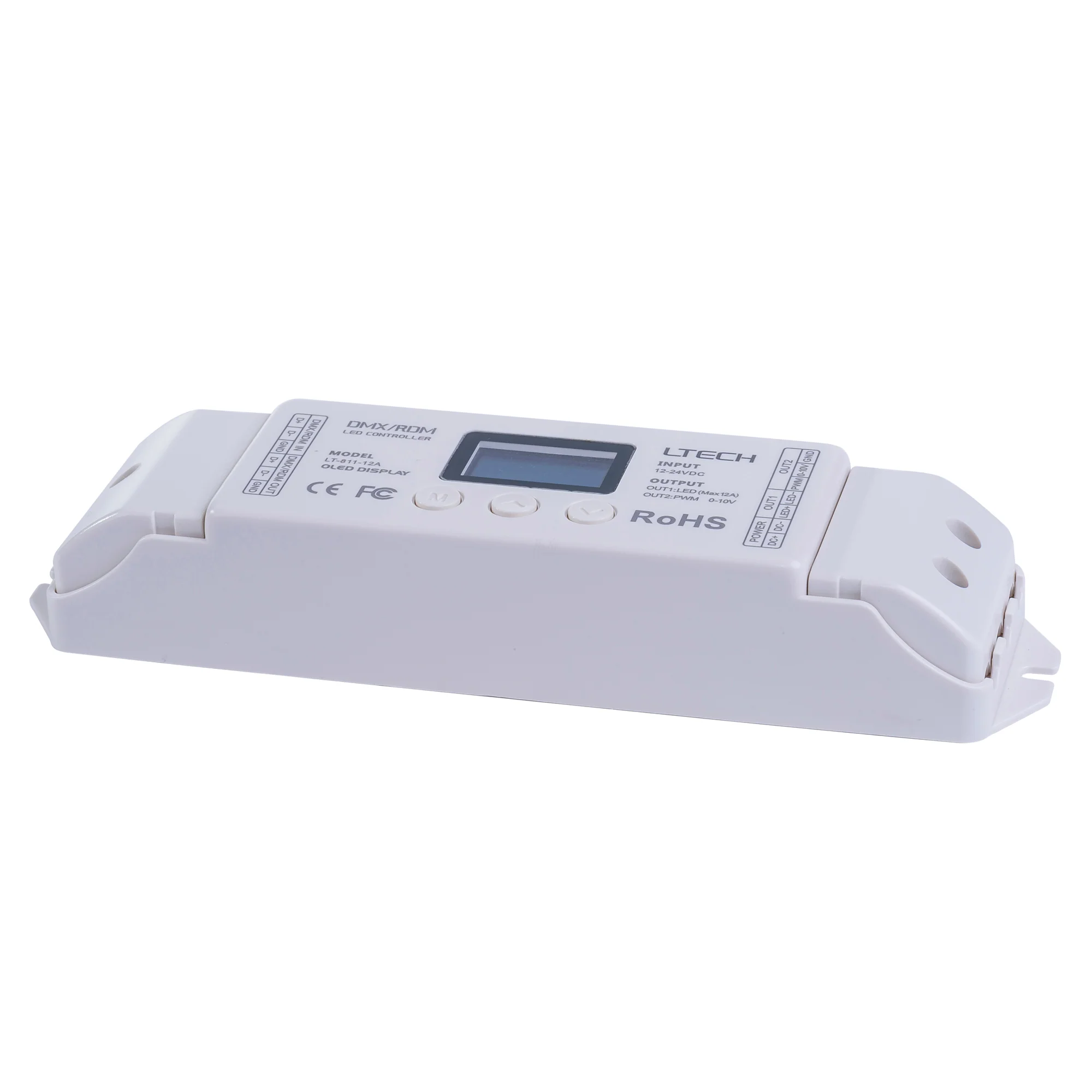

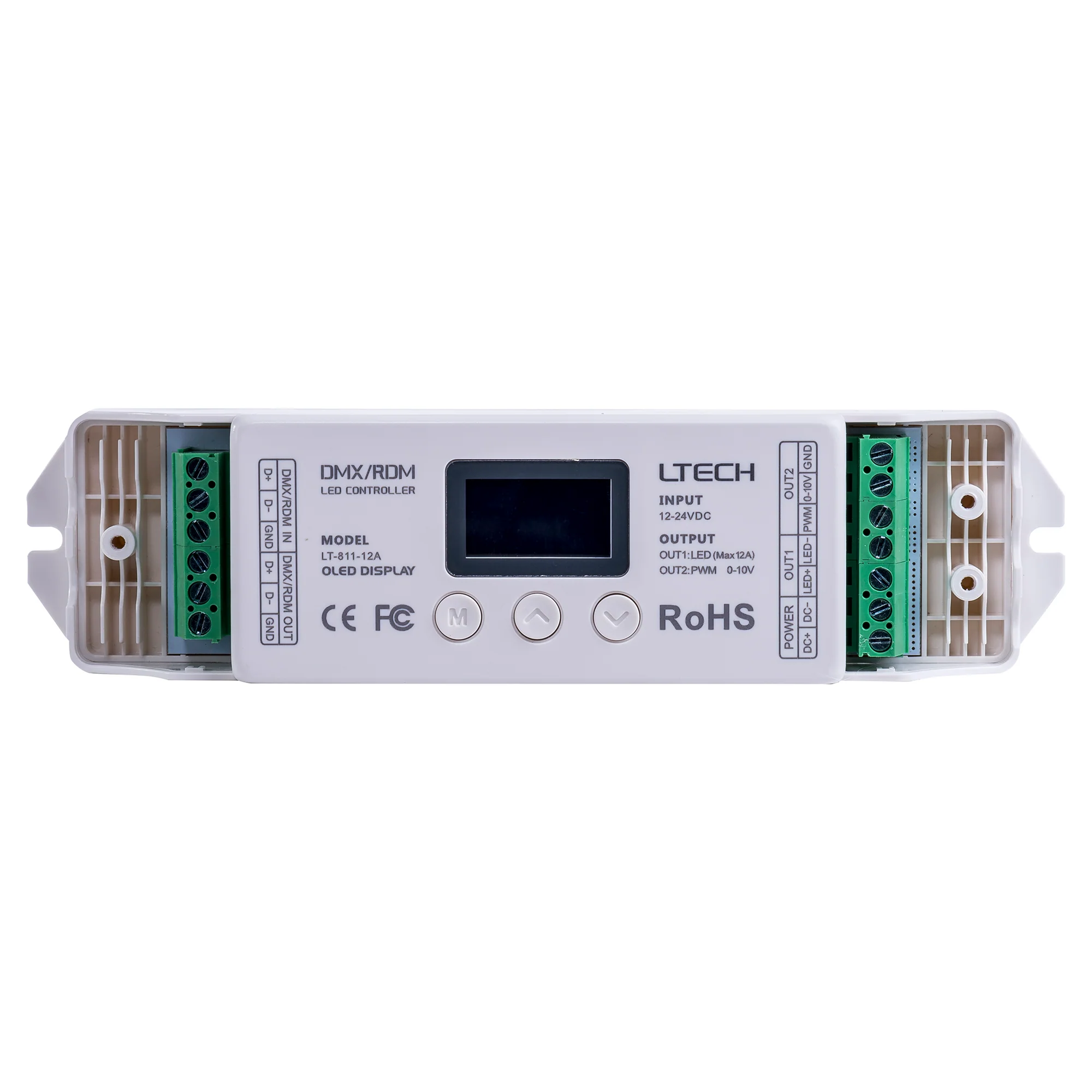

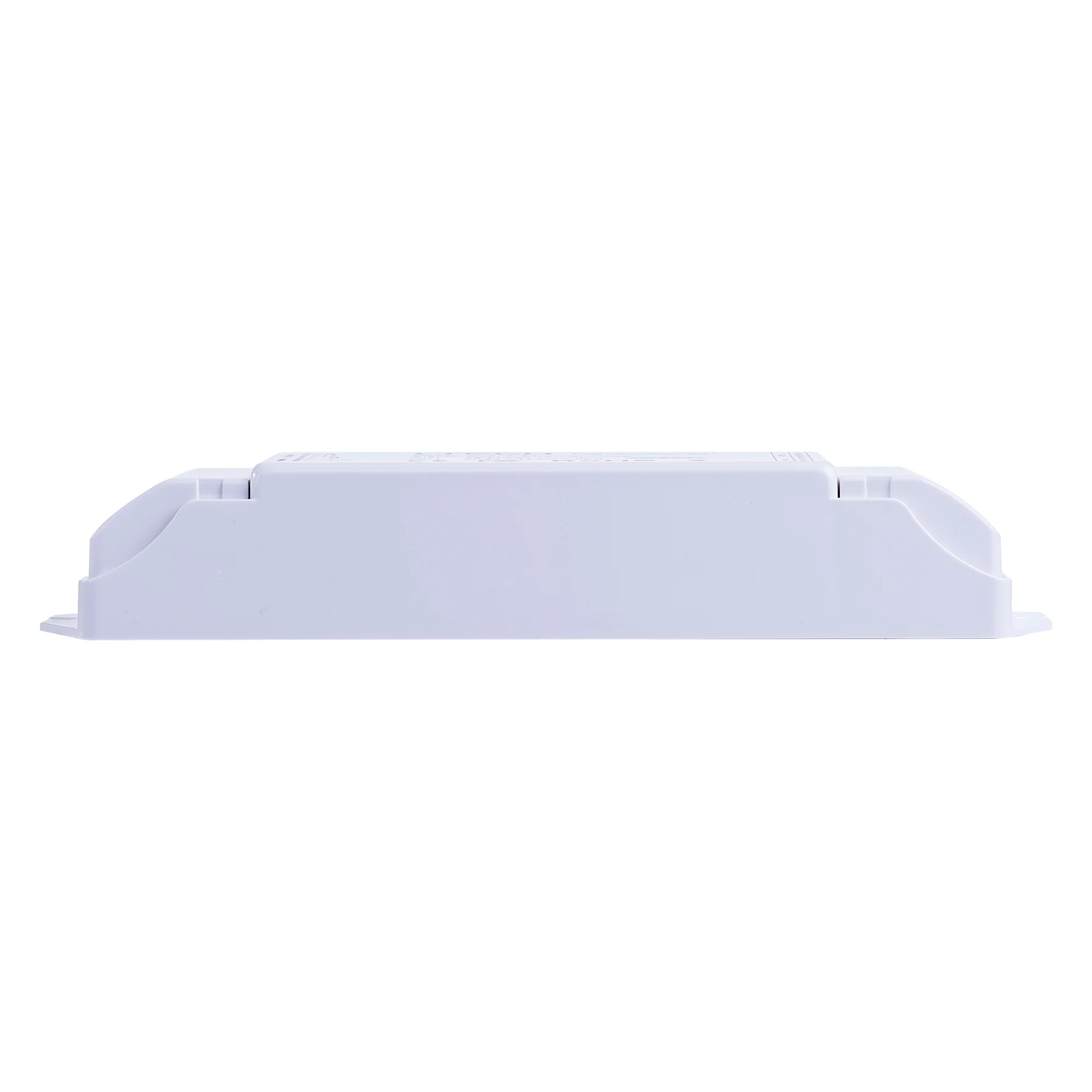

HV9109-LT-811-12A - DMX Single Colour LED Strip Controller

• DMX LED strip controller
• For use with Single Colour LED strip
• Input signal: DMX512

• Max Load Current: 12A x 1CH + 0-10V X 1CH + 10V PWM X 1CH

• Dimming Range: 0-100%
• IP rating: IP20
• Input voltage: 12v DC or 24v DC
• Max Load: 12v DC 144w / 24v DC 288w
• 3 Years replacement warranty (items ordered after 01/01/22)

Data Sheet

Data Sheet

Install Sheet

Installation Instructions
