HV9693-1806 - Shallow Square Bendable Aluminium Profile

• Bendable Aluminium Profile For LED Strip
• Silver Aluminium Finish
• UV Stabilised PC Diffuser

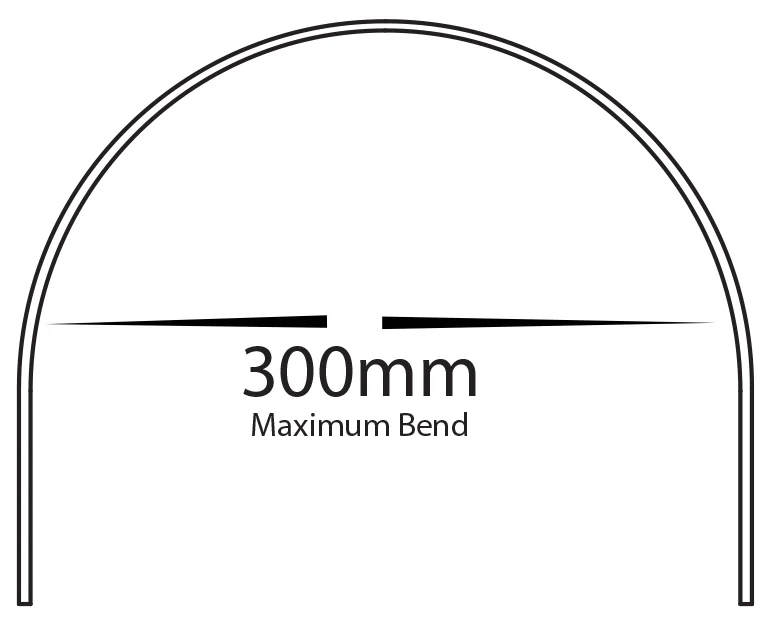

• 300mm Maximum Bend
• Bendable both ways: Allow 20mm to diffuser length when bending inwards.
• IP rating: IP20

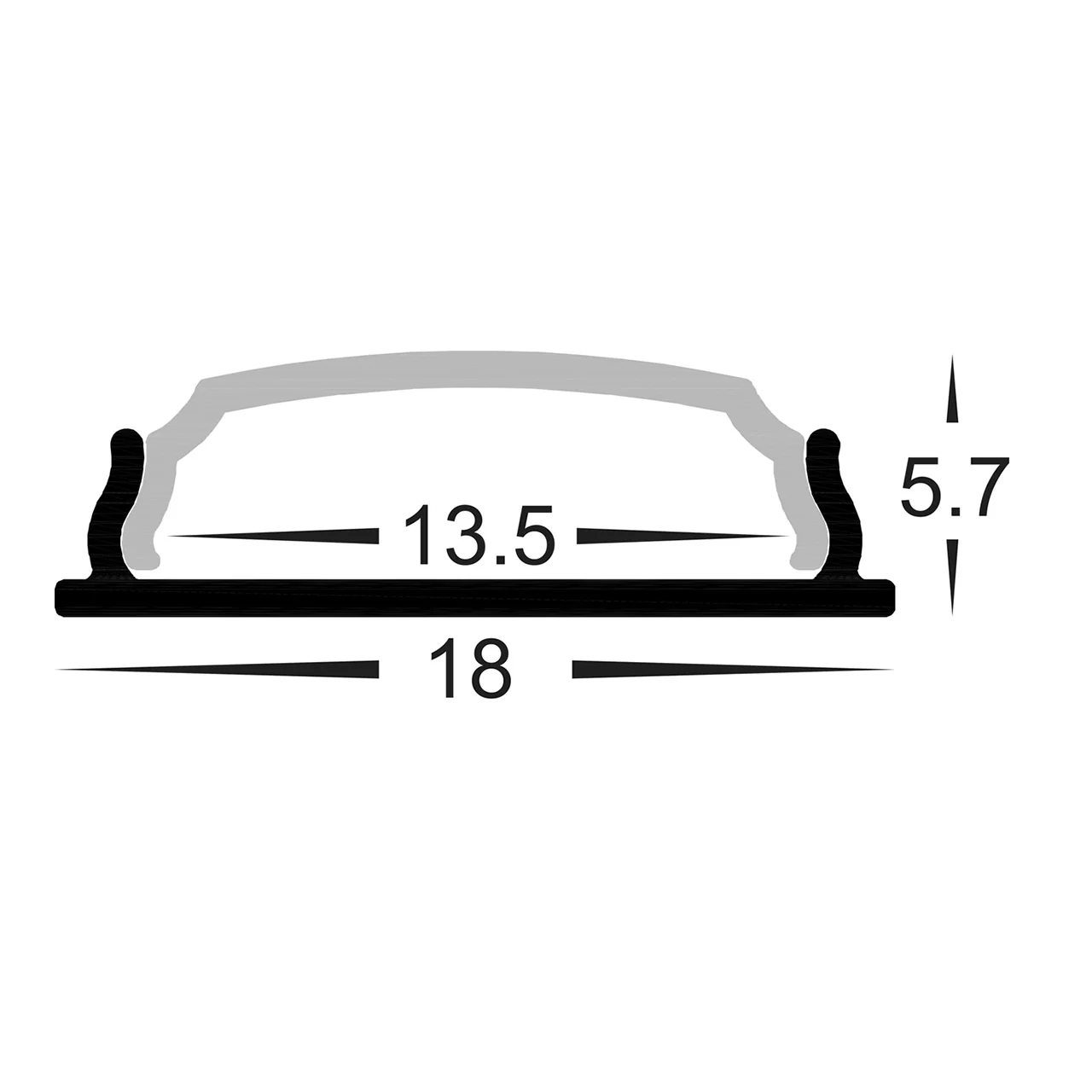

• Size: 18mm x 6mm
• Sold Per Half Metre (Custom Cuts Available)
• Long Run Diffuser available - Max. 20m
• Maximum Length of 3 Metres
• 3 years replacement warranty (items ordered after 01/01/22)

Please Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.

Powder Coating available in Black or White at an additional cost please contact our Sales Office for enquiries

Click here to view compatible LED Strip

Product Information

Part Number	Included

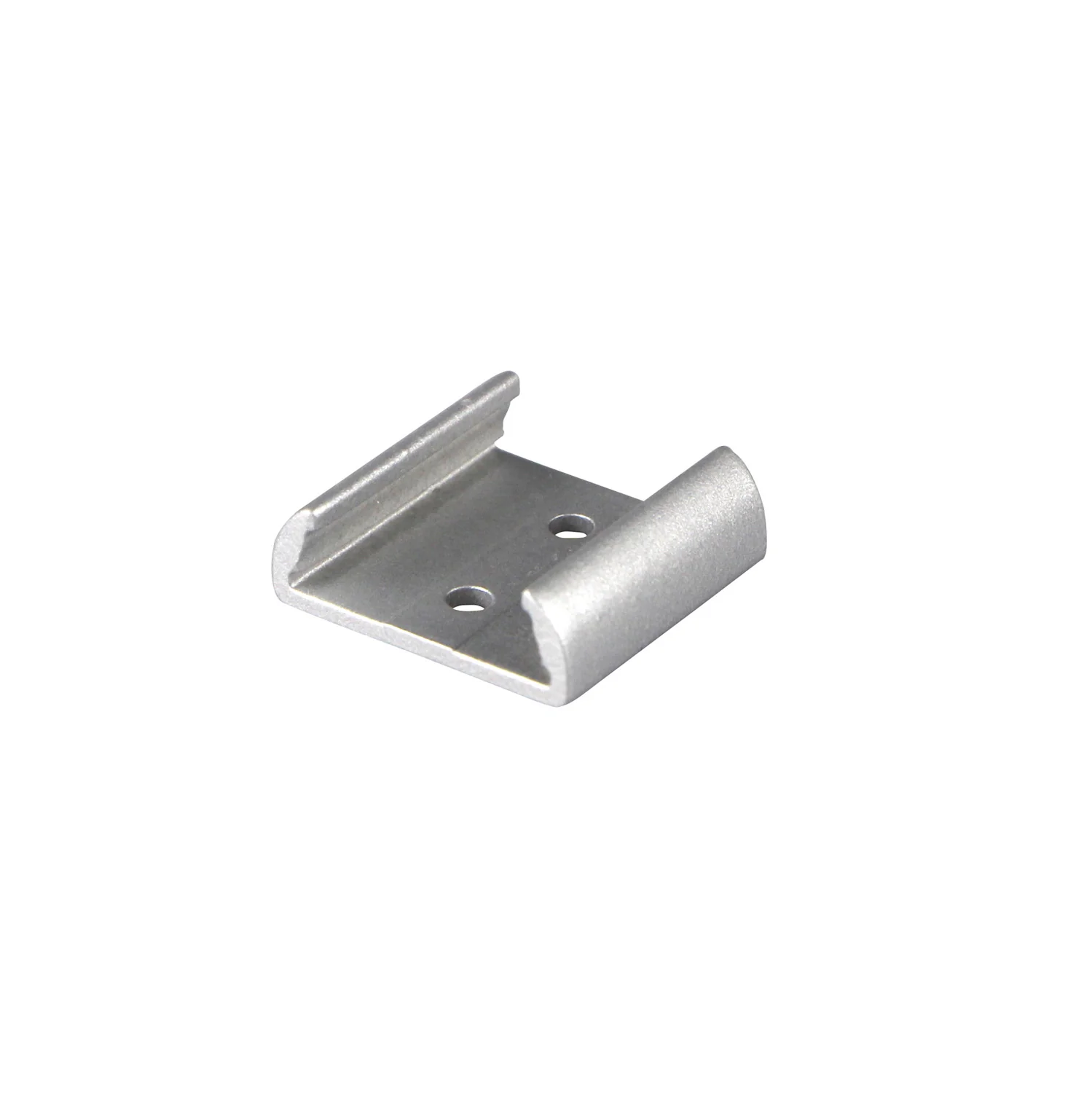

HV9693-1806	Custom Cut Length: Supplied with 2x Mounting Clips Per Metre + 2x End Caps Per Length
HV9693-1806-3M	3m Length: Supplied with 6x End Caps + 6x Mounting Clips Per Length

Data Sheet

Download
