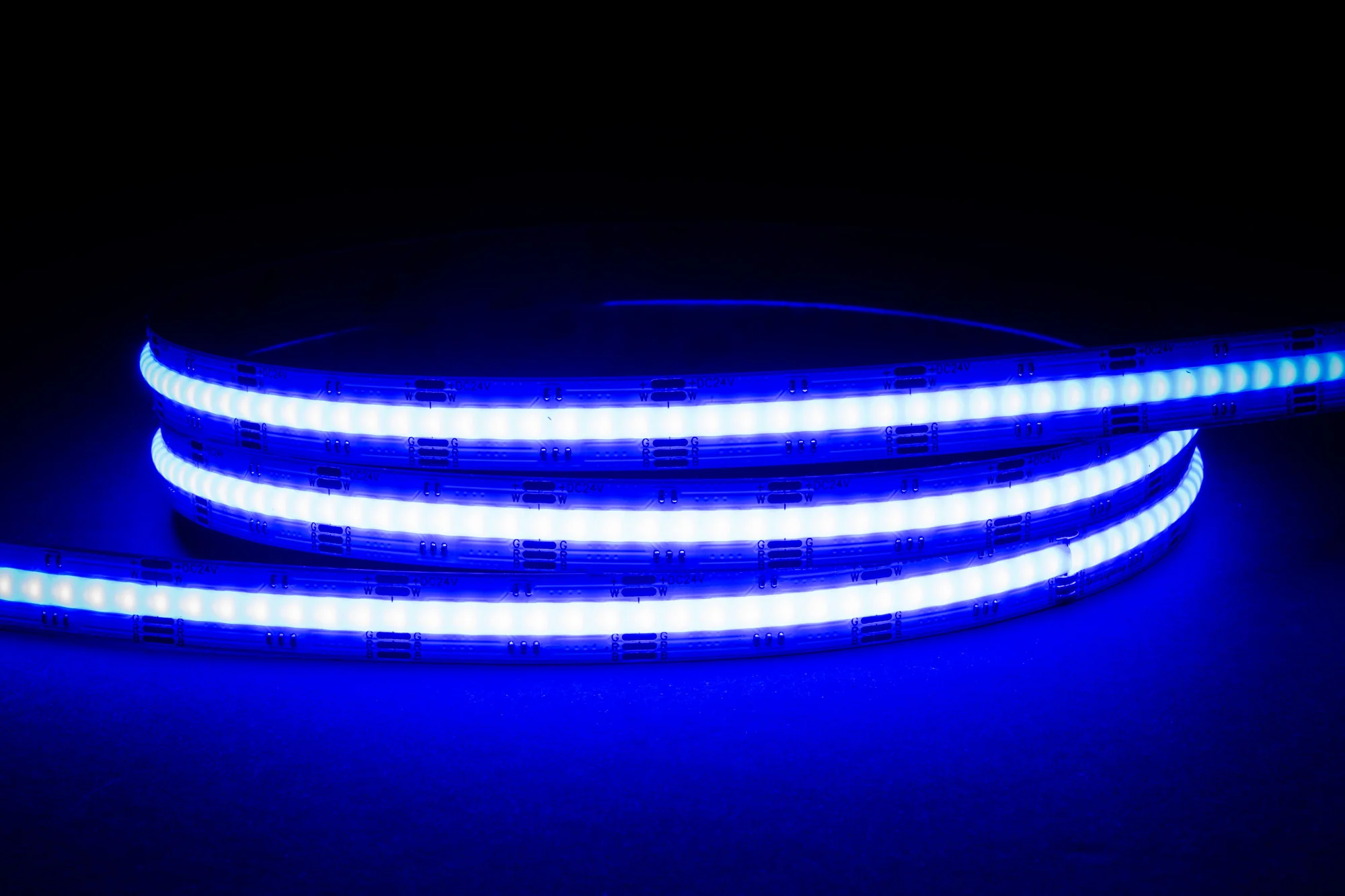

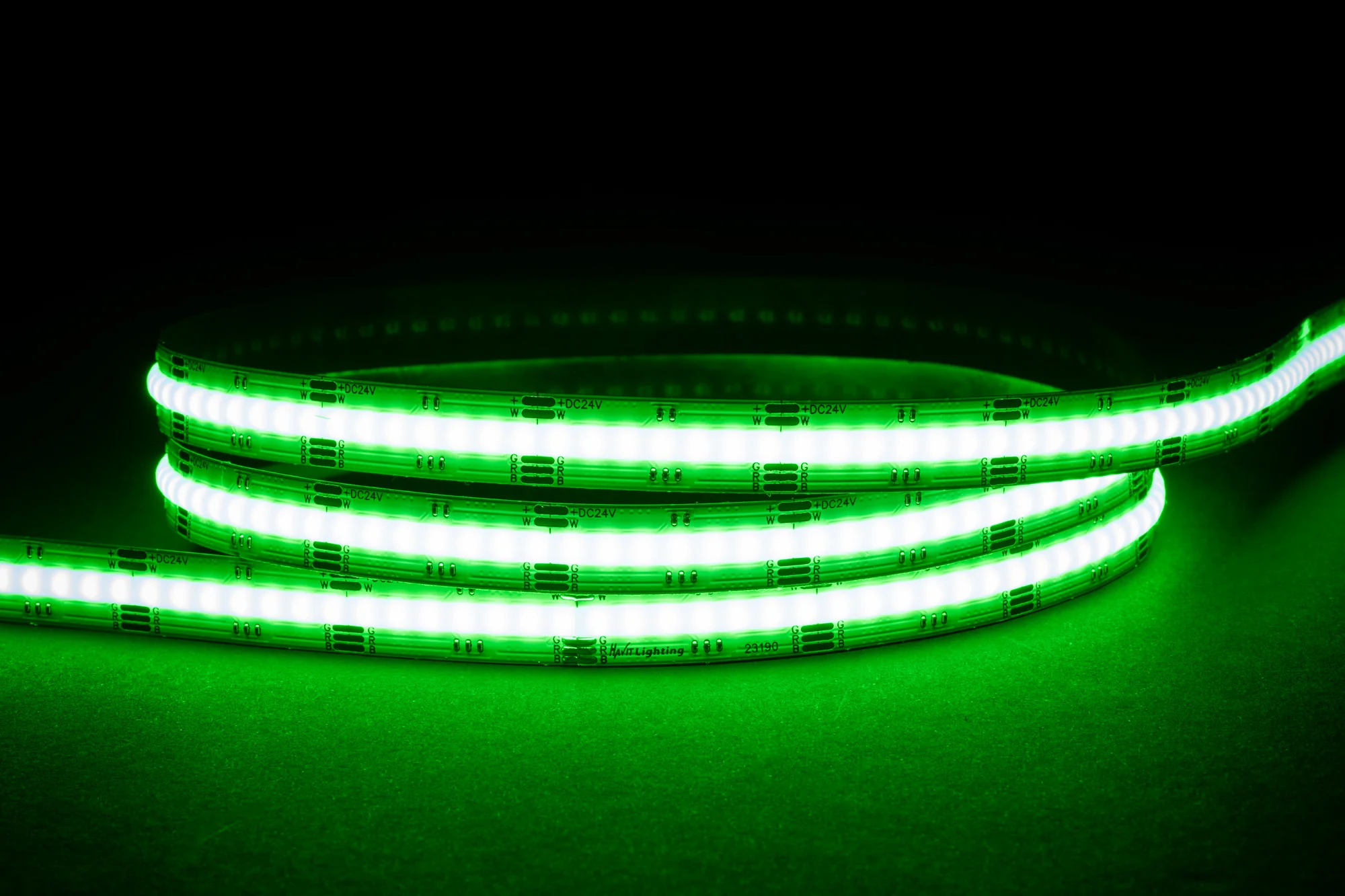

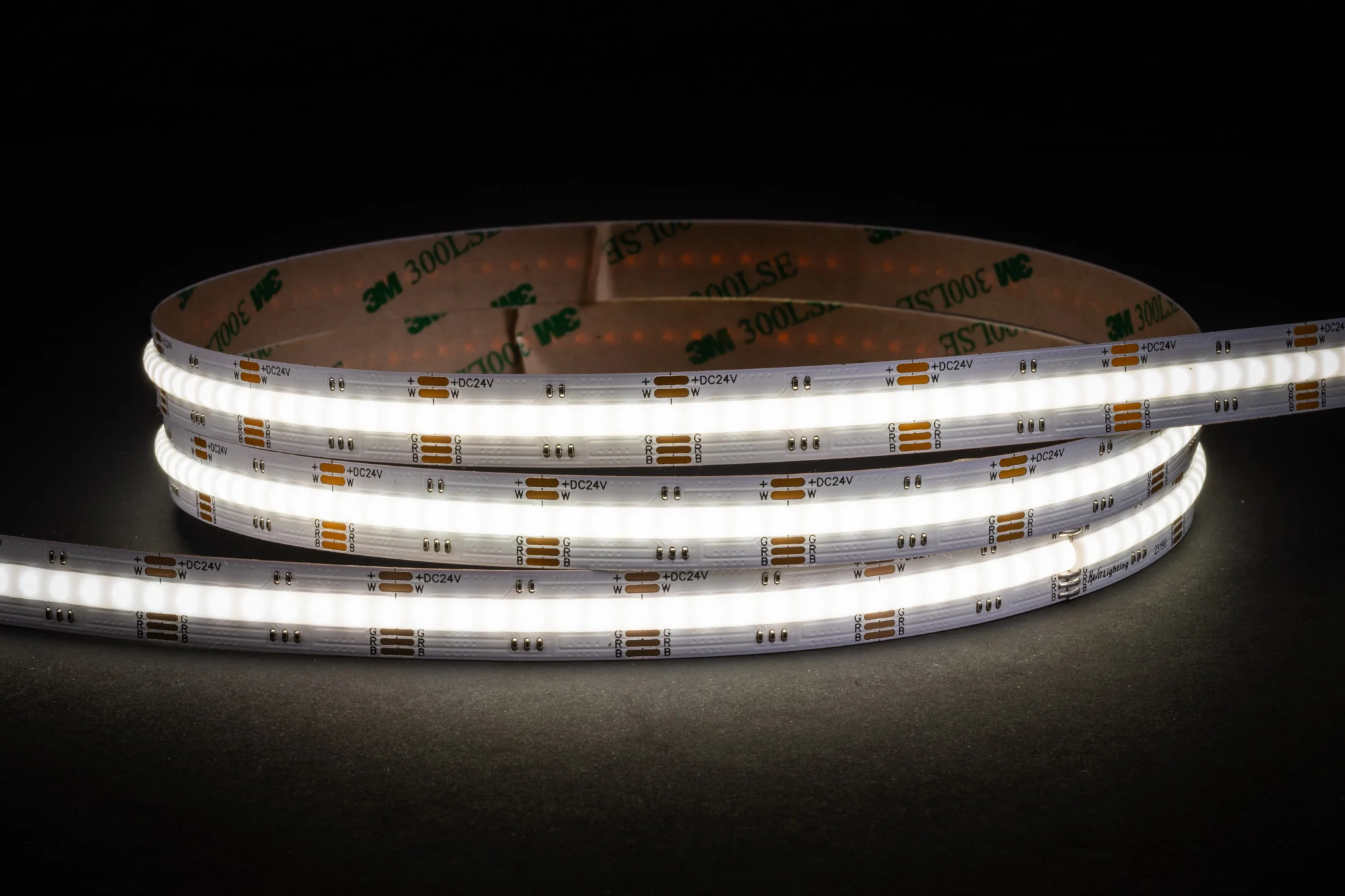

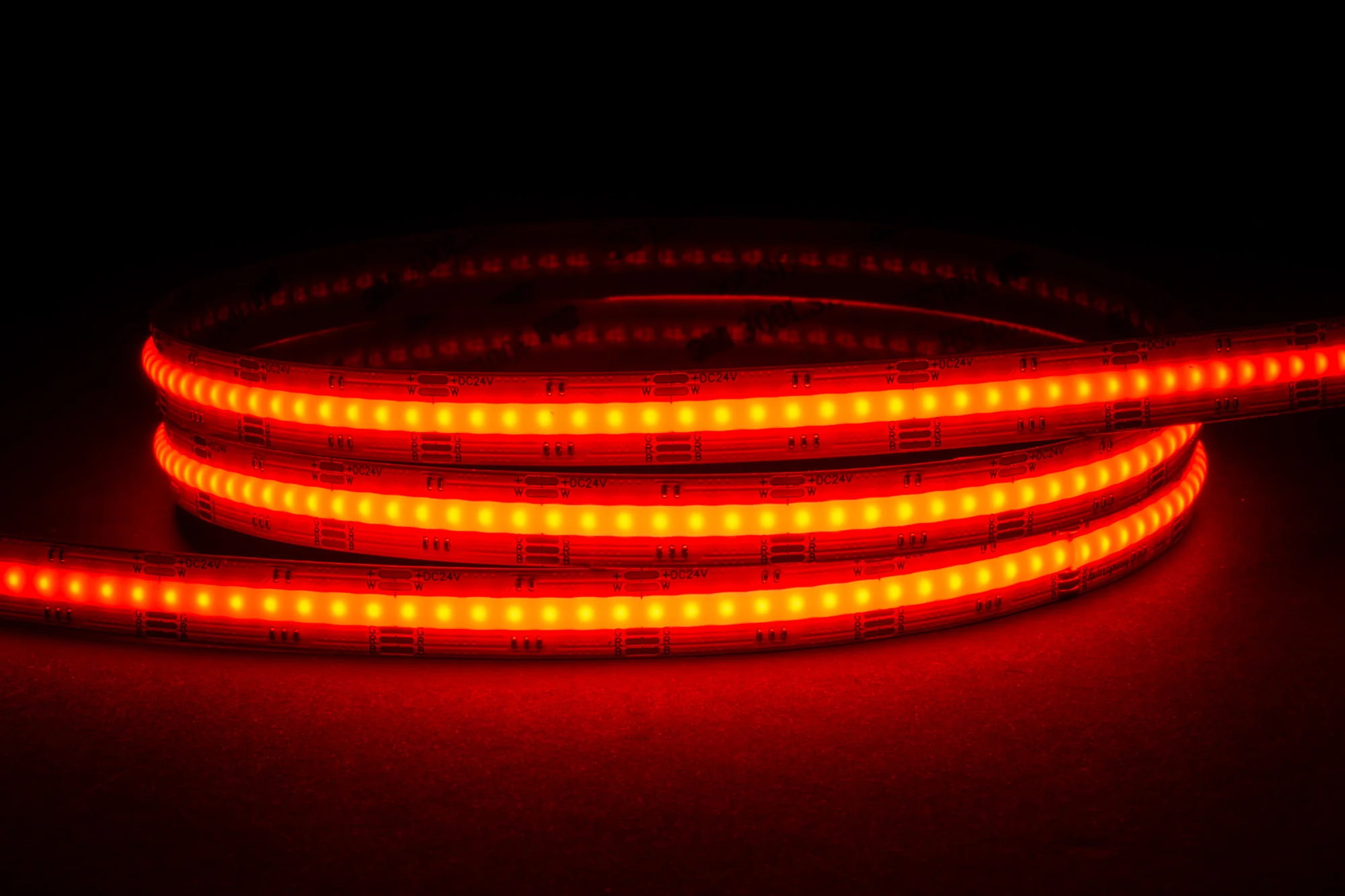

HV9761-IP20-896-RGBC - 20w IP20 COB RGBC LED Strip

• COB RGBC LED strip

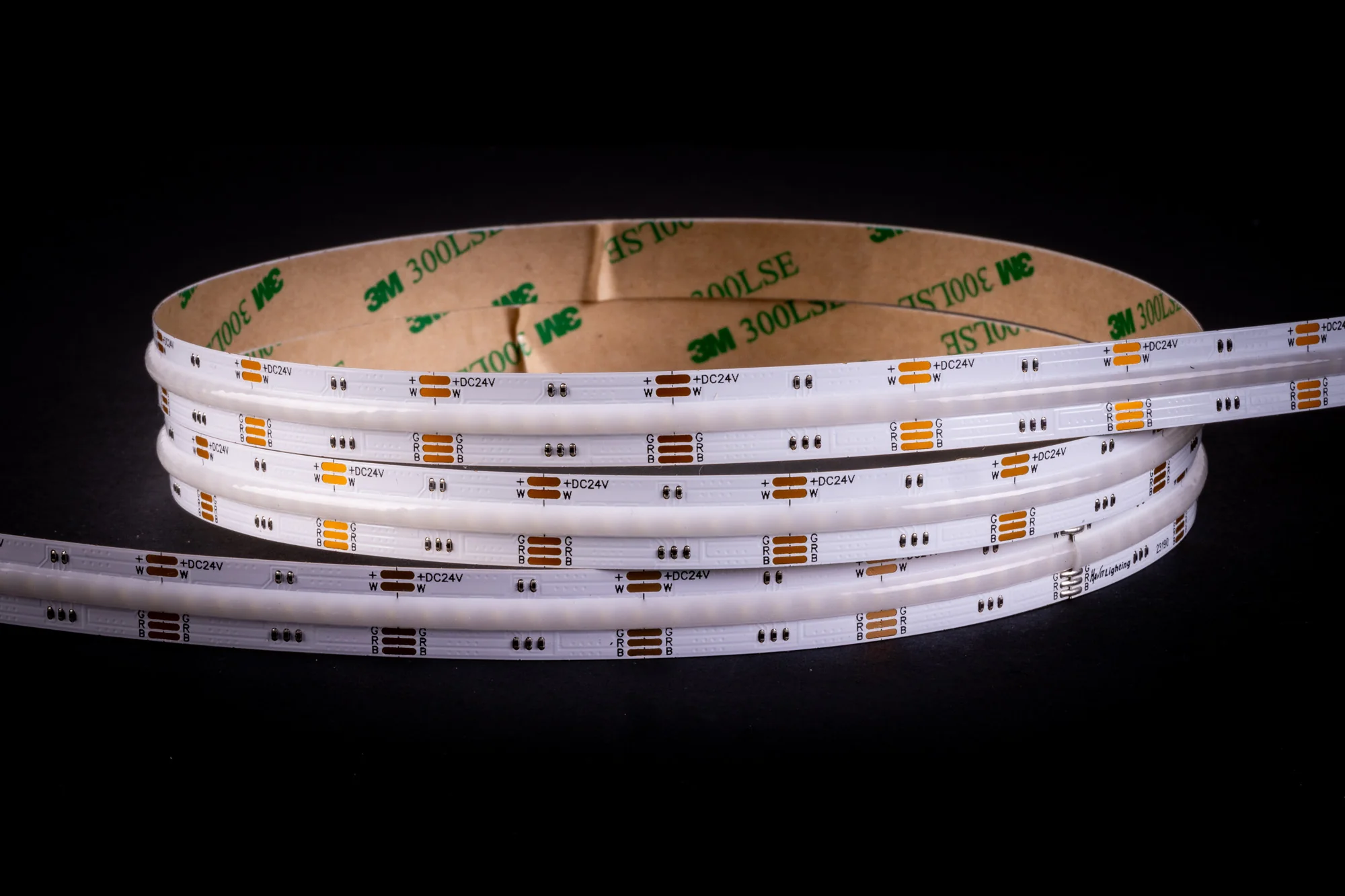

• 3m Double Side Tape for Easy Installation
• 20w per metre
• 500lm per metre
• Cutting Increments: 50mm

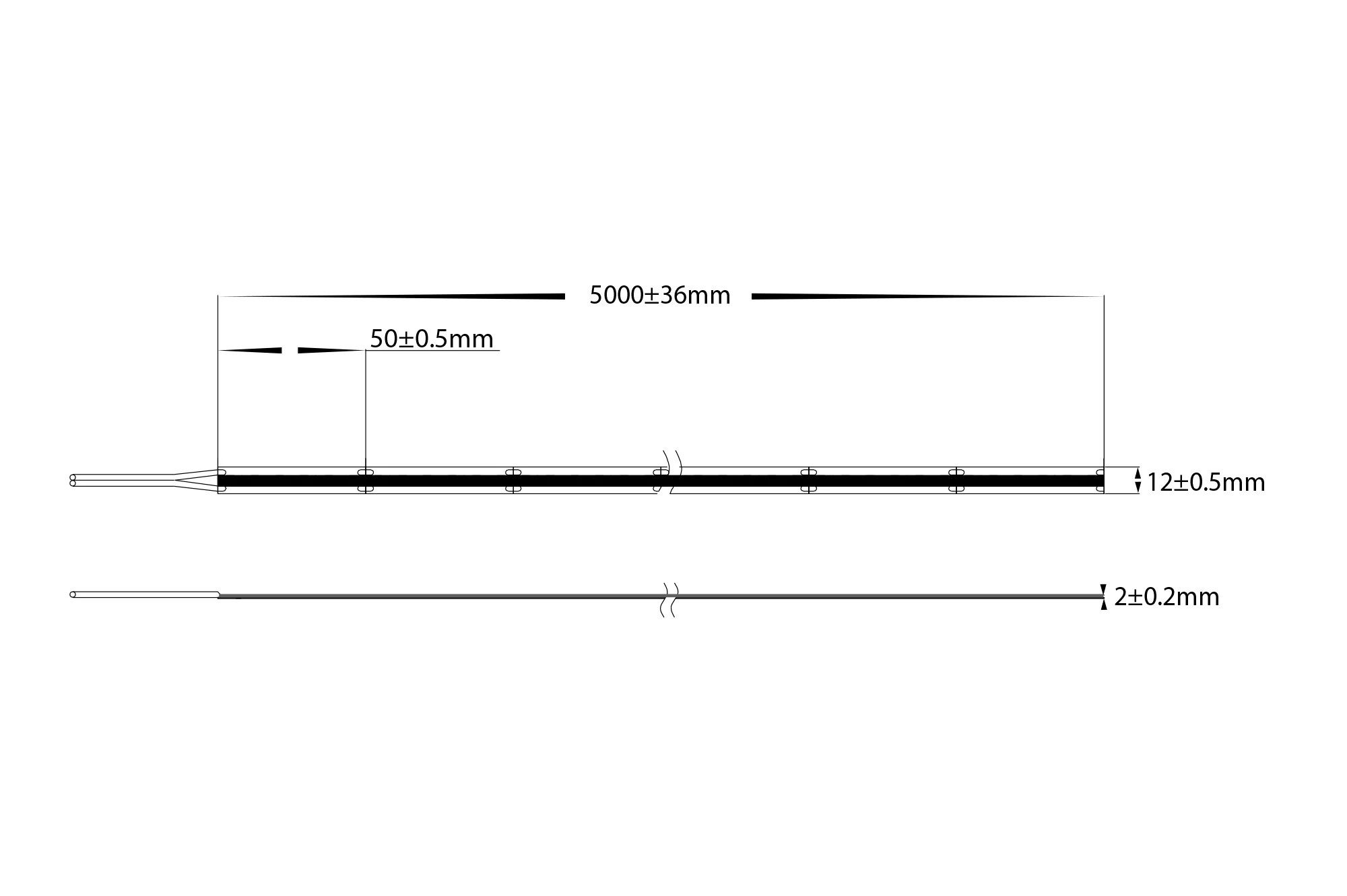

• Size: 12mm x 2mm
• Input voltage: 24v DC
• IP rating: IP20
• Supplied in either custom cut length or 30m Roll
• Maximum length: 5 metres
• 3 Years replacement warranty

Must be installed on aluminium heat dissipating surface for warranty purposes.

Product Information

Part Number	Length
HV9761-IP20-896-RGBC	Custom Length - Per Metre
HV9761-IP20-896-RGBC-30M	30m Roll

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
