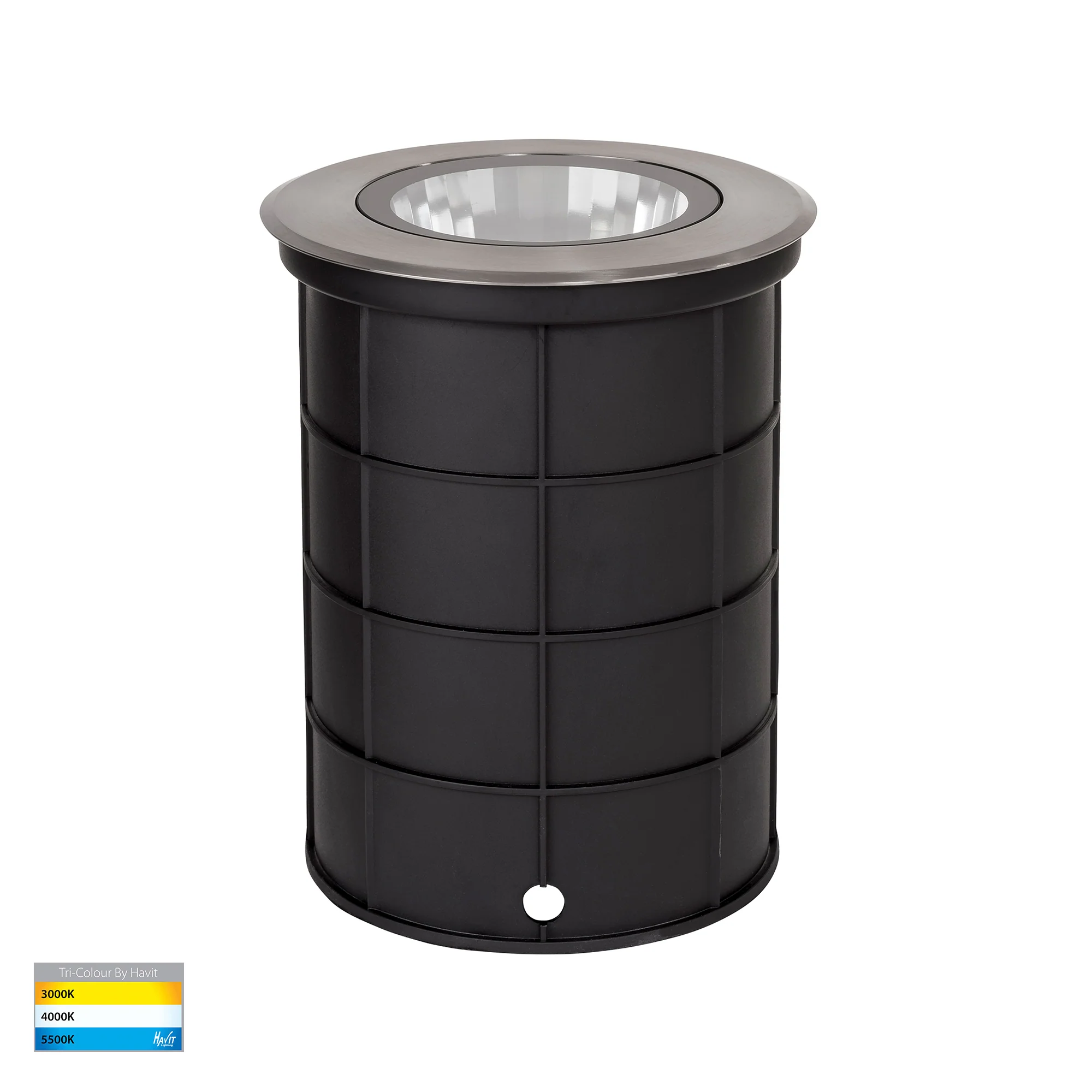

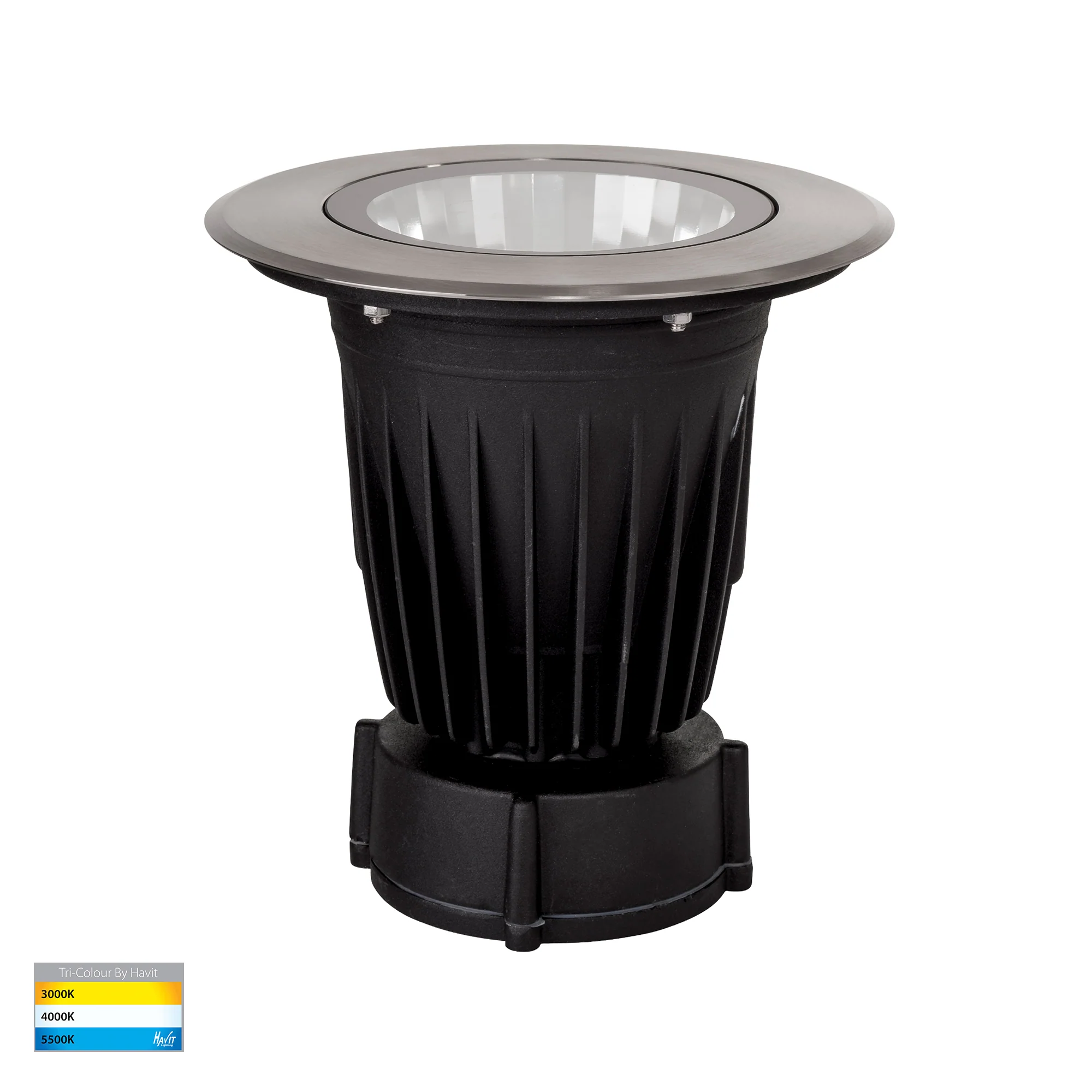

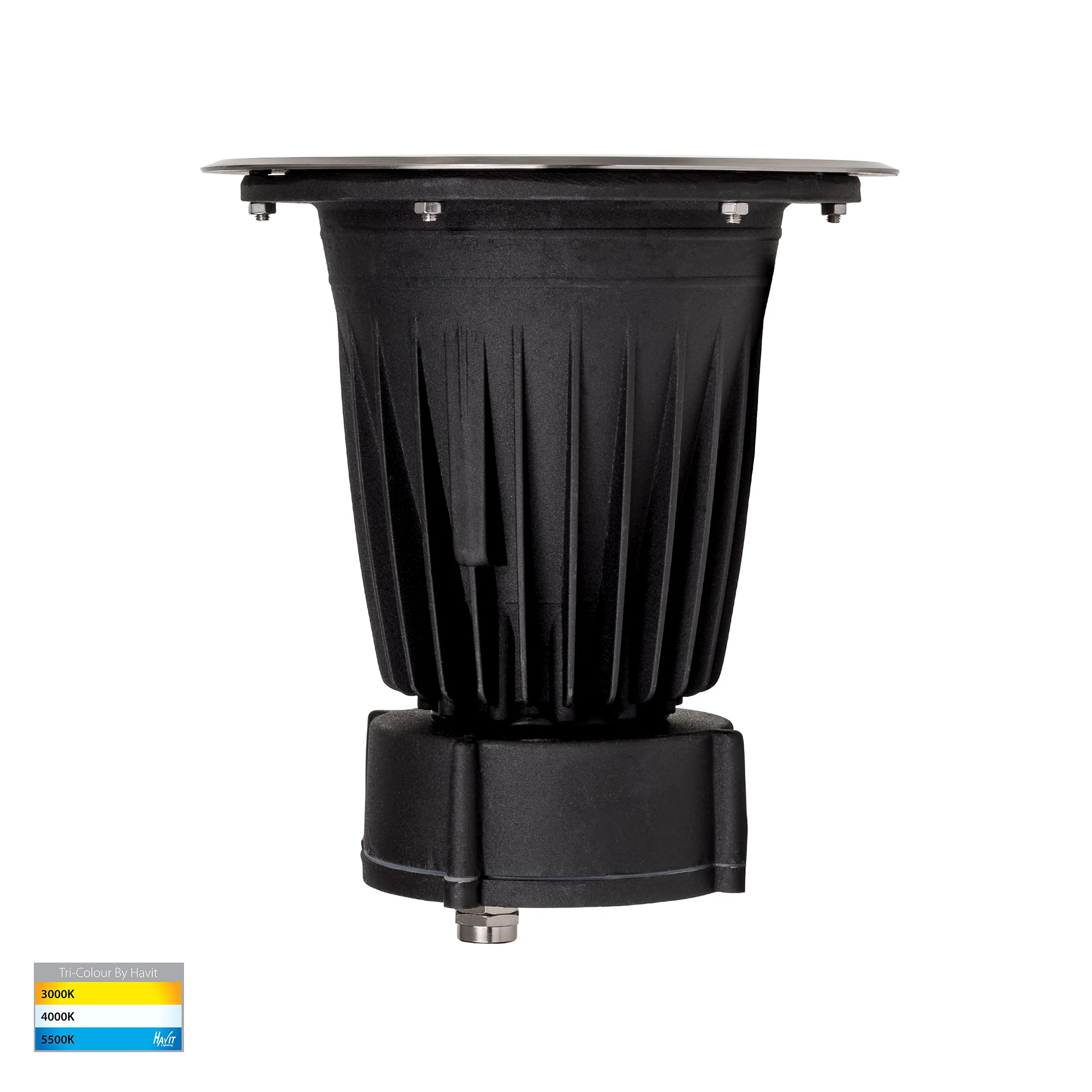

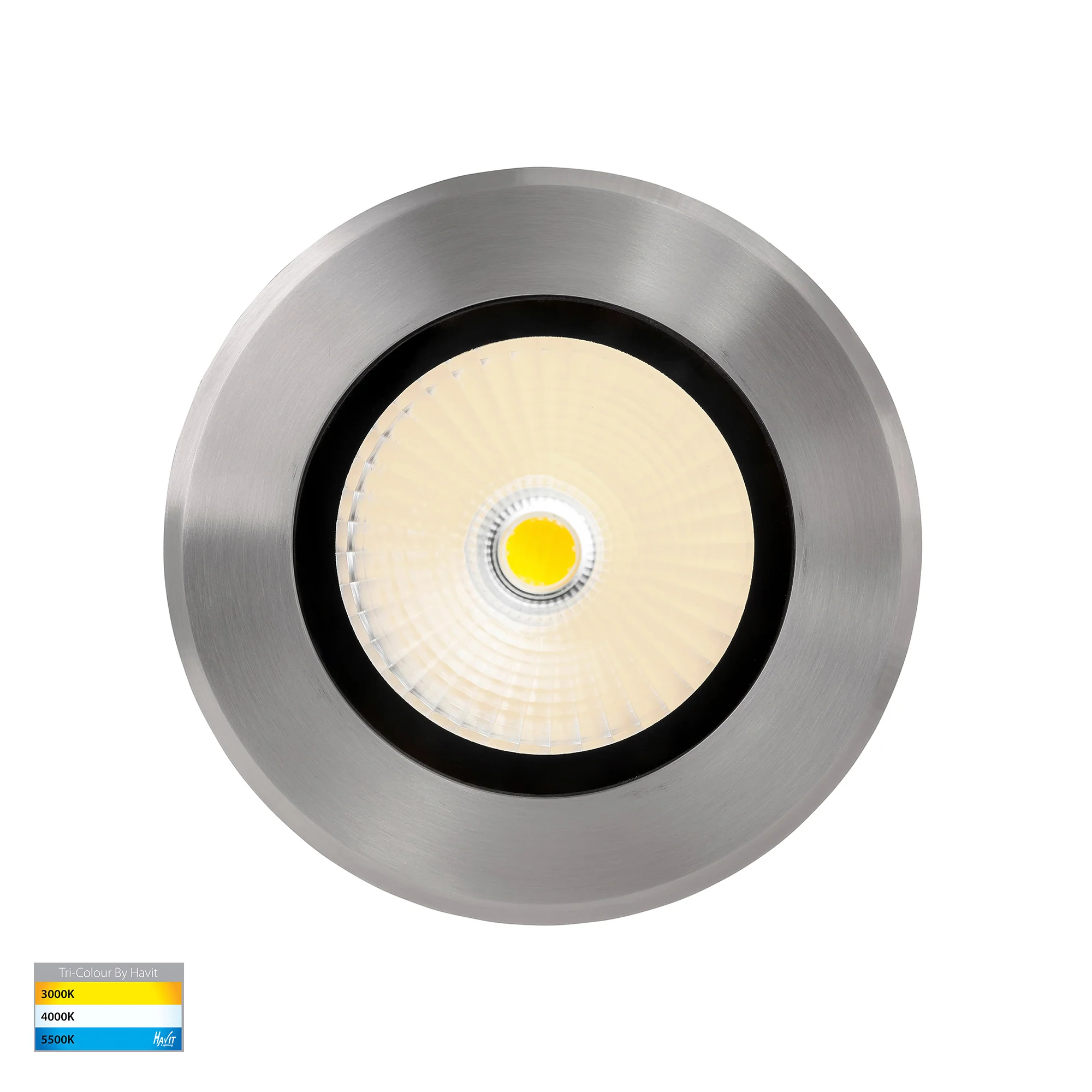

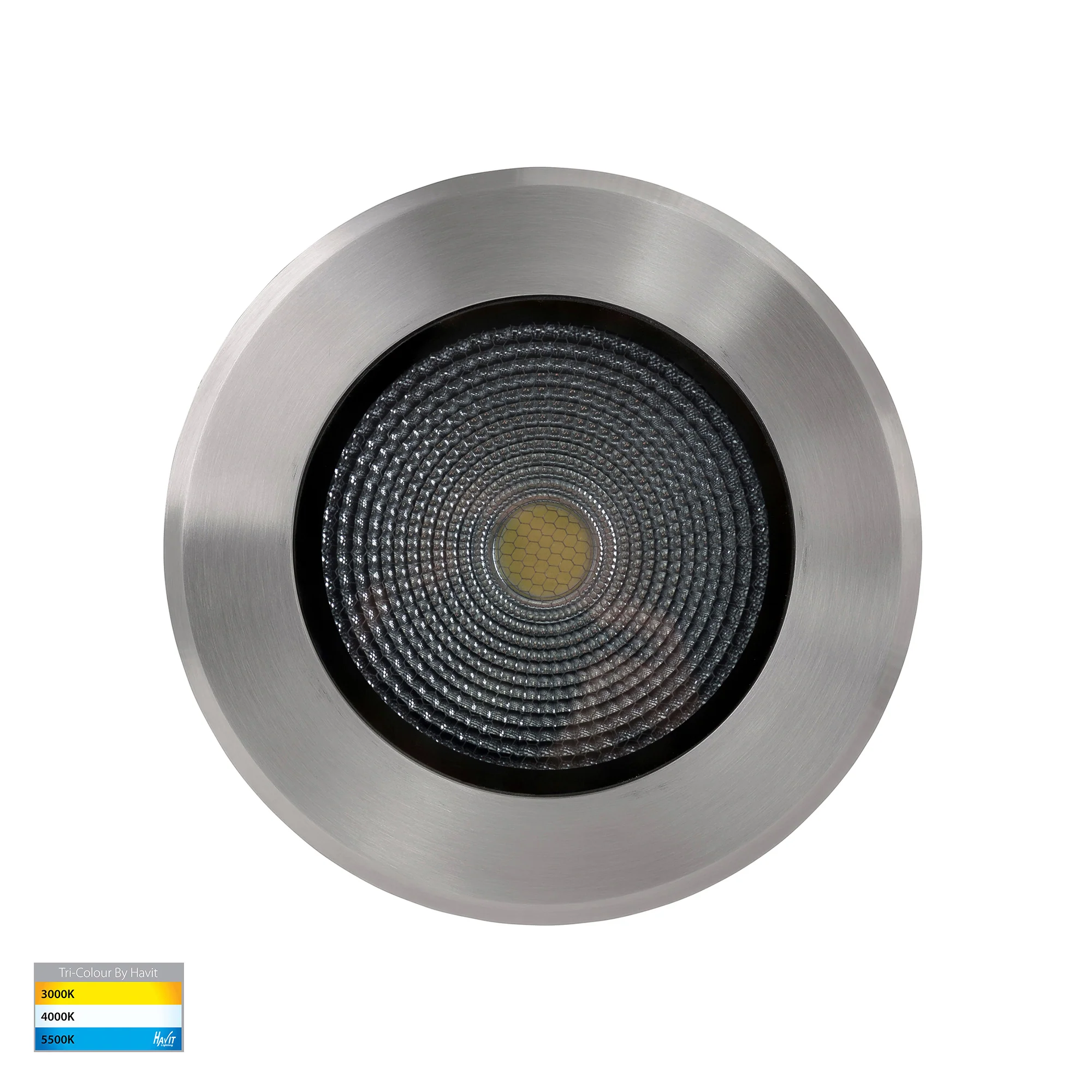

HV1834T-12V | HV1834T-240V - Klip 316 Stainless Steel 30w Narrow Beam LED Inground Light

• Recessed Inground Uplighter Round
• Stainless Steel 316 Marine Grade Cover
• Aluminium Body
• Flush Tempered Glass
• 60° Beam Angle
• Trafficable to 1000kg
• IP rating: IP67
• IK rating: IK10
• Input Voltage: Available in either 240v AC or 12v DC
• Built in 30w LED
• Tri Colour
• 3000k, 4000k, 5500k

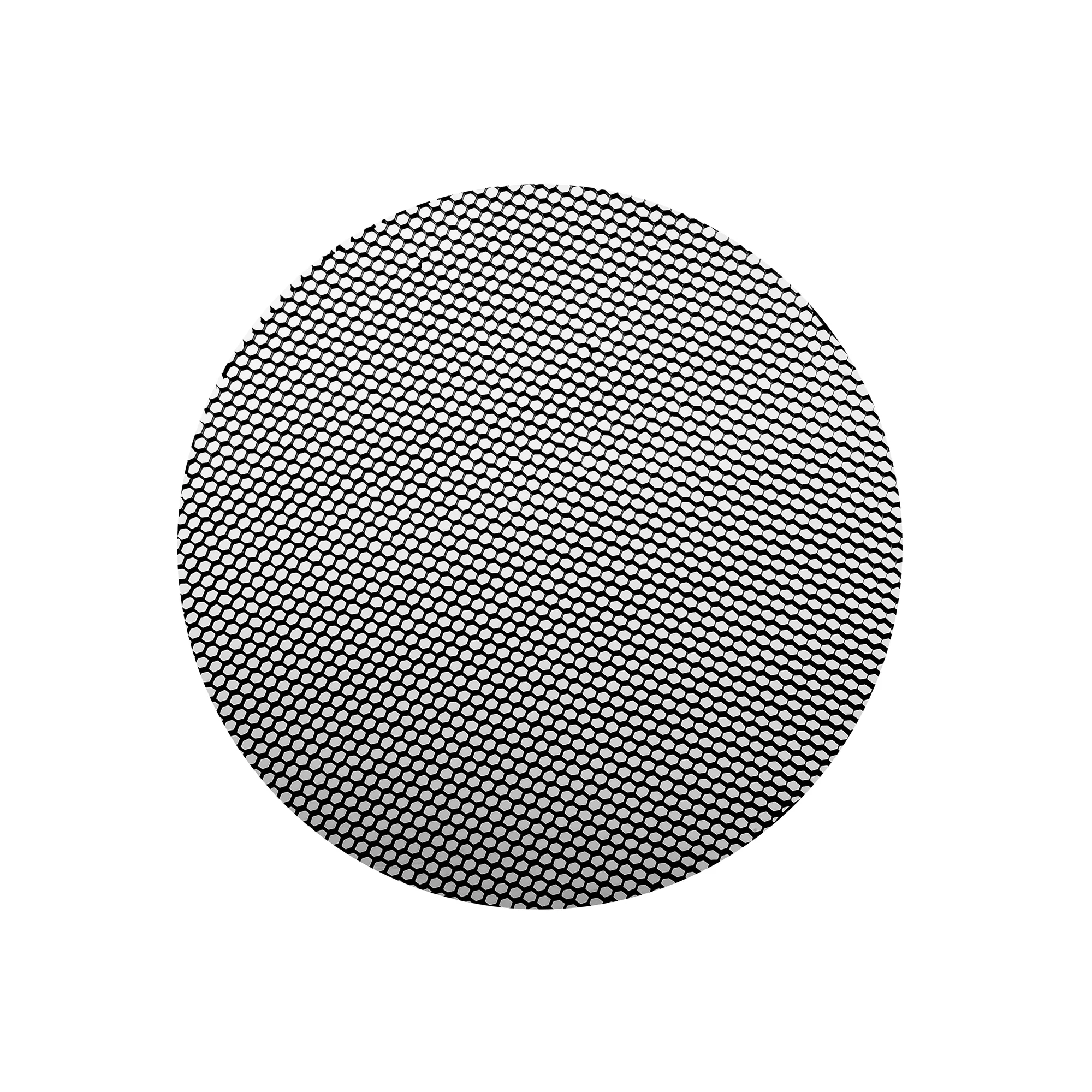

• Optional Honeycomb Lens - HV1834-HC

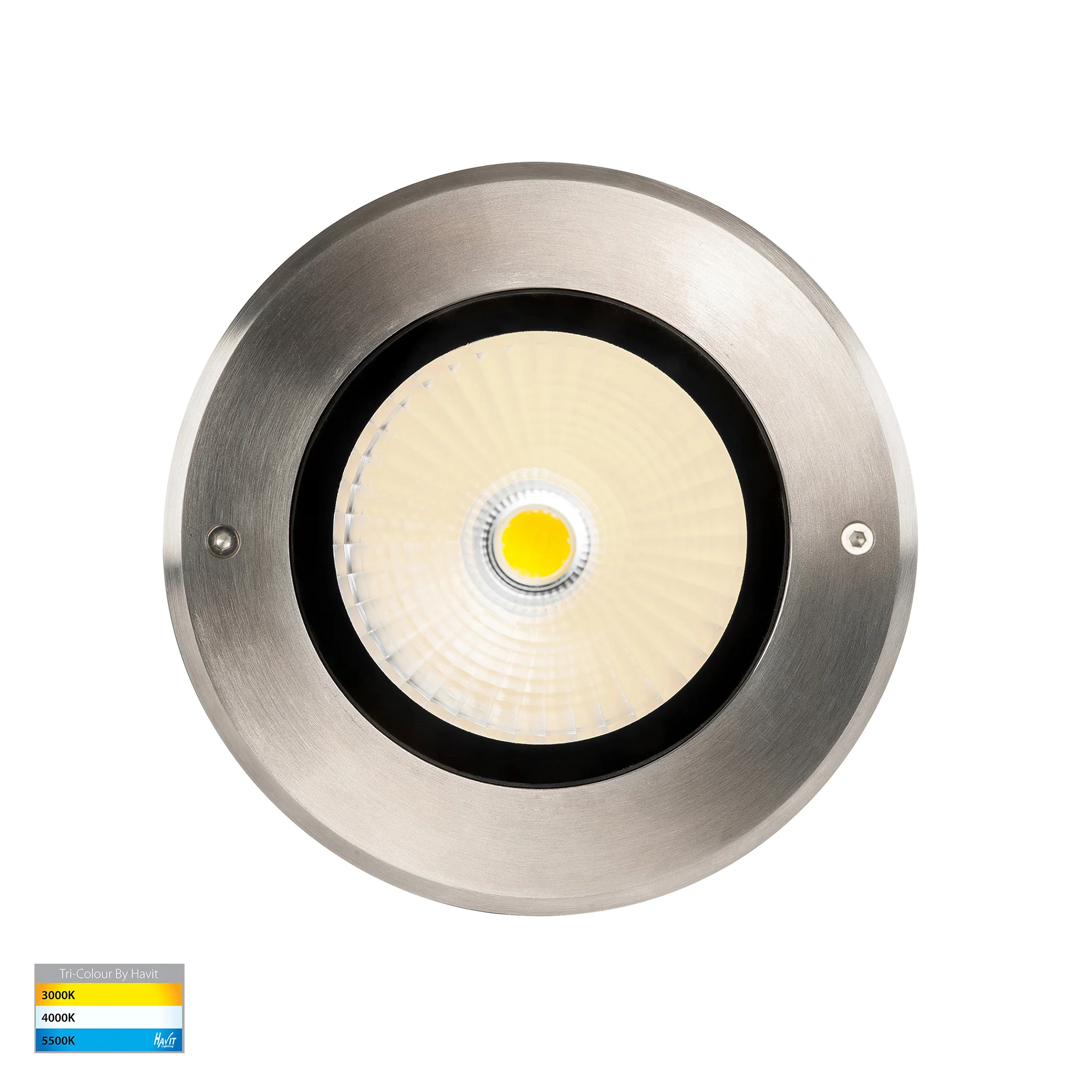

• Optional Security face with screws - HV1834-F-SH
• 3 Years Replacement Warranty (items ordered after 01/01/22)

12v Models must be used with a suitable 12v DC LED Driver - View Here

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV1834T-12V	3000k 4000K 5500K	2400lm 2550lm 2700lm	30w 12v DC Built in LED	12v DC
HV1834T-240V	3000k 4000K 5500K	2400lm 2550lm 2700lm	30w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
