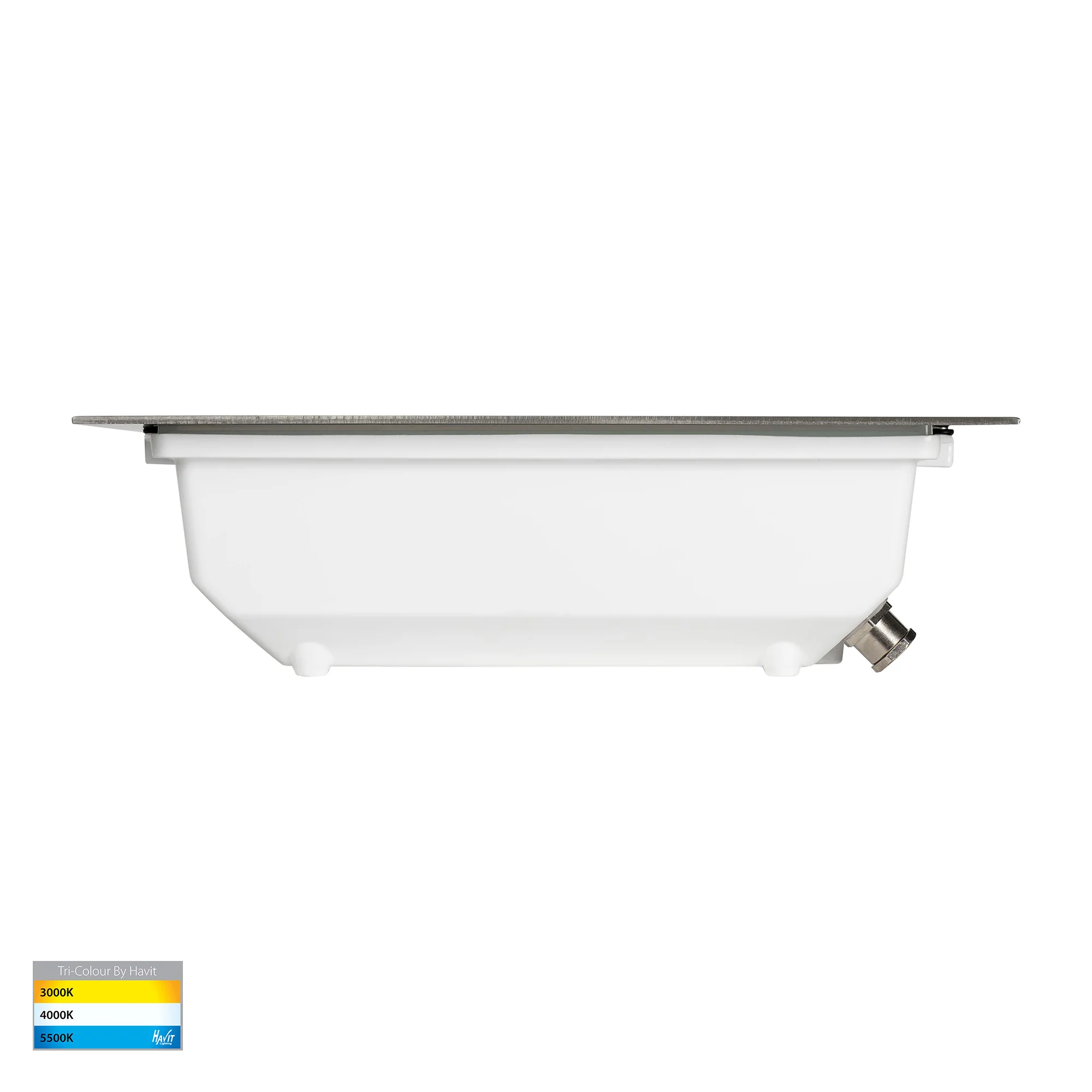

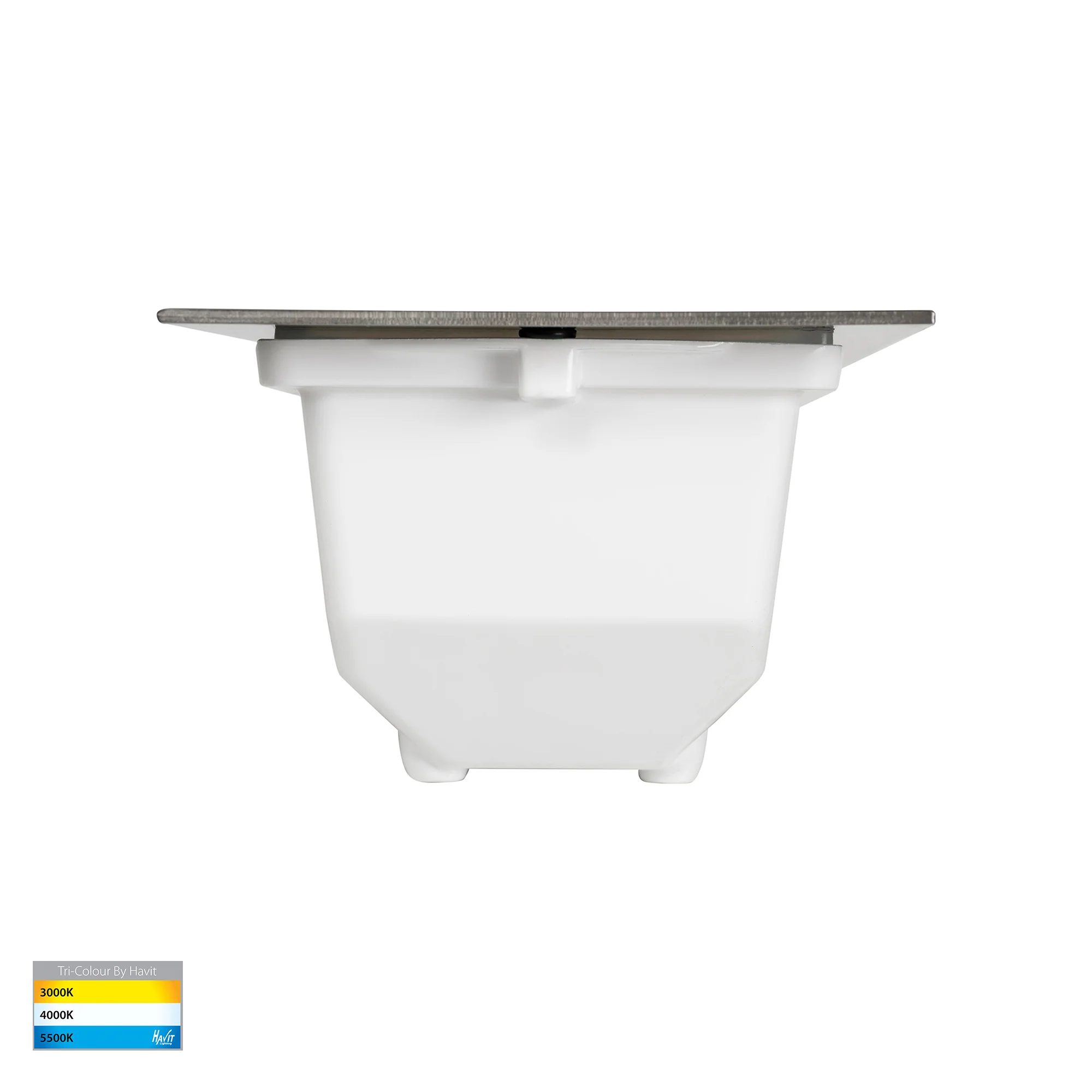

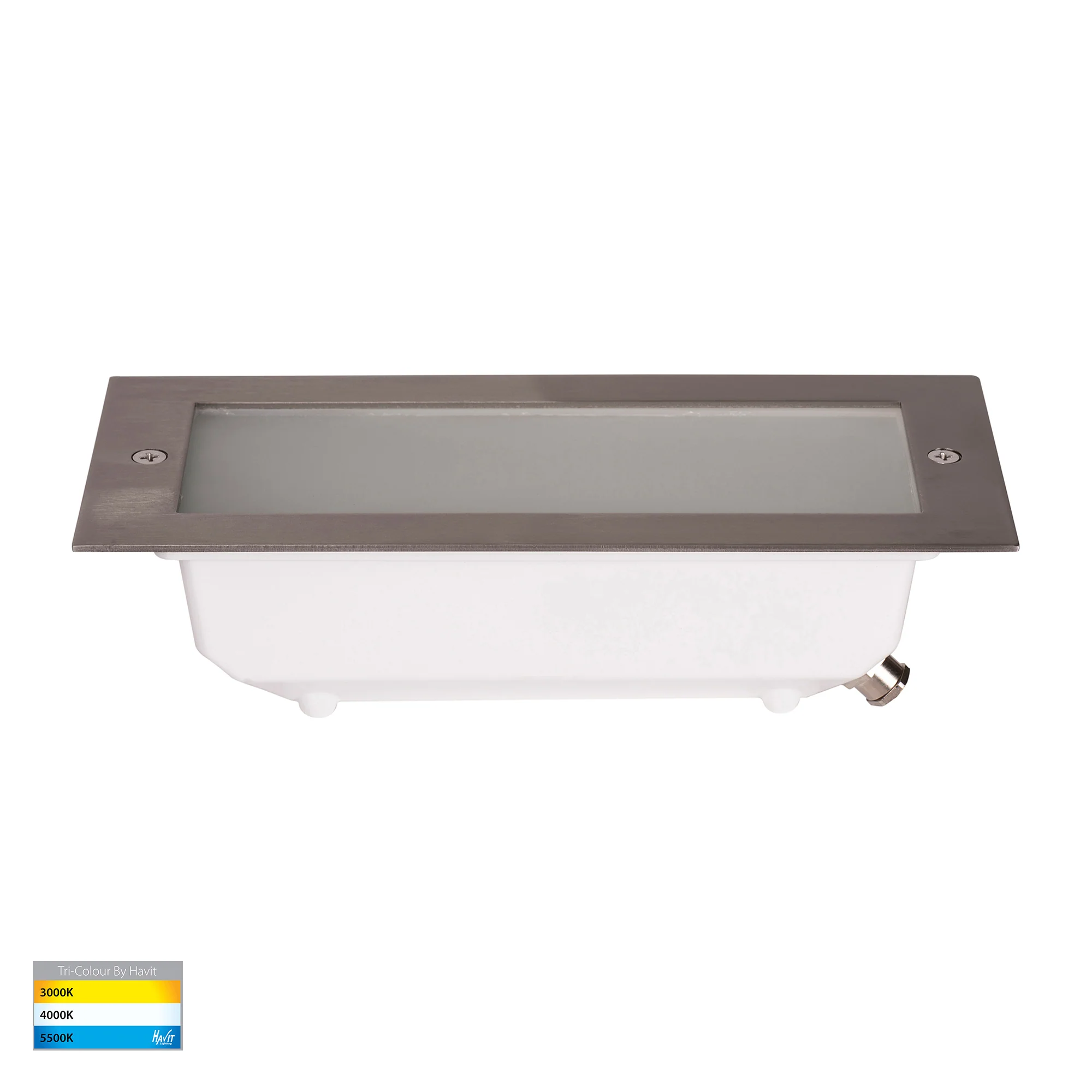

HV3003T-SS316 - Bata 316 Stainless Steel LED Brick Light

• Bata Recessed bricklight with plain face
• Stainless steel 316 marine grade face
• Aluminium body
• Tempered glass
• Triac Dimmable (240v Model only)
• Tri Colour
• 3000k, 4000k, 5500k

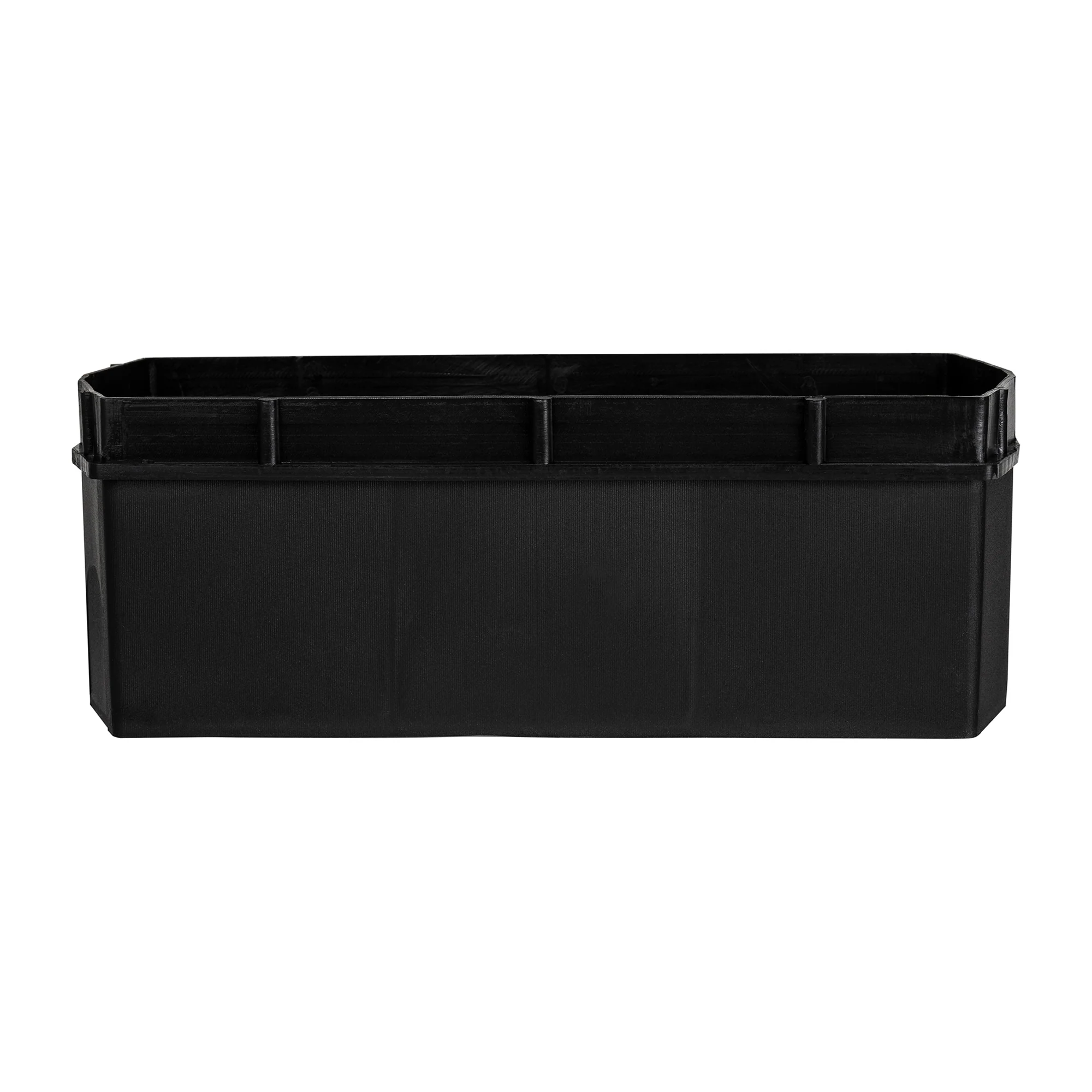

• Suitable for installation in wall using canister

• IP rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• Replaceable LED Panels
• Built in 10w LED

• 3 Years replacement warranty (items ordered after 01/01/22)

12v Model must be used with a suitable 12v DC LED driver - View Here

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3003T-SS316-240V	3000k 4000k 5500k	800lm 850lm 900lm	10w 240v Built in LED	240v
HV3003T-SS316-12V	3000k 4000k 5500k	800lm 850lm 900lm	10w 12v DC Built in LED	12v DC
