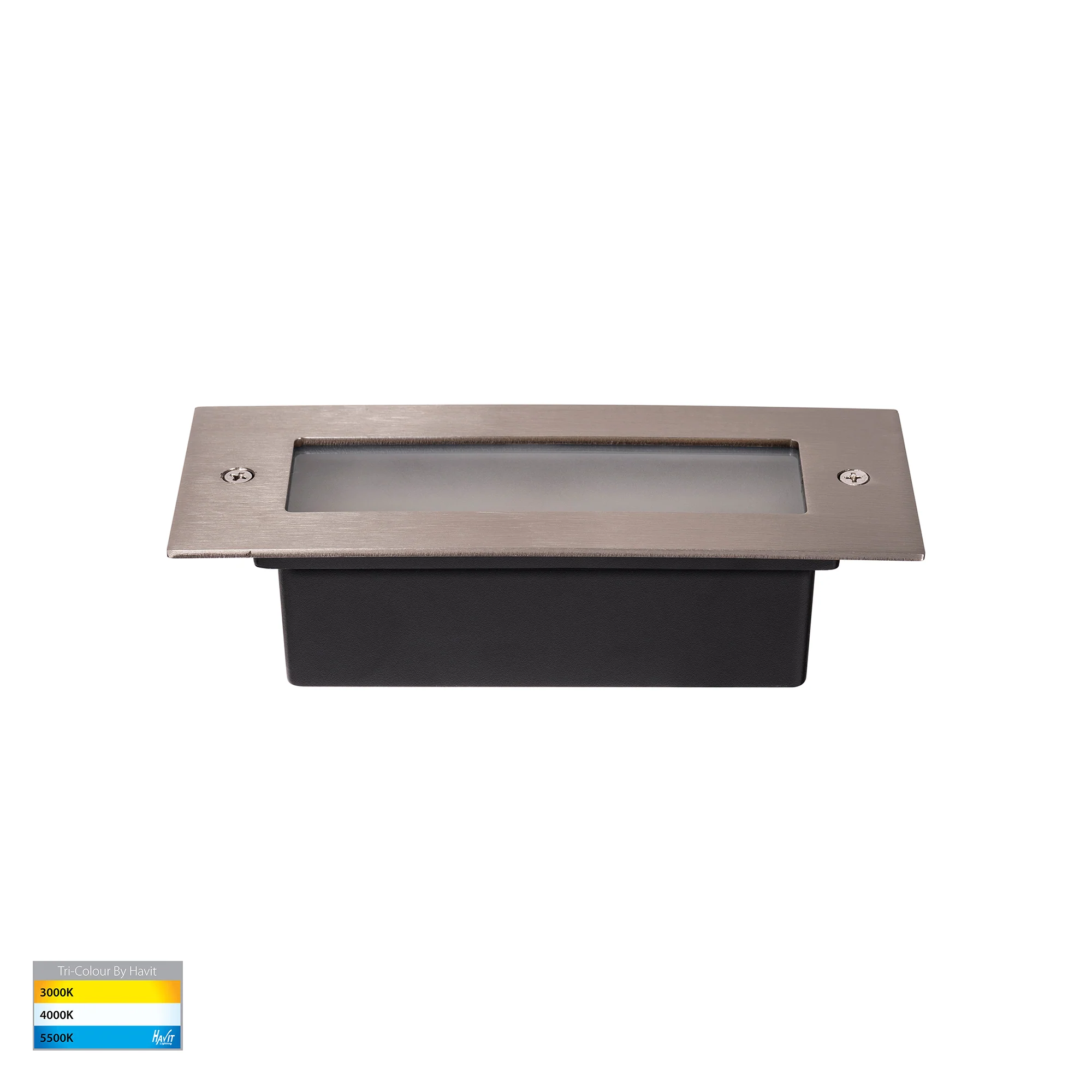

HV3005T-SS316-12V | HV3005T-SS316-240V - Bata 316 Stainless Steel 6w LED Brick Light

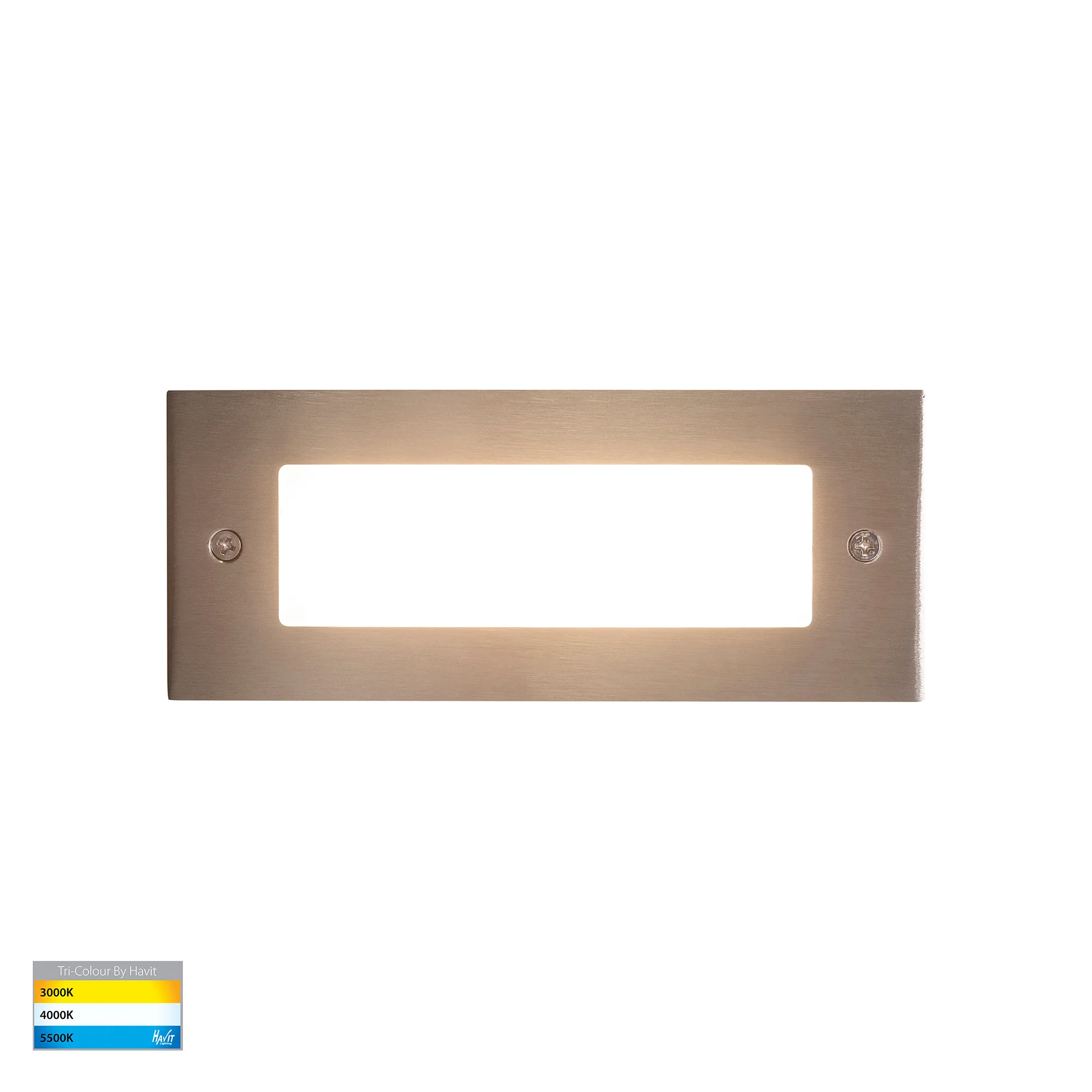

• Bata Recessed Brick light with plain face
• Stainless Steel 316 Marine Grade Cover
• Powder coated die-cast aluminium body

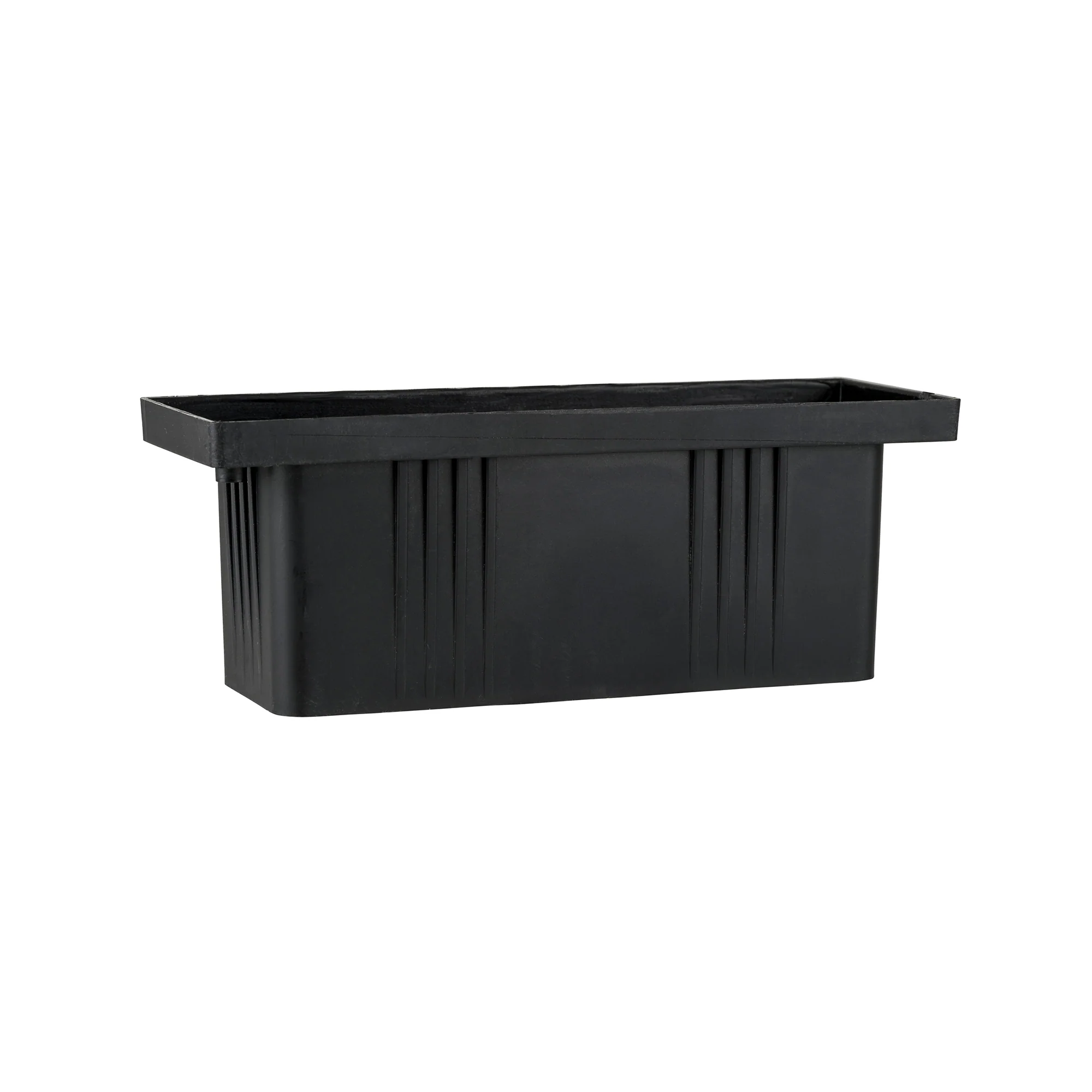

• Cutout with Canister: 159mm x 58mm
• Installation Depth: 60mm
• Frosted tempered glass
• Tri Colour - 3000k, 4000k, 5500k

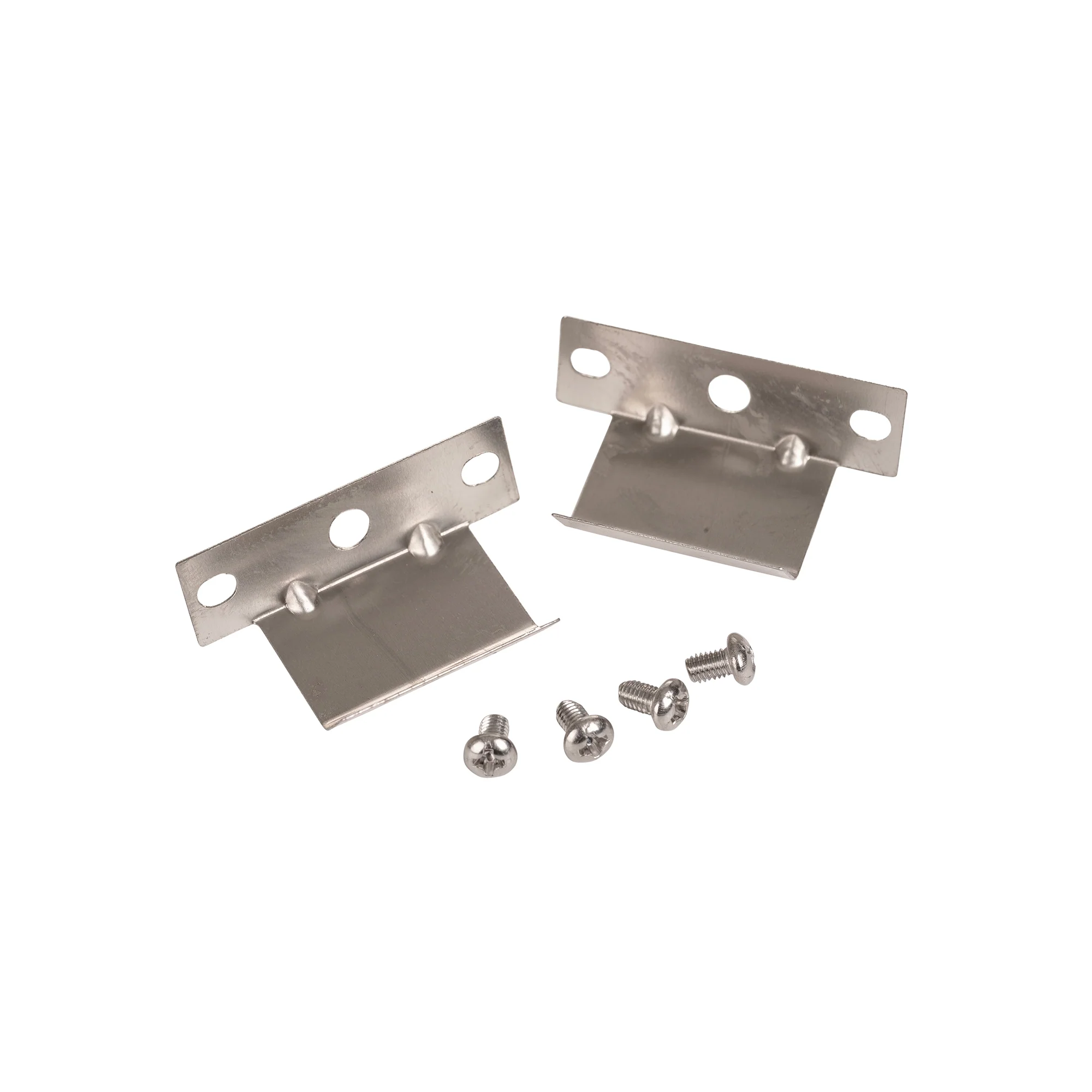

• Supplied with Clips for use in Gyprock Walls

• IP rating: IP54
• Input Voltage: Available in either 240v AC or 12v DC
• Replaceable LED Panels

• Built in 6w LED
• 3 Years Replacement warranty (items ordered after 01/01/22)

12v Model must be used with suitable 12v DC LED driver - View Here

All 316 Stainless Steel fittings require a maintenance routine - View Here for Product and Instruction Video

Product Information

Part Number	Colour Temp	Lumens	Included LED	Input Voltage
HV3005T-SS316-12V	3000k 4000k 5500k	480lm 510lm 540lm	6w 12v DC Built in LED	12v DC
HV3005T-SS316-240V	3000k 4000k 5500k	480lm 510lm 540lm	6w 240v Built in LED	240v

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
